Gladiator Series 15" Two-Way
and 18" Subwoofer

Key Features:

• 3-way system design using one amplifier channel allows
2-way full-range + sub to run on one amp channel
• 131 dB Max SPL
• RoadWood™ Enclosures are rugged and lightweight
• Steel pole included
• Steel grilles
Gladiator 1152-Way:
• High output EV-15FR 15" woofer
• 60° x 40° controlled coverage
• DH2010 compression driver for extended
HF and reliability
• High sensitivity, 99 dB
• 400 Watts continuous, 1,600 Watts peak power rating

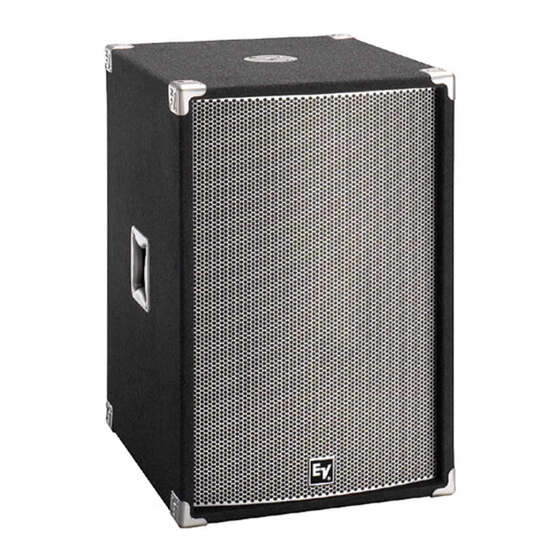

Gladiator 118Sub:
• EVS-185 18" woofer with high power
4-layer voice coil
• Extended low-end response to 32 Hz
• Built-in crossover for use as 3-way system
• 400 Watts continuous, 1,600 peak power rating
• Boosts LF output to 134 dB
The Electro-Voice
®
Gladiator G115 and G118 are
designed to reproduce the latest music. The perfect
system for mobile DJ's... powerful,
extended LF response coupled with EV's
great HF and unmatched vocal clarity
due to RMD
(Ring-Mode Decoupling).
The newly developed EV-Series woofers and crossover
networks reliably produce very high SPL's all night.
Roadwood enclosures, steel grilles, high impact corners,
and comfortable handles complete the package for years of
reliable service.
EV's innovative system design allows one amplifier
channel to drive both the sub and the full-range speaker.
No additional crossovers or amps required for a true 3-way
system.
The EV Q66 amplifier, with up to 850W per channel, is the
perfect amp for a stereo 3-way rig with one G118 and one
G115 per side.

Advertisement

loading

  Related Manuals for Electro-Voice Gladiator Series

  Summary of Contents for Electro-Voice Gladiator Series

  • Page 1: Key Features

    No additional crossovers or amps required for a true 3-way system. The EV Q66 amplifier, with up to 850W per channel, is the perfect amp for a stereo 3-way rig with one G118 and one G115 per side.
  • Page 2: Technical Specifications

    Frequency Response (Two Way): Frequency Response (Subwoofer): G115 / G118 Technical Specifications Freq. Response (-3 dB) 46 Hz - 20 kHz/42 Hz - 160 Hz Freq. Range (-10 dB) 35 Hz - 20 kHz/32 Hz - 600 Hz Power Handling, Continuous 400W Frequency Response (Combined): Power Handling, Program...
