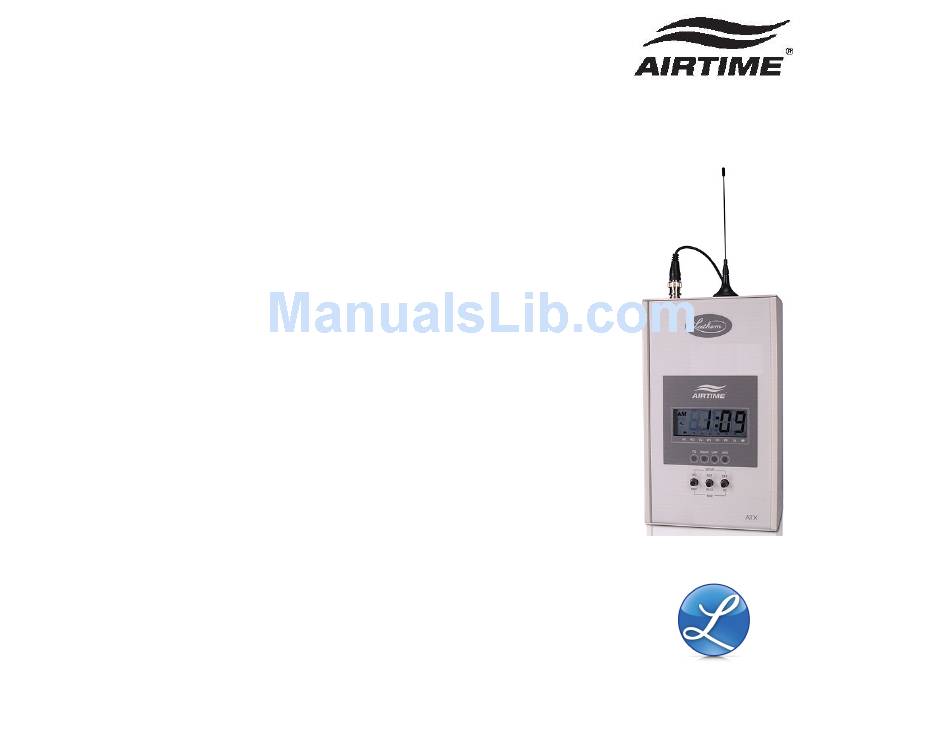

- Page 1 Model ATX6 Wireless Wall Clock Transceiver Installation & User's Guide Copyright © 2009 Lathem Time Corporation. All rights reserved.
- Page 2 ATX6 Installation and User Guide AirTime, Lathem and the Lathem logo are registered trademarks of Warranty Lathem Time Corporation. Other product names mentioned in this manual may be trademarks of their respective companies and are hereby acknowledged. Limited One-Year Limited Warranty...
-
Page 3: Table Of Contents
Synchronizing a LTR0 or DWA-S to an ATX6 ........22 Synchronizing a DDC2/4-RS to an ATX6..........22 Synchronizing the ATX6 to a LTR-GPS..........23 Synchronizing a LTRX-512 to ATX6 using Sync Relay closure ....24 Synchronizing the ATX6 to an External Relay Closure ......25 Specifications ................26 Warranty................28... -
Page 4: Introduction
FCC ID: UP3ATX6 Individual License Required The ATX6 can be set to transmit its radio signal at any of several frequencies at either a 4 Watt or 6 Watt output power level. With an optional external amplifier the signal can be boosted to 20 Watts. -
Page 5: Case Design
ATX6 Installation and User Guide ATX6 Installation and User Guide Case Design Synchronizing the ATX6 to an External Relay Closure (Program Synchronization “SYN”, verify J7 & J8 are Closed) Metal Enclosure Function Buttons Verify Jumpers are “Closed” as shown for Sync Input. -
Page 6: Installation
ATX6 Installation and User Guide ATX6 Installation and User Guide Installation: Synchronizing a LTRX-512 to ATX6 using Sync Relay 1. Choose an appropriate location to install the ATX6 on a closure wall. (Program ATX6 Relay closure at 12:00AM) a. If you intend to use the ATX-GPS accessory to... - Page 7 ATX6 Installation and User Guide ATX6 Installation and User Guide 3. Mount the ATX6 on a suitable wall, according to the Synchronizing the ATX6 to a LTR-GPS following steps. If mounting near a ceiling, make sure the top holes are at least 2”...
- Page 8 ATX6 Installation and User Guide ATX6 Installation and User Guide 4. Attach the UHF Antenna to the ATX6’s BNC Connector and place it on top of the ATX6 or on a shelf within 12 Synchronizing a LTR0 or DWA-S to an ATX6 feet.
-
Page 9: Atx6 Quick Reference Guide
ATX6 Installation and User Guide ATX6 Installation and User Guide 10. Connect the ATX6 to an AC Power Outlet using the When attaching wires to the terminal block the ATX6 should be integral cable. in a vertical position. If the ATX6 is horizontal the terminal block will not lock down the wires. - Page 10 If incorrect, an “Err” message will be displayed. Press the Set button to re-enter your password. Press Inc or Next to abort the setup. Synchronizing the ATX6 to the ATX6-GPS Receiver Month (01 ~ 12) (Program Synchronization “GPS”) Use the INC button to advance through the values.
-
Page 11: Hours (00 ~ 12 Am/Pm)
ATX6 through an external amplifier correcting Wireless Wall number in the two left digit positions, and the parameter value Clocks (Requires function 19 of ATX6 be set to “1”) in the two right digit positions. The parameters are as follows:... -
Page 12: Time Zone (-12 ~ +12)
Time Reference Source (rtc, GPS, Air, 485, Use the INC button to advance through the values. Select which Time Reference is to be used by the ATX6. Press the SET button when the correct value is displayed. ATX-GPS to ATX6 correcting Wireless Wall Clocks and LTR Master... -
Page 13: Spring Dst Week: (1,2,3,4,L)
Default is ‘02’ (2 Sunday in March). Press SET when the correct seconds. value is displayed. The ATX6 transmits one (1) RC synchronization signal to all RC- series Wall Clocks, as indicated by illumination of the UHF Fall DST Month: (01 ~12) Indicator. -
Page 14: Time Slot: (A Or 0~9)
“Transmission Slots” for each Transceiver. The Manual: ATX and ATX6 Transceivers can be set to transmit on one of ten Transmission Slots, numbered 0 through 9. When manually Receive Mode is entered by pressing and holding RECV (NXT) for selecting a Transmission Slot following this chart will often 2 seconds, and is evidenced by the ‘~’... -
Page 15: Uhf Power Level (Lo / Hi)
Sync Pulse Hrs (00 ~ 12 AM/PM) When not in Receive Mode (automatically or manually initiated) If an external system will be synchronized to the ATX6 by a “Dry the ATX6 will transmit the RC radio signal each odd minute (if RC Contact”... -
Page 16: P Password (000 ~ 999)
Time Reference (Set-Up next digit. The SET button will enter your final selection. If you parameter # 7). If an external Time Source is selected, the ATX6 do not wish to change the current Password, simply press SET.
