Installation

English ... 10

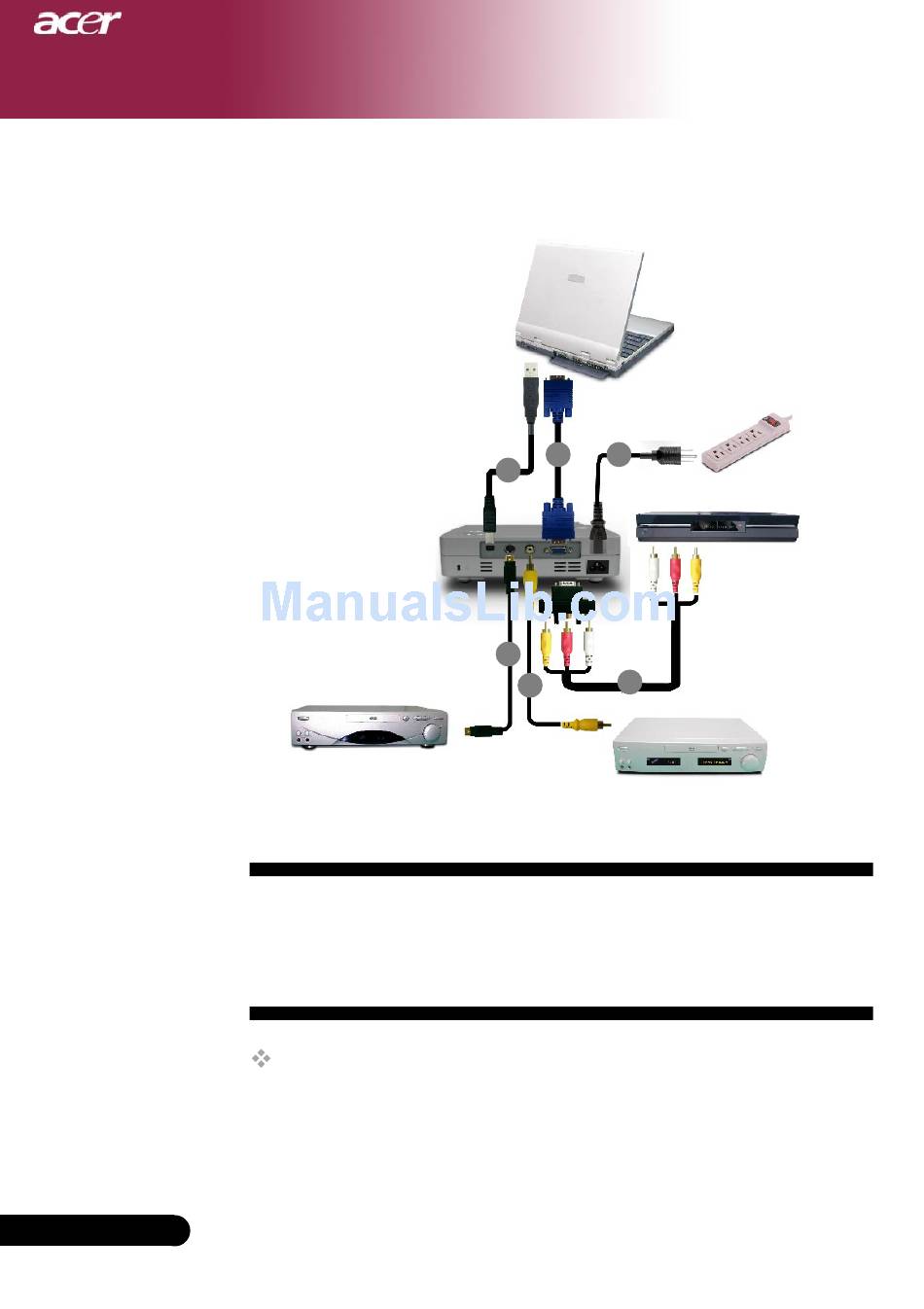

Connecting the Projector

S-Video Output
1. .................................................................................................................... Power Cord
2. ...................................................................................................................... VGA Cable
3. ................................................................................................. Composite Video Cable
4. ....................................................................................................................... USB Cable
5. .......................................................................... VGA to Component/HDTV Adapter
6. ................................................................................................................. S-Video Cable
To ensure the projector works well with your computer, please set the
display mode of your graphic card less than or equal to 1024 X 768
resolution. Make sure the timing of the display mode is compatible with the
projector. Refer to the "Compatibility Modes" section on page 33.
USB
RGB
2 1
4
6
5
3
Video Output
DVD Player,
Settop Box,
HDTV receiver
