ACRYLUX 60" x 32" SHOWER KIT
Shower Kit With Walls:
❑
6032Y1K.ST-R Shower Kit With Walls, Right Drain
❑
6032Y1K.ST-L Shower Kit With Walls, Left Drain
❑
6032Y1K.ST-C Shower Kit With Walls, Center Drain
Includes the following components:
Shower Base Features:
• 6032Y1.ST-R/L/C Shower Base
• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Single threshold with tiling flange
Nominal Dimensions:
59-7/8" x 31-1/4" x 5-1/8"
(1521 x 794 x 130mm)
Door Features:
• 6000Y1.STE5.213 By-Pass Bath Door
• Tempered safety glass
• Silver Shine frame finish
• Rain privacy glass
Nominal Dimensions:
57-1/2" to 59-1/2" x 65-7/8"
(1461 to 1511 x 1673mm
Wall Set Features:
• 6032Y1.SW Bath Wall Set
• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Mounts directly to studs
• Caulk-less installation
Nominal Dimensions:
60" x 32" x 70" tall
(1524 x 813 x 1778mm)
Shower Kit Without Walls:
❑
6032Y1KB.ST-R Shower Kit Without Walls, Right Drain
❑
6032Y1KB.ST-L Shower Kit Without Walls, Left Drain
❑
6032Y1KB.ST-C Shower Kit Without Walls, Center Drain
• Same as above but without wall set
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ANSI Z97 for Safety Glazing Materials
• ANSI Z124.1.2 for Plastic Bathtubs and Shower Units
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.

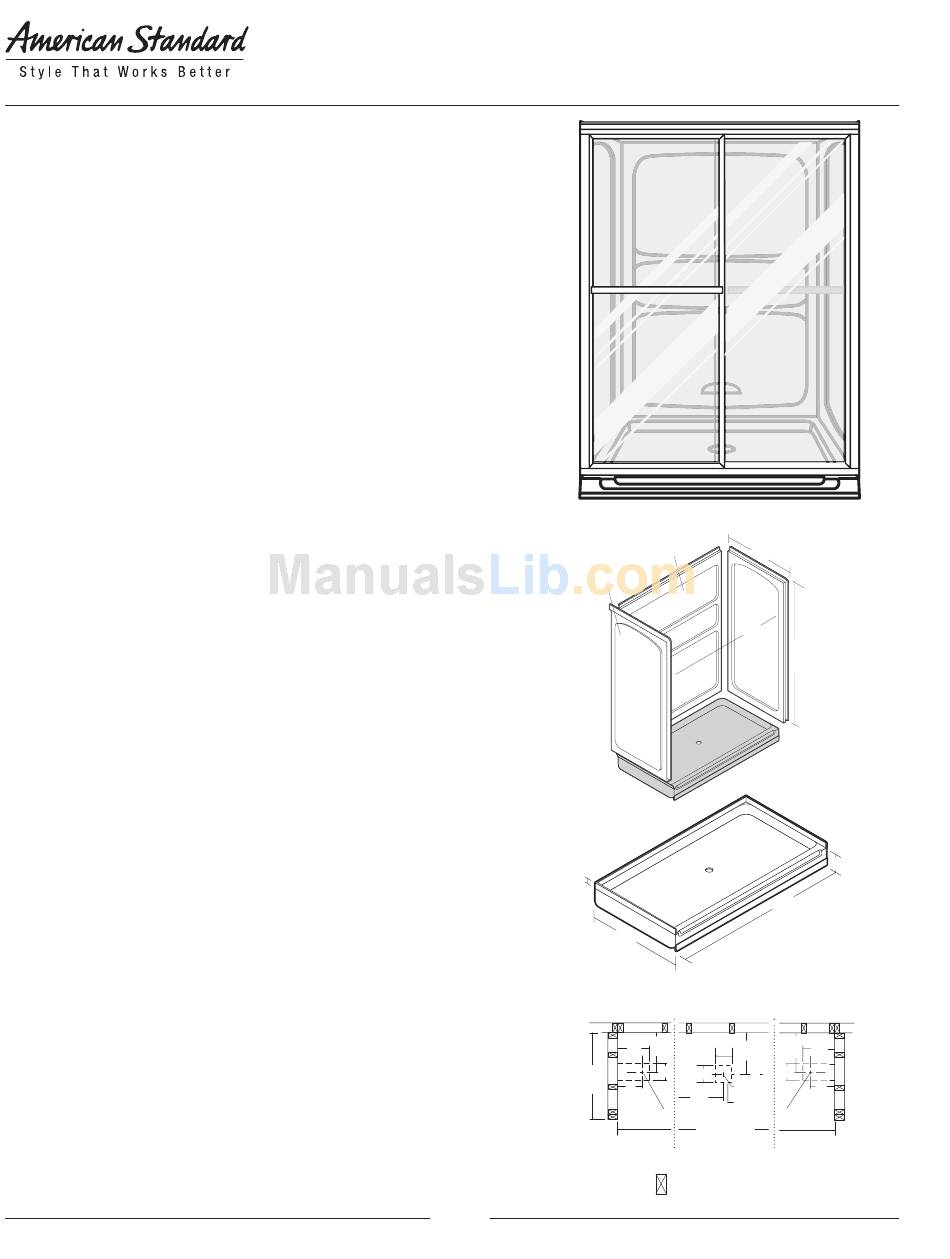

60" x 32" SHOWER KIT
Side Panel
1"
(25mm)
31-1/4"
(794mm)
(305mm)
33-1/2"
(581mm)
(228mm)
Left Drain
H180
ACRYLUX
32"
Back Panel
(813mm)
58"
70"
(1473mm)
(1778mm)
Door
Opening
59-7/8"
(1521mm)
STUD LAYOUT
15"
15"
6" (152mm)
15"
12"
(381mm)
(381mm)
(381mm)
(305mm)
6"
6"
6"
(152mm)
(152mm)
(152mm)
Drain C L
9"
(228mm)
30"
(762mm)
Drain C L
Drain C L
60"
(1524mm)
Center Drain
Right Drain
= Stud Location
™
5-1/8"
(130mm)
12"
9"
Revised 10/08
