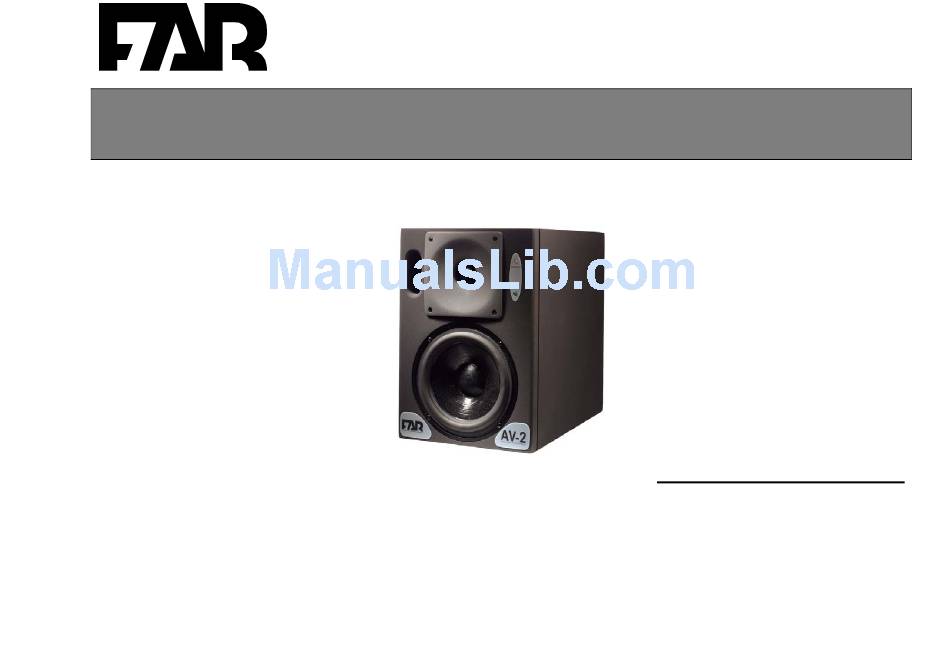

  • Page 1 FUNDAMENTAL ACOUSTIC RESEARCH OWNER’S MANUAL ACTIVE MONITOR AV-2(C)

  • Page 2: Table Of Contents

    FUNDAMENTAL ACOUSTIC RESEARCH Thank you for choosing the FAR AV-2(C) active two way AV-2(C) monitor. In order to obtain the best performance from this active monitor, please be sure to read this owner’s manual and use your speaker only in accordance with its instruction.

  • Page 3: Installation

    FUNDAMENTAL ACOUSTIC RESEARCH Thank you for choosing a FAR active monitor. This unit is The link functions the same as both of the inputs. Use the an exceptional product that will give you years of superb link to connect one speaker to another.

  • Page 4: Technical Description

    3500 Hz 24 dB/Octave Control -1dB/flat/+1dB/+2dB High pass section Crossover frequency 7500 Hz 24 dB/Octave Control -3dB/-2dB/-1dB/flat/+1dB/+2dB Bandpass filter 20-20000 Hz 6 dB/Octave Limitor (on/off) +2dB Components Woofer 17 cm / 6,5 inch Tweeter soft dome 1 inch OWNERS MANUAL AV-2(C)
  • Page 5 FUNDAMENTAL ACOUSTIC RESEARCH Listening position 50-120 Amplifier Specifications Power (PEAK) Tweeter: Power Woofer: Power Power (NOMINAL) Tweeter: Power @ 8 Ohm Woofer: Power @ 4 Ohm OWNERS MANUAL AV-2(C)
  • Page 6 Slew rate 35 V/µs SN ratio > 100 dB Distortion Intermodulation 0,01% Total 0,05% Input Sensitivity 0 dB Impedance > 10 kOhm Connectors Input (symmetric) XLR & Jack Link Remote RJ-45 External dimensions Height Width Depth Weight OWNERS MANUAL AV-2(C)

  • Page 7: Technical Drawing

    FUNDAMENTAL ACOUSTIC RESEARCH TECHNICAL DRAWING OWNERS MANUAL AV-2(C)
  • Page 8 5. Low pass section settings 6. Pre-set curves 7. Cooling system 8. Mains 9. Power 10. High pass section settings CAUTION FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE ONLY WITH THE SAME TYPE OF FUSE MAINS OWNERS MANUAL AV-2(C)

  • Page 9: Fine Frequency Tuning

    The dip switch can be set to one of the six dB level Positions available: -1, flat, +1, +2 dB positions for an optimum high frequencies setting Positions available: -3, -2, -1, flat, +1, +2 dB Figure 2: Low frequency control Figure 1 : high frequency control OWNERS MANUAL AV-2(C)

  • Page 10: Limitor Function

    FUNDAMENTAL ACOUSTIC RESEARCH Limiter function Rear panel level. The AV-2(C) has a built in limiter developed to protect the drivers against harmful signals. The limiter acts directly on Adjust the sound level by turning the main level knob to the input signal by decreasing it when it reaches the the desired position.

  • Page 11: Troubleshooting

    This section is designed to trouble free technical operation. Most of the problems encountered by the users are due to operating mistakes .Please support@far-audio.com check this list first for a possible solution. If the problem persists, consult your local FAR distributor or EMAIL to : Your problem is...

  • Page 12: Optional Curves

    Integrated into the loudspeakers, these tuning curves reproduce a sound under condition identical to those TELEVISION SPEAKER LIMITATION perceived by the final users. FAR measured the speakers of more than 20 domestic televisions in the large anechoic room of the university. REMOTE LINK...
  • Page 13 • The sound colour will obviously be the same as you use the same speaker for both curves. • The only one position will ensure you to hear the reflections and the own modes the same way OWNERS MANUAL AV-2(C)

  • Page 14: Optional Remote Control

    5+1 mode. TABLE OF USE AV-2 AV-6 AV-20 AV-50 AV-100 Peak 2 Peak-6 the RC-3 upgrades the RC-2 by RC-2 adding a fine 8 step volume level RC-3 adjustment. RC-V + =ESSENTIAL / =NOT USEFUL 0 =NOT AVAILABLE OWNERS MANUAL AV-2(C)
