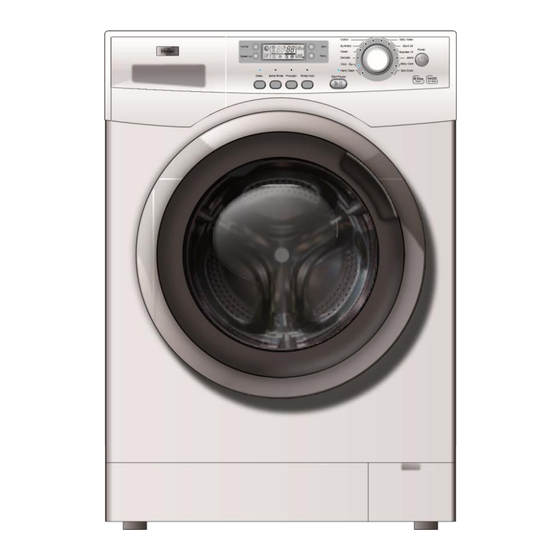

Haier HWM85-1482 User Manual

Hwm85-1482
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
HWM85-1482

Advertisement

Table of Contents
loading

Related Manuals for Haier HWM85-1482

Summary of Contents for Haier HWM85-1482

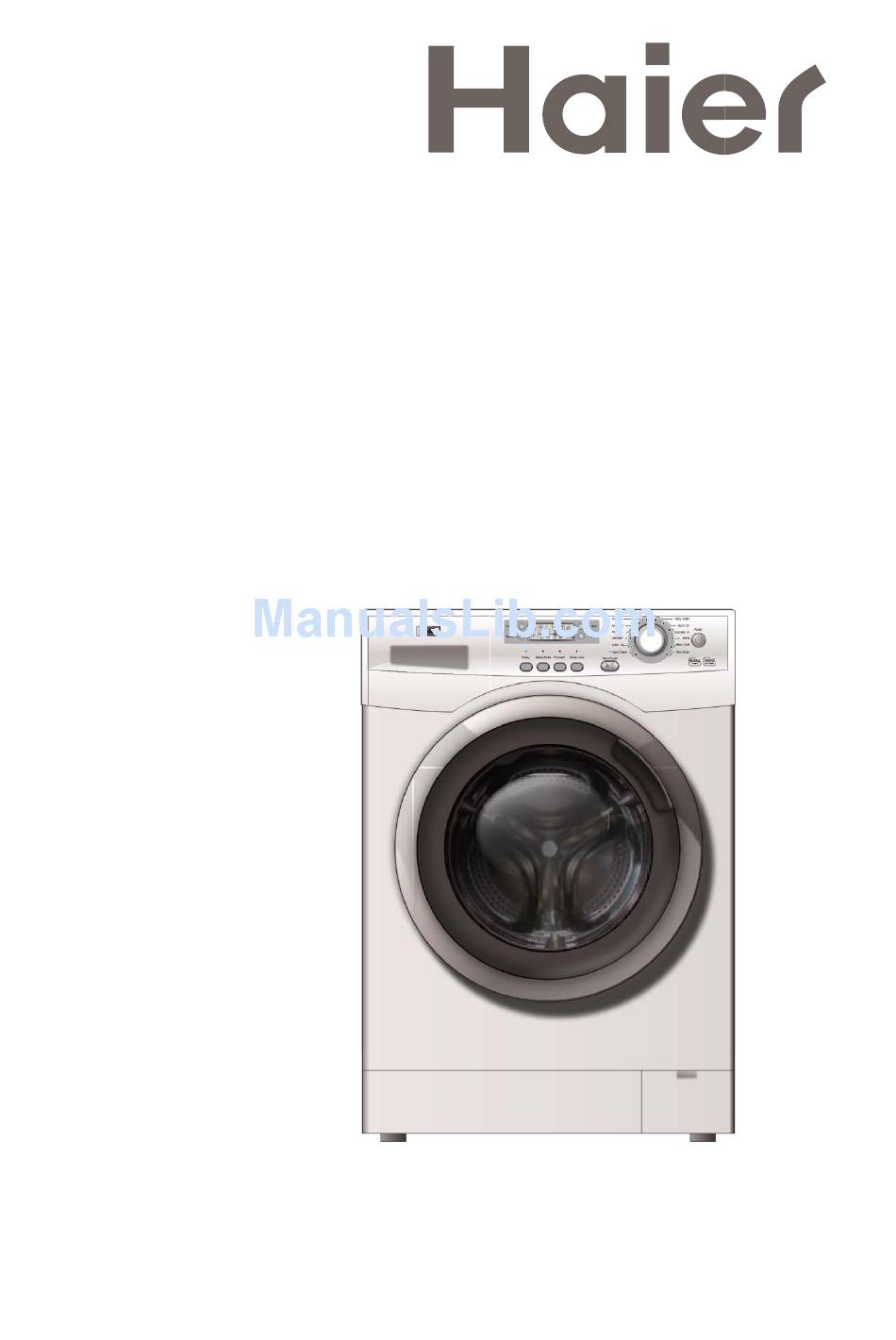

  • Page 1 User Manual HWM85-1482...
  • Page 2 Elements Thanks for purchasing a Haier Product Please read these instructions carefully before using this appliance. The instruction contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

  • Page 3: Table Of Contents

    Index ..............................4 Before Use .............................7 Functions ..............................10 Maintenance ............................18 Trouble-Shooting ..........................20 Technical Data ..........................23 After Sales Service ..........................24 Legend Optional Caution Attention...
  • Page 4 Cautions Before switching the appliance on for the first time Do…  Make sure that the transport bolts are removed.  Use a separate earthed socket for the power supply.  Make sure that the plug is accessible.  Hold the plug and not the electric cable when unplugging the mains supply.
  • Page 5 Cautions During daily use of the appliance Do…  Pull up zips and fix loose threads to prevent the items from being entangled. If necessary, put small items into a laundry bag or pillow case.  Turn off the machine after each wash program and switch it off at the mains to save electricity and for safety.
  • Page 6 Cautions Saving Tips Achieve the best use of energy, water, detergent and time by using the recommended maximum load size Do not exceed the detergent dosages indicated in the manufacturer’s instructions. The Eco-Ball –a special system in the outlet- will prevent detergent loss from the drum to avoid detergent loss into the environment.

  • Page 7: Before Use

    Before Use Description This diagram may be slightly different from the layout of the washing machine you have just purchased. Unpacking the washing machine Remove all the packing materials prior to use, including the polystyrene base. Upon opening the package, water drops may seen on the plastic bag and the porthole.

  • Page 8: Adjusting The Feet

    Before Use Installation Fitting the base cover Before removing the transportation bolts, please fix the base cover to the bottom of the washing machine. Lay down the machine (fig1) screw off the feet and adjust the base cover with the four holes corresponding to the screw holes of the feet.

  • Page 9: Drain Hose

    Before use Inlet Hose  Connect the nut on the inlet hose to the connector on the water valve (fig1).  Apply inlet hose to a water tap with cold, fresh water (fig2). Use the hose-set supplied with the appliance. Old hose-sets should not be reused.

  • Page 10: Functions

    Functions...
  • Page 11 Functions...
  • Page 12 Functions Program Modes 1 Detergent compartment for prewash mode 2 Detergent compartment 3 Softener compartment Program Pre-set Fibre Type Pre-set spin Temp speed Hand Wash 0-90°C 30°C Cotton fabric 400rpm Wool 0-40°C 30°C Woolen fabric 400rpm Delicate 0-40°C 30°C Cotton fabric 400rpm Mixed 0-40°C...
  • Page 13 Functions Program Max Load Temp. Washing Time 2 kg 30°C 1:10 h Hand Wash 0:59 h 1 kg 30°C Wool Delicate 2 kg 30°C 0:57 h Mixed 6 kg 40°C 1:17 h 4 kg 40°C 1:19 h Synthetic Cotton 8.5 kg 40°C 1:46 h 4 kg...

  • Page 14: Washing Methods

    Functions Washing Methods This washing machine is for domestic use only. If the machine is used for commercial purpose the guarantee will not be valid anymore. Do not use it for purposes other than that which it was designed. Follow the instructions given on the label of each garment and only wash machine washable garments.

  • Page 15: First Wash

    Functions First wash When first using the washing machine, let it run unloaded for one complete program to prevent the laundry from being tainted by oil or dirty water from within the machine. You should run the machine without laundry, but with detergent, with a 60°C program. pen the washer door put in the laundry piece by piece.

  • Page 16: After Washing

    Functions Selecting wash program To get the best washing results, an appropriate washing program should be selected according to the laundry type. Please turn the program knob to select the right program. Selecting addition functions Select the required options. (Refer to the "Control panel" pages 10, 11 and 12) Setting washing temperature Press and hold down the temperature button until the desired temperature is selected.
  • Page 17 Functions Load Reference Material Made of Load in grams Bed Sheet Cotton Approximately 800 Blanket Wool Approximately 3000 Blended fabric clothes Approximately 800 Jackets Cotton Approximately 800 Jeans Approximately 800 Overalls Approximately 950 Cotton Ladies Pyjamas Approximately 200 Shirts Approximately 300 Socks Blended Fabric Approximately 50...

  • Page 18: Maintenance

    Maintenance Cleaning and Care After washing Turn off the water supply (fig1) and pull out the electricity plug after each wash (fig2). Open the washer door to prevent formation of moisture and odours. If the washing machine is left idle for a long period, drain the water in the machine and replace the drain hose.

  • Page 19: Moving The Machine

    Maintenance Water inlet valve and inlet valve filter To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and inlet valve filter regularly. Moving the machine If the machine is to be moved to a distance location, replace the transportation bolts removed before installation as shown below this will prevent damage.

  • Page 20: Trouble-Shooting

    Technical Data Display Codes Err7 Motor Error Contact the maintenance personnel. Err8 Contact the maintenance personnel. Er10 The signal of Water level sensor is wrong. Contact the maintenance personnel. EuAr The driving computer and the computer Contact the maintenance personnel. board of display can’t communicate.
  • Page 21 Technical Data...
  • Page 22 Technical Data...

  • Page 23: Technical Data

    Technical Data Basic technical information regarding the appliance. HWM85-1482 Power source 220 - 240V~/50Hz Max. working current (A) Water pressure (MPa) 0.03≤P ≤1 Nominal load (kg) Spinning speed (r/min) 1400 Washing programs 2050 Max power (W) Dimensions (HxDxW mm) 850 x 650 x 595...

  • Page 24: After Sales Service

    After-Sale Service If after checking the trouble-shooting part, the problem is not solved. Please check the Warranty Card included with the product.
