Devolo dLAN 200 AVsmart+ Technical Data

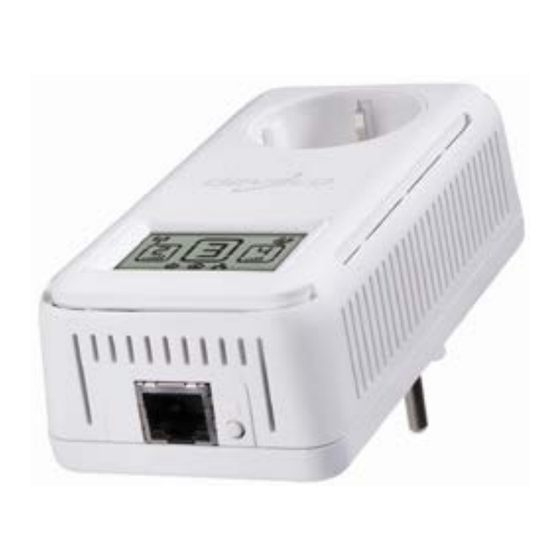

dLAN 200 AVsmart+

Technical data

Standards
Protocols
Transmission speed
Transmission method
Modulation
Data path
Range
Security
Display
Power outlet / connector
Power output at integrated
power outlet
Device port
Power consumption
Power supply
Attenuation filter
Filter characteristics
Temperature
Weight adapter
Dimensions adapter
Ambient conditions
System requirements
Operating systems
Certifications
devolo AG . Charlottenburger Allee 60 . 52068 Aachen . Tel.: +49 (0) 241 182 79 0 . Fax: +49 (0) 241 182 79 999 . www.devolo.com . info@devolo.com
Ethernet specifications IEEE 802.3, IEEE 802.3x, IEEE 802.3u,
Auto MDI / X
HomePlug AV
CSMA/CA via power grid
200 Mbps
asynchronous
OFDM – 1155 carriers, 1024/256/64-QAM, QPSK, BPSK
Ethernet <-> power supply grid
300 m
128-bit AES encryption over the power grid (enabled at the touch of a button)
LCD type
Cutout dimensions 36 x 23 mm (width x height)
Display: Power
Ethernet (Link/Act)
dLAN (Link/Act)
Local adapter number (1-9)
Remote adapter number (1-9)
Remote adapter type (wireless, multimedia, USB)
Link quality of each remote adapter
DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU:
Typ F (CEE 7/4) / Typ F (CEE 7/4)
FR, BE, PL: Type E (CEE 7/7) / Type E + F (CEE 7/7 + CEE 7/4)
UK, CY: Type G (BS 1363) / Type G (BS 1363)
CH: Type J (SEV 1011) / Type J (SEV 1011)
230 V / 16 A max.
Ethernet RJ45
4.0 W (max.), < 1.0 W in standby
AC 100-240V 50/60Hz
2 - 30 MHz
-22 dB to -45 dB
Storage: -25°C – 70°C
Operation: 0°C – 35°C
~ 260 g
130 x 66 x 42 mm (height x width x depth)
10–90% humidity (non-condensing)
Ethernet interface
®
et al. Windows 7 , Windows
32/64bit
®
OS X and all operating systems with TCP/IP support
CE-compliant in accordance with the technical requirements of all EU countries
and Switzerland: EN 55022:2006, EN 50412-2-1:2006, EN 60950-1:2006
® ®
Vista , Windows XP
32/64bit
Version: 04.01.12
®
, Linux , Mac
32bit
