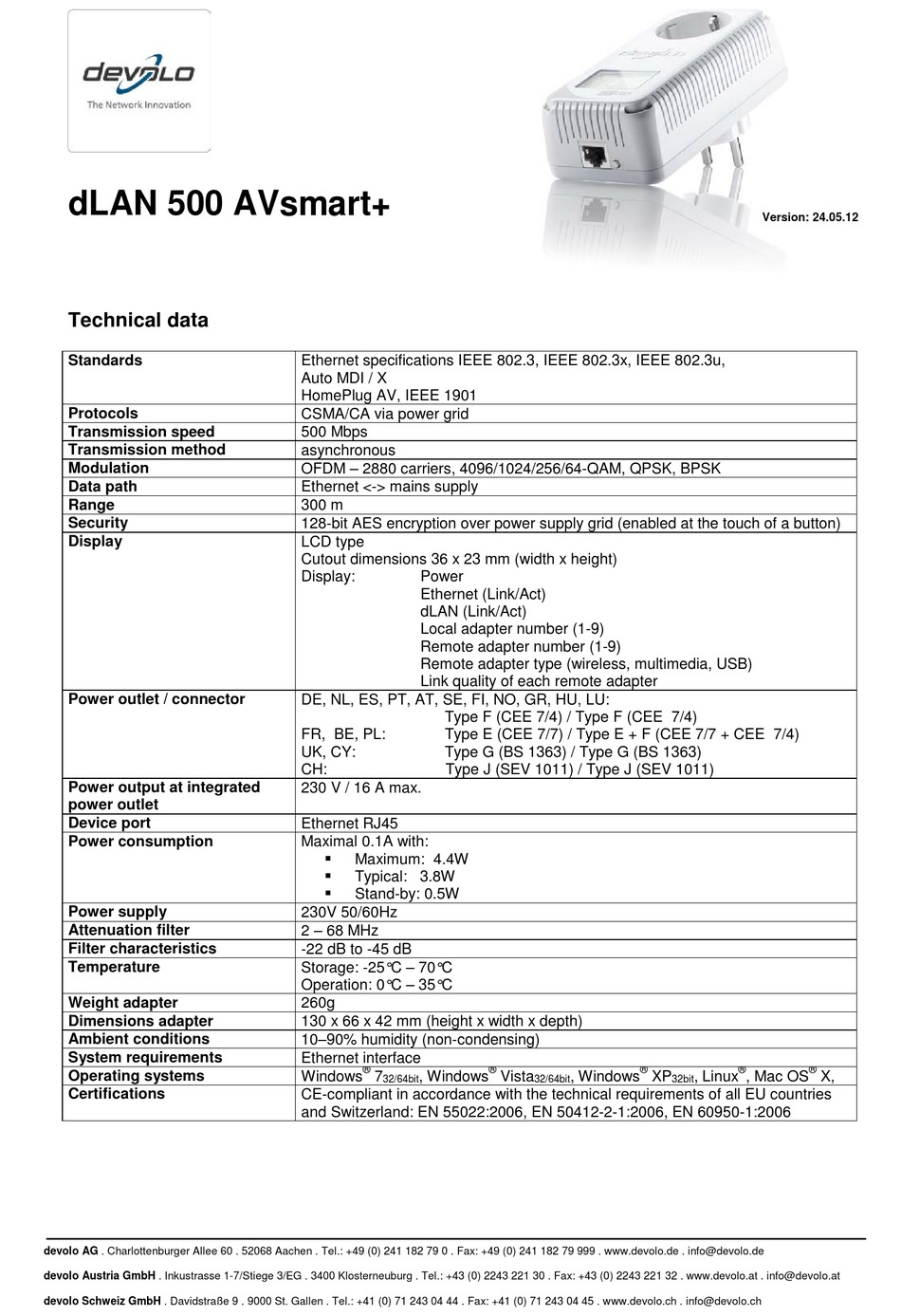

Devolo dLAN 500 AVsmart+ Technical Data

dLAN 500 AVsmart+

Technical data

Standards
Protocols
Transmission speed
Transmission method
Modulation
Data path
Range
Security
Display
Power outlet / connector
Power output at integrated
power outlet
Device port
Power consumption
Power supply
Attenuation filter
Filter characteristics
Temperature
Weight adapter
Dimensions adapter
Ambient conditions
System requirements
Operating systems
Certifications
devolo AG . Charlottenburger Allee 60 . 52068 Aachen . Tel.: +49 (0) 241 182 79 0 . Fax: +49 (0) 241 182 79 999 . www.devolo.de . info@devolo.de
devolo Austria GmbH . Inkustrasse 1-7/Stiege 3/EG . 3400 Klosterneuburg . Tel.: +43 (0) 2243 221 30 . Fax: +43 (0) 2243 221 32 . www.devolo.at . info@devolo.at
devolo Schweiz GmbH . Davidstraße 9 . 9000 St. Gallen . Tel.: +41 (0) 71 243 04 44 . Fax: +41 (0) 71 243 04 45 . www.devolo.ch . info@devolo.ch
Ethernet specifications IEEE 802.3, IEEE 802.3x, IEEE 802.3u,
Auto MDI / X
HomePlug AV, IEEE 1901
CSMA/CA via power grid
500 Mbps
asynchronous
OFDM – 2880 carriers, 4096/1024/256/64-QAM, QPSK, BPSK
Ethernet <-> mains supply
300 m
128-bit AES encryption over power supply grid (enabled at the touch of a button)
LCD type
Cutout dimensions 36 x 23 mm (width x height)
Display: Power
Ethernet (Link/Act)
dLAN (Link/Act)
Local adapter number (1-9)
Remote adapter number (1-9)
Remote adapter type (wireless, multimedia, USB)
Link quality of each remote adapter
DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU:
Type F (CEE 7/4) / Type F (CEE 7/4)
FR, BE, PL: Type E (CEE 7/7) / Type E + F (CEE 7/7 + CEE 7/4)
UK, CY: Type G (BS 1363) / Type G (BS 1363)
CH: Type J (SEV 1011) / Type J (SEV 1011)
230 V / 16 A max.
Ethernet RJ45
Maximal 0.1A with:

Maximum: 4.4W

Typical: 3.8W

Stand-by: 0.5W
230V 50/60Hz
2 – 68 MHz
-22 dB to -45 dB
Storage: -25°C – 70°C
Operation: 0°C – 35°C
260g
130 x 66 x 42 mm (height x width x depth)
10–90% humidity (non-condensing)
Ethernet interface
®
Windows 7 , Windows
32/64bit
CE-compliant in accordance with the technical requirements of all EU countries
and Switzerland: EN 55022:2006, EN 50412-2-1:2006, EN 60950-1:2006
® ®
Vista , Windows XP
32/64bit
Version: 24.05.12
® ®
, Linux , Mac OS X,
32bit
