  • Page 1 Wide Touch Monitor LT1423pwC User's Guide...
  • Page 2: Product Numbers

    Product numbers 60A3-UAR2-WW First Edition September 2013 © Copyright Lenovo 2013 . All rights reserved. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F .R. 2.101 with limited and restricted rights to use, reproduction and disclosure.
  • Page 3: Table Of Contents

    Monitor specification s ……………………………………………………………………………………….. Troubleshooting ……………………………………………………………………………………………… Getting further help ... ……………………………………………………………….……………………. Service information ……………………………………………………………………………………….. ………….…………..….….. Chapter 4. Working with LT1423pwC Wide USB Monitor ……………………………………………………………………………………….. Driver Installation ……...………………………………………………………… USB Monitor Display Information settings ……………………………………………………………….………….…………. Additional Information …………………………………………..…………... Appendix A. Service and Support Telephone technical support ……………………………………………………………………..…………….
  • Page 4 Safty information General Safety guidelines © Copyright Lenovo 2013.
  • Page 5: Safety And Maintenance Guidelines

    Safety and Maintenance Guidelines Important Safety Information The power cord is designed for use with your monitor. To use a different cord, use only a power source and connection compatible with this monitor. WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power outlet.
  • Page 6: Maintenance Guidelines

    Maintenance Guidelines To enhance the performance and extend the life of your monitor: Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating ■ properly or has been dropped or damaged, contact your Lenovo authorized dealer, reseller, or service provider.
  • Page 7: Chapter 1. Getting Started

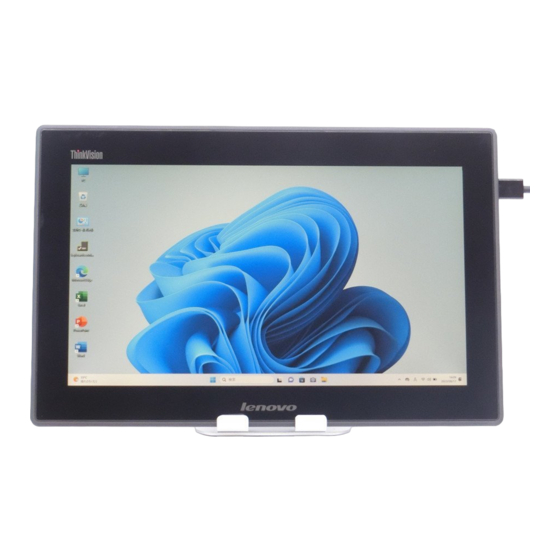

    Chapter 1. Getting started This User’s Guide contains detailed information on the ThinkVision ® LT1423pwC Wide Touch Monitor. For a quick overview, please see the Setup Poster that was shipped with your monitor. Shipping contents The product package should include the following items: Information Flyer ●...
  • Page 8: Product Overview

    1. Back-Forward selection of the OSD menu. 2. Decease the value of sub-menu selection. 3. Auto config hot key. Plus Key: 1. Forward selection of the OSD menu. 2. Increase the value of sub-menu selection. LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 9: Monitor Stylus Pen Storage

    Monitor Stylus Pen storage A storage slot is available on the monitor to store the Stylus Pen. Using the Multi-touch screen Your Monitor support multi-touch function on Win7/Win8 32/64bits OS, can support maximum ten point muti-touch function on Win 8 32/64bits OS. Tap the screen to use the controls on the screen including icons, menu items, and the on-screen keyboard.
  • Page 10: Using The Lt1423pwc Monitor Stylus Pen

    Pressing the click button to take a screen capture and snip the captured image. Cable lock slot Your monitor is equipped with a cable lock slot located on the side of your monitor LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 11: Setting Up Your Monitor

    Setting up your monitor This section provides information to help you set up your monitor. Connecting and turning on your monitor Note: Be sure to read the Safety Information located in the Quick Start Guide before carrying out this procedure. 1.
  • Page 12 If simple cover is attached: 1) Simple cover for storing. 2) Simple cover as stand. a. Take out monitor from simple cover and raise stand leg. b. Put monitor in front of stand leg . LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 13: Chapter 2. Adjusting And Using Your Monitor

    Chapter 2. Adjusting and using your monitor This section will give you information on adjusting and using your monitor. Comfort and accessibility Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform.
  • Page 14: Quick Tips For Healthy Work Habits

    With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system; others can be purchased through vendors or accessed at: https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 15: Adjusting Your Monitor Image

    Adjusting your monitor image This section describes the user control features used to adjust your monitor image. Using the On-Screen Display (OSD) controls The display settings can be viewed through the on-screen-display (OSD), as shown below To use the controls: 1.
  • Page 16: Understanding Power Management

    Lightly dampen a soft cloth with water and use this to gently wipe the covers ● and the screen. Remove grease or finger marks with a damp cloth and a little mild detergent. ● LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 17: Selecting A Supported Display Mode

    Selecting a supported display mode The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes. The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls.
  • Page 18: Chapter 3. Reference Information

    Chapter 3. Reference information This section contains monitor specifications, troubleshooting information, and service information. Monitor specifications Table 3-1. Monitor specifications 225.44 mm (8.87 in) Height Dimensions 12.70 mm (0.50 in) Depth 347.96 mm (13.70 in) With Range: 0°~95° Tilt range Stand 337.82 mm (13.3 in) Viewable image size...
  • Page 19: Troubleshooting

    Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem. If touch / Stylus function not working on LT1423pwC when in extended mode, please set your notebook via following steps: 1. Open “Control panel”, then find the “Tablet PC Setting”.
  • Page 20 4. 2 options to set up the stylus pen and the touch function. Click “stylus pen input”, your notebook screen will show below picture.Then click “Enter” button of your keyboard, the picture will also be displayed on your monitor screen. 5.
  • Page 21: Getting Further Help

    FRU (Field Color Description Machine Type Replaceable Unit) Model(MTM) Part number LT1423pwC 60A3-UAR2-WW 03T8721 Raven Black Monitor_ T8474 Raven Black 60A3-UAR2-WW USB3.0 cable T847 60A3-UAR2-WW Simple Cover Raven Black 04Y1470 60A3-UAR2-WW Stylus Pen Raven Black LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 22: Chapter 4. Working With Lt1423pwc Wide Usb Monitor

    Chapter 4. Working with LT1423pwC Wide USB monitor This section contains instructions to install the monitor driver and display information settings. Driver Installation PC Requirements Lenovo USB Monitor software can be used on PCs, from Netbooks, Notebooks/Laptops to Desktops. The driver will run on processors ranging from Atom N270 based PCs, basic single Core CPUs, and of course the latest Dual, Quad Core and Core i3/i5/i7 CPUs.
  • Page 23 … Hybrid Crossfire … Crossfire … SLI not in SLI mode … Multiple WDDM 1.1 graphics drivers active at once … Graphics Card Support (Windows 8) All graphics cards are supported on Windows 8. LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 24: Usb Monitor Display Information Settings

    Properties (WDP). WDP provides a simple method to attach, rotate, duplicate or extend screens as well as modify screen resolution. To open WDP 1. Right click on the USB Monitor icon 2. Click Advanced Configuration. 3. WDP opens. Chapter 4. Working with LT1423pwC Wide USB Monitor...
  • Page 25 To control the behaviour of an attached USB Monitor display, it is also possible to use Windows Key+P to display a menu (and cycle through it) to switch mode. To control the Display 1. Select the Windows Key+P. LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 26 When devices are attached, an icon appears in the taskbar. This gives you access to the USB Monitor manager menu. To use the USB Monitor Manager Menu 1. Click the USB Monitor icon on the taskbar. The menu appears as shown below. Chapter 4. Working with LT1423pwC Wide USB Monitor...
  • Page 27 Switches off the secondary display. Optimize for Video Configures the secondary display for (Windows 7 Only) optimum full screen video performance output. Note: Text may appear less clear. Advanced Opens the Display Settings window. Configuration LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 28: Additional Information

    On reconnection or powering up of the USB Monitor USB Graphics device, the display returns to the same mode as it was before disconnection. However, windows and icons that were previously on the screen will not be moved back. Chapter 4. Working with LT1423pwC Wide USB Monitor...
  • Page 29 DVDs. On Windows 8 systems, DVDs may not display correctly on the Lenovo LT1423pwC Wide USB … ® monitor. Use your computer's built-in monitor to view DVDs. LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 30 2. Try to upgrade to latest USB Monitor software. 3. Report the issue via your support channel. 4. If necessary, boot into Safe Mode and use Windows' Backup and Restore Center to recover. Chapter 4. Working with LT1423pwC Wide USB Monitor...
  • Page 31: Appendix A. Service And Support

    Appendix A . Service and Support The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. Registering your option Register to receive product service and support updates, as well as free and discounted computer accessories and content.
  • Page 32 8 AM - 10 PM Monday - Sunday then dial 877-404-9661 (Pacifictel Spanish) 1-800- 999-119; then dial 877-404- 9661 3-Dec-12 0800 GMT -6:00 MEXICO 001-866-434-2080 8 AM - 10 PM Monday - Sunday 01800 0834916 LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 33 Date and time Update to be Country or Applicab Language Old Telephone Number(s) New Telephone Number(s) Hours of Operation Visible on the Website Regions le to IWS 3-Dec-12 0900 GMT -3:00 PARAGUAY Spanish, 009-800-52-10026 9 am - 11 pm Monday - Sunday 0098004410084 or 009-800- English 3-Dec-12 1000 GMT -2:00...
  • Page 34 +603 8315 6855 (DID) English 30-Nov-12 0000 GMT -4:00 Antigua 24 hours a day 7 days a week 855-882-4402 English 30-Nov-12 0000 GMT -4:00 Aruba 24 hours a day 7 days a week 855-882-4402 LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 35 Applic Date and time Update to be Country or New Telephone Language Old Telephone Number(s) Hours of Operation able to Visible on the Website Regions Number(s) 30-Nov-12 0000 GMT -5:00 Bahamas 24 hours a day 7 days a week 855-882-4402 30-Nov-12 0000 GMT -4:00 Barbados 24 hours a day 7 days a week 855-882-4402...
  • Page 36: Appendix B. Notices

    Appendix B. Notices Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product,program, or service may be used. Any functionally equivalent product,program, or service that does not infringe any Lenovo intellectual property right may be used instead.
  • Page 37: Trademarks

    Lenovo Lenovo logo ThinkCentre ThinkPad ThinkVision Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies. Other company, product, or service names may be trademarks or service marks of others. LT1423pwC Wide Touch Monitor User’s Guide...
  • Page 38 Turkish statement of compliance The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EEE). Türkiye EEE Yönetmeliğine Uygunluk Beyanı Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlığı'nın “Elektrik ve Elektronik Eşyalarda Bazı...
