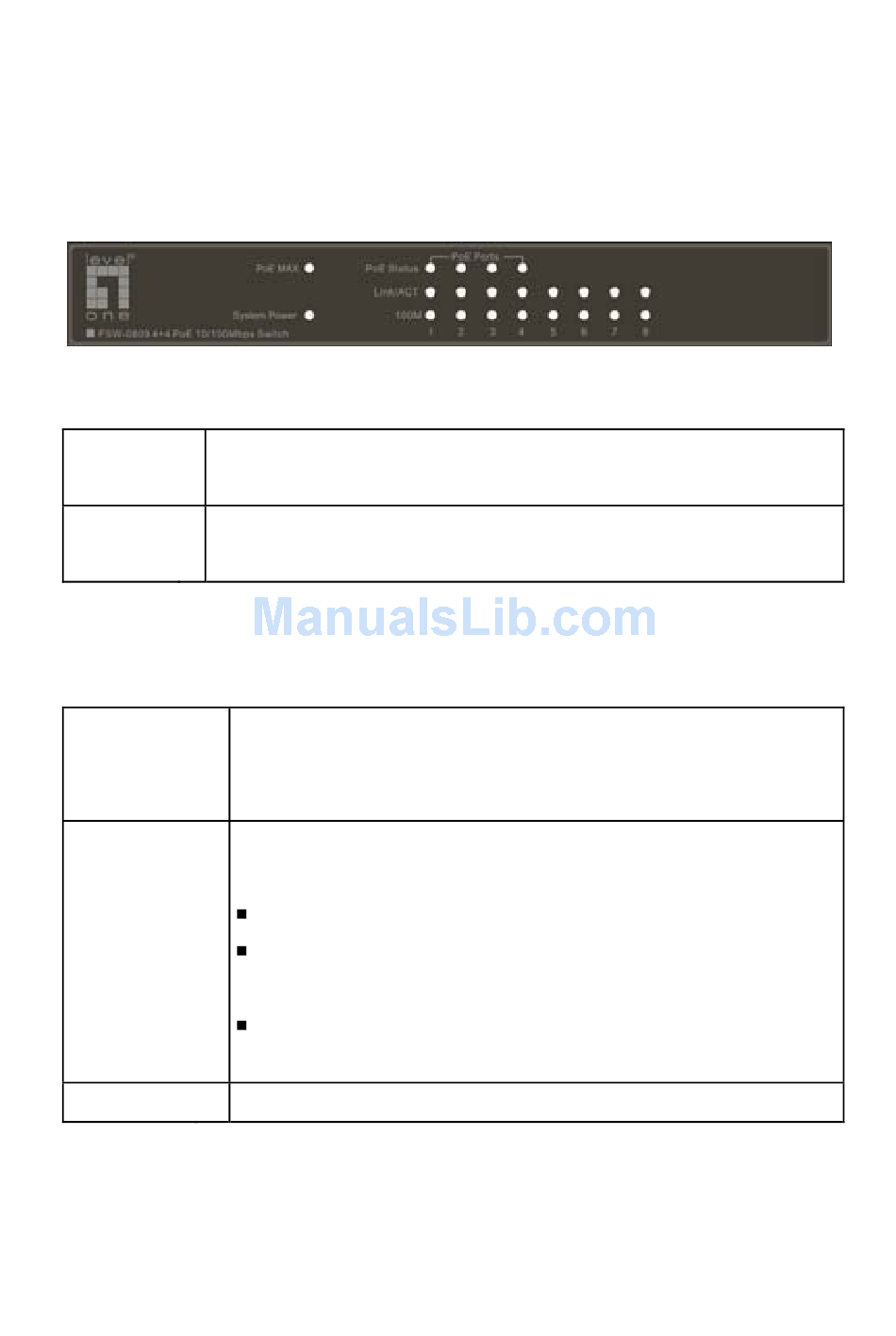

LED Indicators

The front panel LEDs provides instant status
feedback, and, helps monitor and troubleshoot
when needed.

System Power

When the Power LED lights on, the Switch
On :
is receiving power.
When the Power turns off or the power cord
Off :
has improper connection.

PoE status (Port 1 ~ Port 4)

When the PoE powered device (PD) was
Green : connected and the port supplies power
successfully.
When the PoE port have the following
failure happens:
Yellow :
Off : No PoE powered device (PD) connected.
PoE power circuit shortage
Power over current: over the power
current of PD's classification
Out of PoE voltage of 44 ~ 57 VDC
output
