1. MVC-15HS only: Set the signal input switch. For
standard coaxial cable connection, set the switch to
VIDEO. For Y/C connection, set the switch to Y/C (B in
Figure 1).
Note:
2. Attach the VIDEO IN connector of the monitor to the
VIDEO OUT connector of the camera (or other
equipment providing video).
3. If applicable, attach an additional monitor's video input
connector to the video output connector of the unit, as
shown in Figure 2.

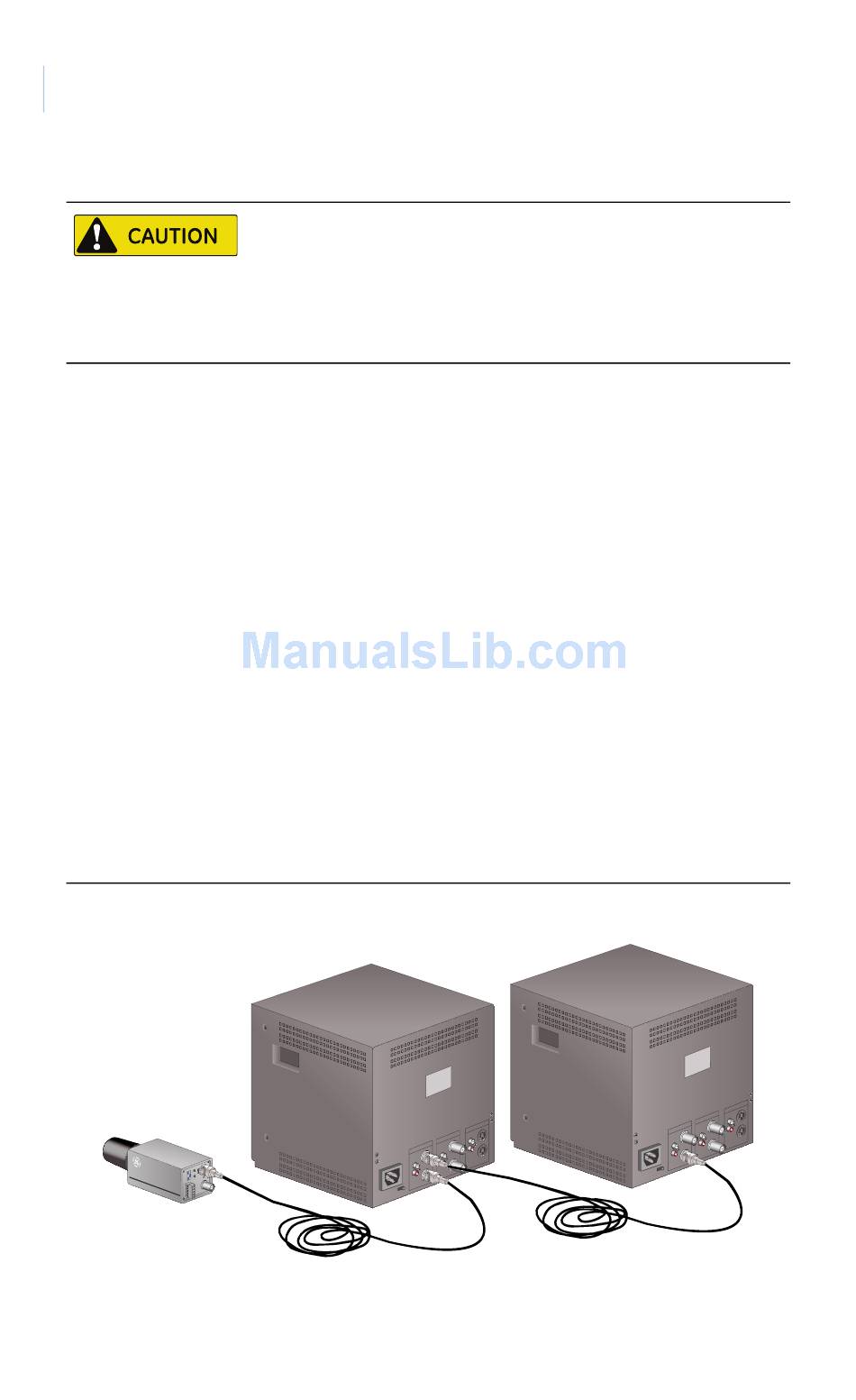

Figure 2. Camera and two monitors
To prevent electric shock, do not remove the monitor cover.
Qualified service personnel should make repairs.
C
omplete all installation steps before supplying power to
the unit.
For the following steps, use either the Y/C or the VIDEO
connections, whichever corresponds with the selection
made in step 1.
