Summary of Contents for GE Security MVC-15HS

  • Page 1: User Manual

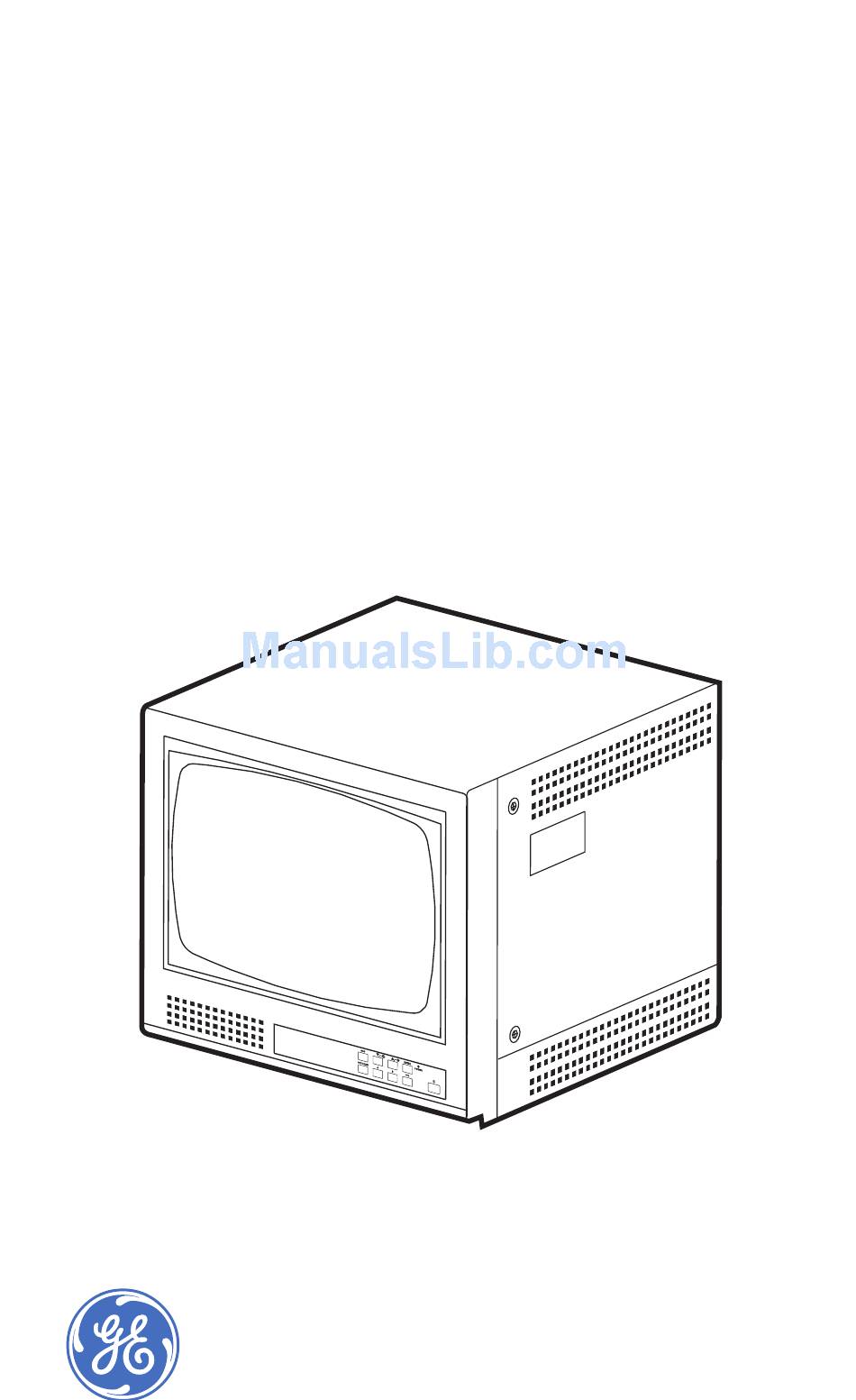

    Security MVC-15HS, MVC-17HS user manual imagination at work...
  • Page 2 Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or persons is entirely coincidental. Trademark MVC-15HS, MVC-17HS product and logo are registered trademarks of notices GE Security. GE and the GE logo are registered trademarks of General Electric.
  • Page 3 Introduction This is the GE MVC-15HS, MVC-17HS User Manual. This document includes detailed instructions explaining: • how to install the units; and • how to make connections. There is also information describing how to contact technical support if you have questions. To use this document effectively, you should meet the following minimum qualifications: •...

  • Page 4: Conventions Used In This Manual

    MVC-15HS, MVC-17HS User Manual Conventions used in this manual The following conventions are used in this document: Bold Menu items and buttons. Italic Titles of books and various documents. Emphasis of an instruction or point; special terms Windows, panes, tabs, fields, variables, and other GUI elements.

  • Page 5: Installation

    Installation Before you install, make sure you have the provided power cable and have selected an appropriate location for installation. Figure 1. MVC-15HS, MVC-17HS back connections AC input connector Audio out connector Signal input switch Audio in connector Video out connector...
  • Page 6 Qualified service personnel should make repairs. omplete all installation steps before supplying power to the unit. 1. MVC-15HS only: Set the signal input switch. For standard coaxial cable connection, set the switch to VIDEO. For Y/C connection, set the switch to Y/C (B in Figure 1).
  • Page 7 4. If applicable, connect the AUDIO IN connector to the audio output connector of a VCR (or other equipment) and connect the AUDIO OUT connector to the AUDIO IN connector of a VCR (or other equipment). 5. Attach the monitor’s power cord to the AC input connector.

  • Page 8: Front Panel Controls

    MVC-15HS, MVC-17HS User Manual Front panel controls To adjust the monitor settings, see Table 1 and do the following: Table 1. Front panel controls OSD (Onscreen Over/under scan display) selection. (MVC-17HS only) Down/brightness A channel (MVC- button. 17HS only) Up/contrast B channel (MVC- button.
  • Page 9 3. Press the up/contrast arrow button to adjust the monitor’s contrast. 4. Press the up and down arrow buttons to navigate among other functions. The active function is highlighted with a red bar. See Table 2 for the function menu and defaults.. Table 2.

  • Page 10: Contacting Technical Support

    MVC-15HS, MVC-17HS User Manual Contacting technical support For assistance installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, you may contact technical support and sales 24 hours a day, 7 days a week.
