Tripp Lite N816-10M Specifications

Model #: N816-10M

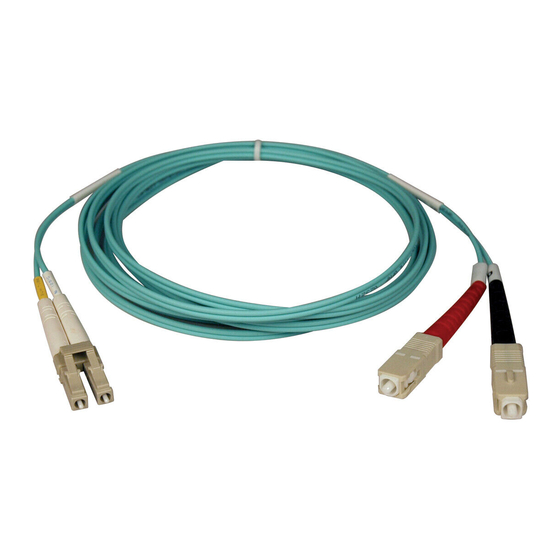

Multimode Fiber Optics 10-meter (33-ft.) 10Gb Aqua Duplex MMF 50/125 LSZH Patch Cable, LC/SC
Description
Tripp Lite introduces it's new Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new
technology, 50/125um, SC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with
performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in
the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite
warrants this product to be free from defects in material and workmanship for Life.
Applications
For use with 10-Gigabit Ethernet equipment
Package Includes
10 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/LC
Features
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Specifications
OVERVIEW
Clad Diameter
Core Diameter
Fiber Type
Highlights
125um
50um
50/125 LOMMF
Designed for 10-Gig Ethernet applications
Backward compatible with existing 50/125 fiber
Max 10Gb distance of 300 meters @850nm
Low-Smoke, Zero Halogen (LSZH) Aqua jacket
