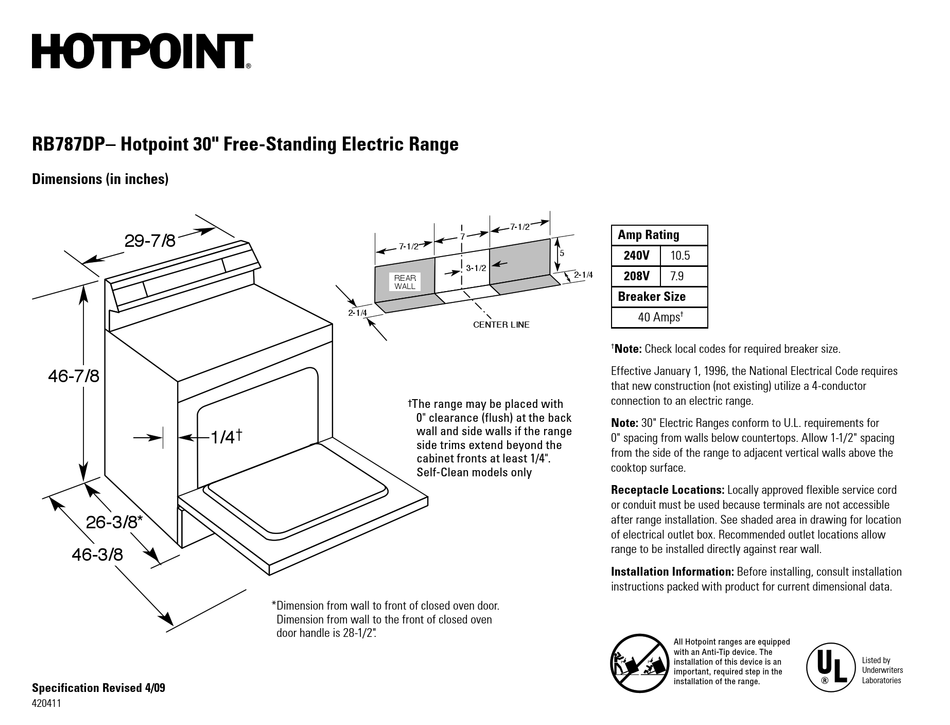

Hotpoint RB787DP Datasheet

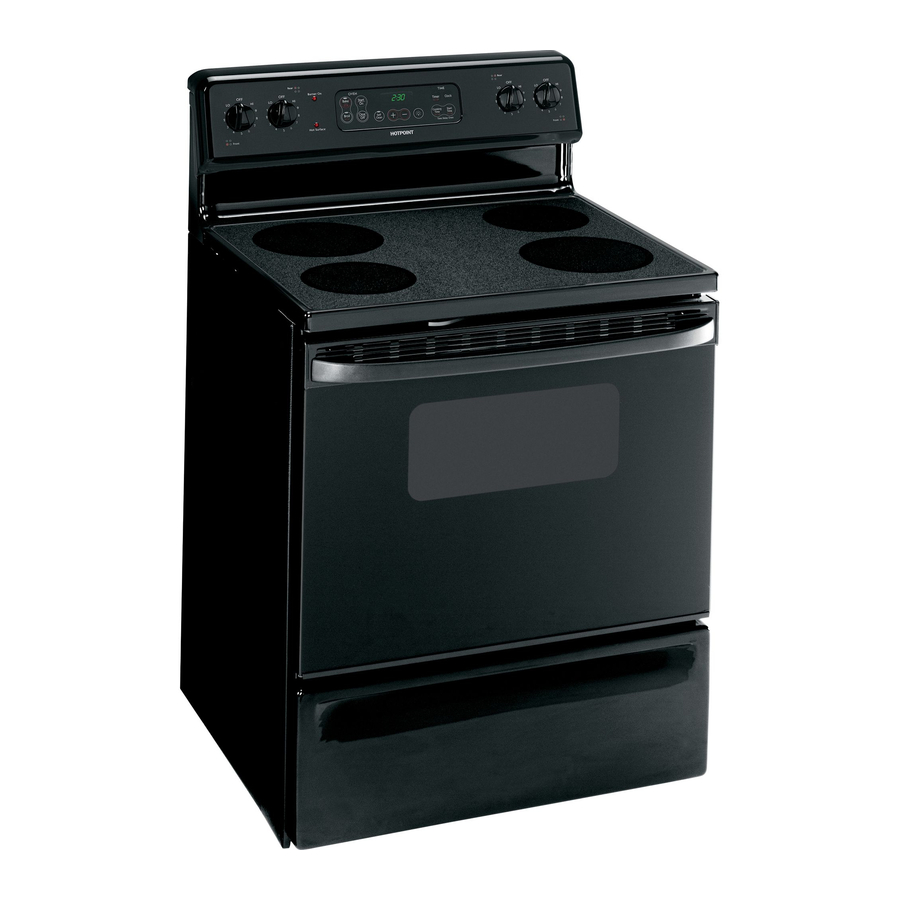

RB787DP– Hotpoint 30" Free-Standing Electric Range

Dimensions (in inches)

29-7/8
46-7/8
26-3/8*
46-3/8
* Dimension from wall to front of closed ovendoor.
Dimension from wall to the front of closed oven is 28-1/2"
Specification Revised 4/09
420411
2-1/4
1/4
†
46-1/2
* Dimension from wall to front of closed oven door.
Dimension from wall to the front of closed oven
door handle is 28-1/2" .
7-1/2
7
7-1/2
5
3-1/2
REAR
WALL
CENTER LINE
The range may be placed with
†
29-7/8
0" clearance (flush) at the back
wall and side walls if the range
side trims extend beyond the
cabinet fronts at least 1/4".
Self-Clean models only
† The range may be placed with 0" clearance
1/4
†
(flush) at the back wall and side walls if the
range side trims extend beyond the cabinet
fronts at least 1/4". Self-clean models only.
26-3/8*
46-3/8

Amp Rating

240V 10.5
2-1/4 208V 7.9

Breaker Size

40 Amps †
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Note: 30" Electric Ranges conform to U.L. requirements for
0" spacing from walls below countertops. Allow 1-1/2" spacing
from the side of the range to adjacent vertical walls above the
cooktop surface.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recom mended outlet locations allow
range to be installed directly against rear wall.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
Listed by
Underwriters
Laboratories
