JBL VRX932LA-1
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: Passive: 8 Ohms
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
• Power Rating:
Continuous / Program / Peak
Passive: 800W / 1600W / 3200W
Bi-amp LF: 800W / 1600W / 3200W
Bi-amp HF: 75W / 150W / 300W
• Freq. Response:
75 Hz - 20 kHz (±3 dB)
• Frequency Range:
57 Hz – 20 kHz (–10 dB)
• System Max. SPL:
130 dB SPL peak (passive mode)
LF: 130 dB; HF: 139 dB
• System Sensitivity:
95 dB SPL (passive mode)
(1 watt @ 1 meter )
LF: 95 dB (Bi-amp mode)
HF: 114 dB (Bi-amp mode)
• Input Connectors:
Neutrik Speakon NL-4 (x2)
• Crossover Freq:
1.2 kHz
SYSTEM COMPONENTS:
• Cabinet:
Enclosure (Not For Sale)
• Grille:
352282-001
PACKAGE
Filler
361091-001
VRX-AF
Array Frame Accessory
Carton
361094-001
Pad
361257-001
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
SYSTEM COMPONENTS: (CONT'D
• Low Frequency
• DC Resistance:
• High Frequency
• DC Resistance:
• Crossover Network: 364375-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 10.0V Input, 20 Hz to 20 kHz
B. L.F. Aural Sweep Test:
C. H.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
• Net Weight:
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.

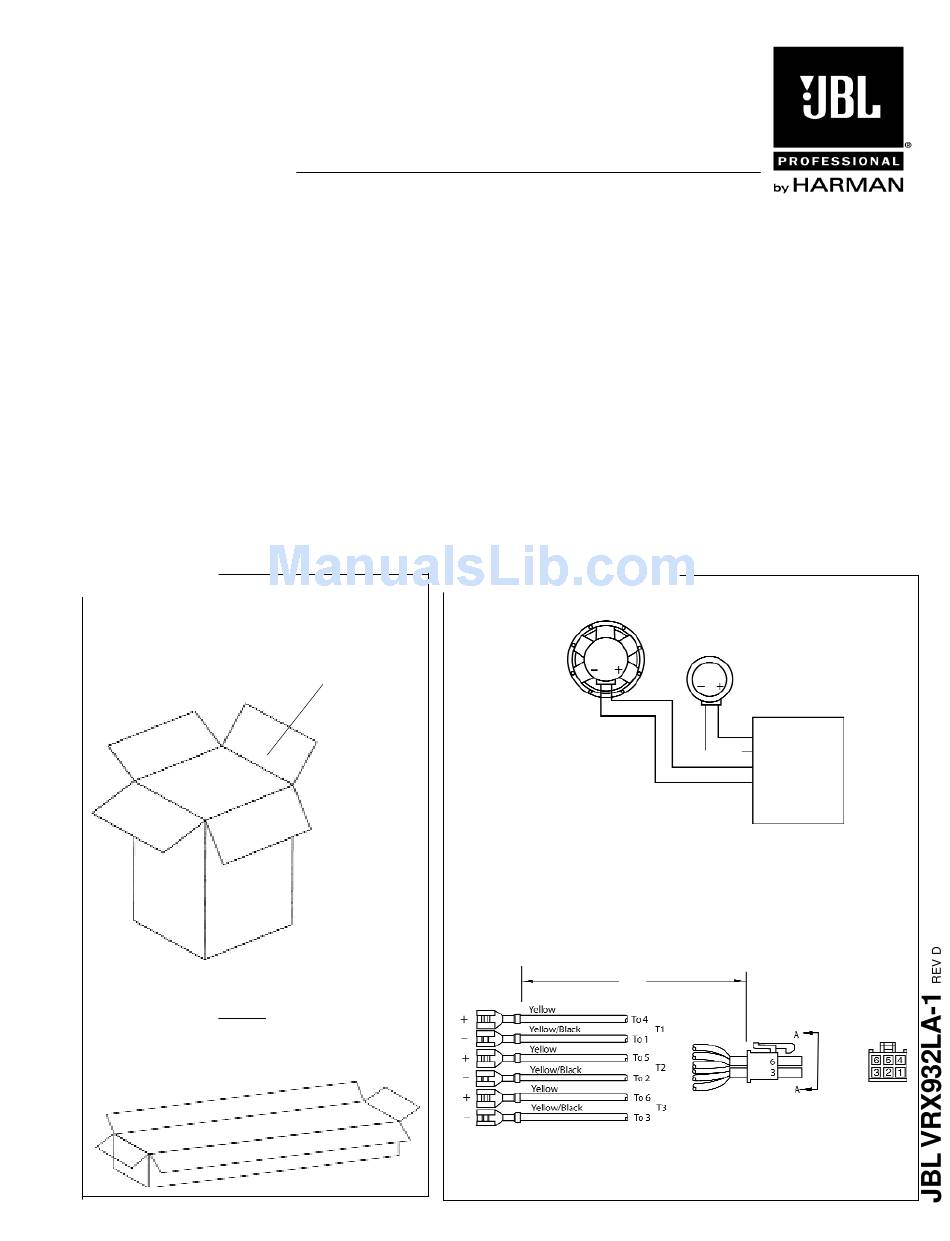

WIRING DIAGRAM
Warranty 59660
Driver
Low Freq
2262HPL
(338312-004X)
Manual
Cone Repl
353551-007
C8R2262
Carton
352380-001
Bi-Amp
±1 LF: 8 ohms
Pad (2)
±2 HF: 8 ohms
352379-001
Passive
±1 IN: 8 ohms
Filler (1)
±2 N/C
355108-001
Pkg,Microfoam
(8)
49790P
Sheets
Faston, Female (3)
0.250 x 0.032
Tinned Brass
Negative
Faston, Female (3)
0.187 x 0.020
Tinned Brass
Positive
2262HPL, 305 mm (12 in) Differential
Transducers:
Drive woofer with Neodymium magnet and
dual voice coils, and dual magnetic gaps.
5.1 ohms ± 10%
(3) 2408J, 38 mm (1.5 in) voice coil,
Transducer:
Neodymium Compression Driver
8.9 ohms ± 0.2%
10.0V Input, 20 Hz to 1 kHz
1.0V Input, 200 Hz to 1.5 kHz
349 x 597 x 381 mm D
(13.75 x 23.5. x 15.0 in. D)
46 lb (21 kg.)
GRN
GRN/BLK
YEL/BLK
SEE NETWORK SCHEMATIC PAGE - 364375-001
WIRING HARNESS 354410-002
17"
Receptacle, 4.20SP
3x3, Molex PN 39-01-2065
or Equiv.
Socket (6)
Molex P/N 39-00-0078
or Equiv
)
Driver (3)
High Freq
2408J
(361549-003X)
Diaph Repl
D16R2408
YEL
Network
Assembly
443853-001
Wire Harness
Assembly
354410-002
03-12
