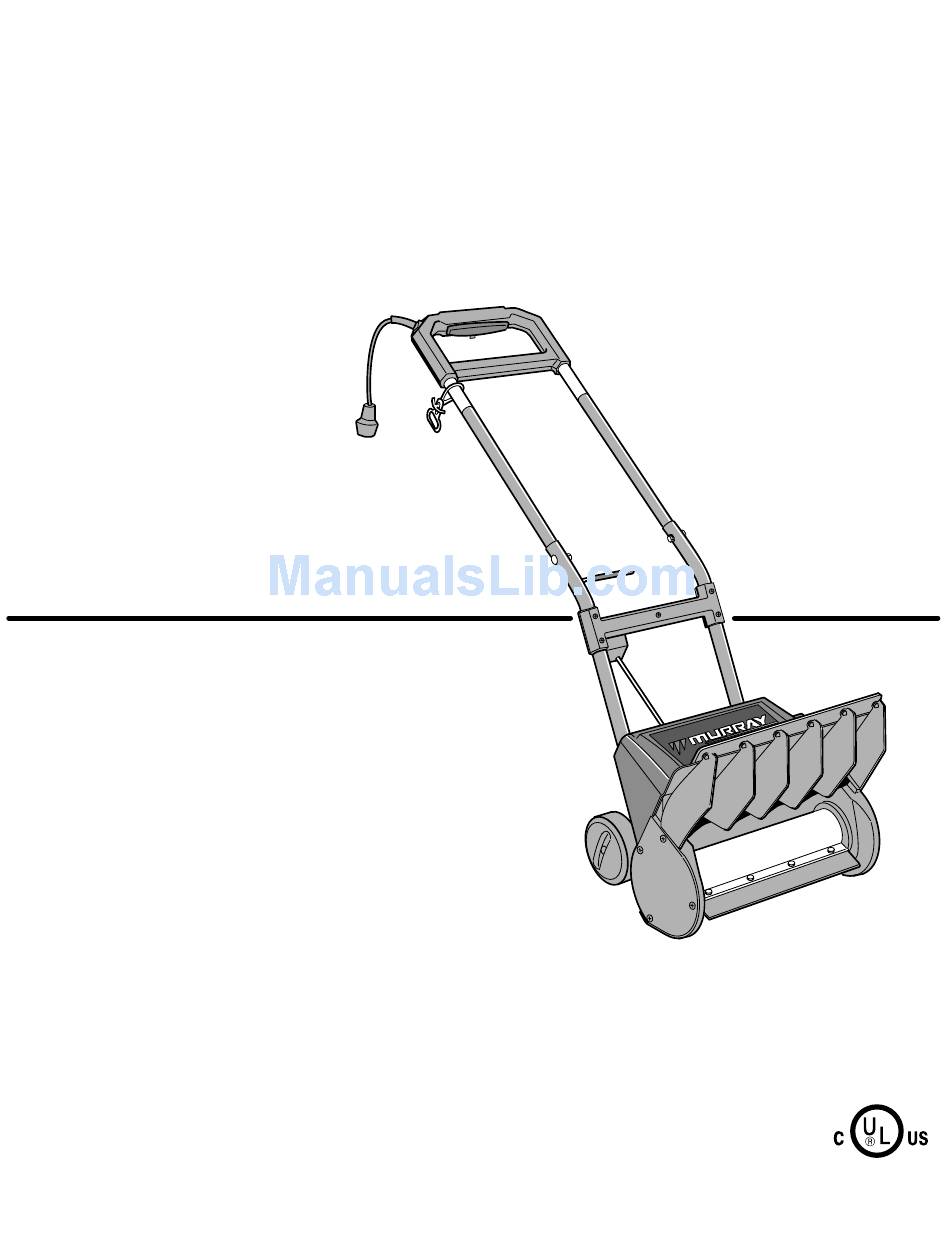

OWNER'S MANUAL

SNOW THROWER

120 V.A.C. 6.5 AMP. 60 Hz.
Double insulated
15" clearing width
Model No.
615000x30NB
Caution: Read and Follow all Safety
Rules and Instructions Before
Operating This Equipment
MANUEL D'UTILISATION
CHASSE–NEIGE
De 15 po
Double Isolation
12 V.C.A., 6.5 ampères, 60 hz
Numéro de modèle
615000x30NB
Attention: Lire et respecter toutes les
directives et mesures de sécurité
avant d'utiliser le chasse–neige
F-031040C
LISTED
SNOW MOVER
894Y
File No E76832

Advertisement

loading

Summary of Contents for Murray 615000x30NB

  • Page 1: Snow Thrower

    OWNER’S MANUAL SNOW THROWER 120 V.A.C. 6.5 AMP. 60 Hz. Double insulated 15” clearing width Model No. 615000x30NB Caution: Read and Follow all Safety Rules and Instructions Before Operating This Equipment MANUEL D’UTILISATION CHASSE–NEIGE De 15 po Double Isolation 12 V.C.A., 6.5 ampères, 60 hz Numéro de modèle...
  • Page 2 This Murray, Inc. One (1) Year Limited Warranty is your exclusive remedy; however, this warranty is void or does not apply to any unit that has been tampered with, altered, misused, abused or used for rental or other commercial and/or professional (non–homeowner) uses.
  • Page 3: Before Operation

    IMPORTANT SAFE OPERATION PRACTICES FOR WALK–BEHIND SNOW BLOWER DO NOT OPERATE THIS EQUIPMENT BEFORE READING THIS MANUAL Read entire owner’s manual before attempting to assemble S If Snowthrower is to be left unattended, remove key and or operate this Snowthrower. disconnect from power source.
  • Page 4 ASSEMBLY Your Snowthrower was completely assembled at the factory, except for the upper handle assembly. Plastic Strain Relief Spare Key Shipping Carton Carefully remove complete unit from carton. Make sure parts bag Plastic Probe and all components have been removed before discarding carton.
  • Page 5 ASSEMBLY S Insert plastic probe supplied into right handle hole, from the inside of the handle. This will ensure wire harness will not be pinched or damaged while inserting carriage bolt. Figure 4. Plastic Probe S Insert carriage bolt from outside of right handle while removing plastic probe.
  • Page 6 OPERATION Know your snow blower and its controls. Be sure you (or any other operator) have read and understood the Operation Precautions listed on page 3 of this manual. This Snowthrower conforms to applicable North American safety standards. Key Lock/Key Control Bar Power Cord Connector...
  • Page 7 OPERATION Operating Instructions In deep snow it may be necessary to make two or three passes over an area in order to clear it acceptably. WARNING: The Snowthrower is designed to clear snow from level surfaces, such as driveways and WARNING: Never direct snow discharge towards sidewalks.
  • Page 8 OPERATION Discharge Direction Adjustment Directional Discharge S Snow may be discharged to the left, straight forward, or to the Control Rod right. S To change the direction proceed as follows: S Pull control rod, to unlock control rod from present setting. Figure 9.
  • Page 9 MAINTENANCE Lubrication Your Snowthrower does not require any lubrication for the life of the Snowthrower. Replacing Impeller Blades S Remove all 4 securing screws for each of the 2 impeller blades, and place aside. Figure 10. S Remove worn or damaged impeller blades. Figure 10. S Insert new impeller blades into slots in impeller and align holes.
  • Page 10 F-031040C...
  • Page 11: Parts List

    Parts List Model 615000x30NB Liste de pièces Modèle 615000x30NB F-031040C...
  • Page 12 MODEL 615000x30NB REPAIR PARTS 47–3 342966 F-031040C...
  • Page 13 MODEL 615000x30NB REPAIR PARTS Key No. Part No. Description Key No. Part No. Description 583599 Housing, Scoop 578918E701 Handle, Left Lower 905040 Blade, Scraper 905017 Bushing 3809 Bolt 578906E701 Handle, Upper 71067 Washer, Flat 579527 Protector, Harness 73826 Nut, 1/4–20...
  • Page 14 MODEL 615000x30NB REPAIR PARTS DECALS 342436 Key No. Part No. Description 761108 Decal, Safe Operation 905112 Decal, Start & Stop – – – – NOT SERVICEABLE 48x372 Decal, MURRAY TURBO 905111 Decal, Discharge Control 761068 Decal, Danger Foot 783027 Decal, Warning Cut–Out...
  • Page 15 Cette garantie Murray, Inc. de un (1) ano constitue votre recours exclusif ; cependant, cette garantie est nulle ou ne s’applique pas aux machines ayant été modifiées, endommagées, fait l’objet d’une utilisation abusive, ou utilisées lors d’une location ou à...
  • Page 16 ATTENTION CONSEILS DE SÉCURITÉ POUR CHASSE–NEIGE À MAIN LIRE CE MANUEL AVANT D’UTILISER CET ÉQUIPEMENT Ce livret doit être entièrement lu avant de tenter de monter S AVERTISSEMENT : MANIPULER LE CORDON ou d’utiliser le chasse–neige. ÉLECTRIQUE AVEC PRÉCAUTION – Ne pas déplacer le chasse–neige par le cordon ni le débrancher en tirant Avant l’utilisation brusquement dessus.
  • Page 17 ASSEMBLAGE Votre chasse–neige a été entièrement monté en usine, à l’exception du manche. Petite clé/Poulie motrice Clé de rechange Carton d’expédition Sortir soigneusement la machine du carton. S’assurer que le sac Sonde de plastique de pièces et tous les éléments on été retirés du carton avant de jeter celui–ci.
  • Page 18 ASSEMBLAGE S Insérer la cheville de plastique fournie dans le trou de la poignée de droite, de l’intérieur. Ceci évitera que le faisceau Sonde de de câbles soit pincé ou endommagé lors de l’insertion du plastique boulon à tête ronde. Figure 4. S Insérer le boulon à...
  • Page 19 FONCTIONNEMENT Apprendre à connaître le chasse–neige et ses commandes. Lire et bien comprendre les conseils de sécurité donnés en page 3. Ne pas avancer le chasse–neige trop loin de l’appui des pieds. Garder constamment un bon appui sur le sol. Clé...
  • Page 20 FONCTIONNEMENT Fonctionnement S’il est nécessaire de déneiger des surfaces irrégulières ou revêtues de gravier, appuyer sur le guidon pour relever les lames AVERTISSEMENT: Le chasse–neige doit être utilisé sur de l’impulseur et éviter qu’elles ne heurtent des surfaces des surfaces nivelées telles que trottoirs et allées. Des irrégulières ou du gravier.
  • Page 21 FONCTIONNEMENT Réglage de l’orientation de la goulotte d’éjection ATTENTION : L’utilisation de ce chasse–neige position é évus relev e peut être dangerevse, sauf dans les cas pr S La neige peut être éjectée vers la gauche, en avant ou vers la dans ce manual.
  • Page 22 FONCTIONNEMENT Lubrification Votre chasse–neige ne nécessite aucune lubrification durant toute sa durée de vie. Remplacement des lames de l’impulseur S Déposer les 4 vis de chacune des 2 lames de l’impulseur et les mettre de côté Figure 10. S Déposer les lames usées ou endommagées. Figure 10. S Insérer les nouvelles lames de l’impulseur dans les fentes de l’impulseur et aligner les trous.
  • Page 23 F-031040C...
  • Page 24 MURRAY, INC. CENTRAL PARTS DISTRIBUTORS DISTRIBUTEURS RÉGIONAUX DE PIÈCES MURRAY, INC. BILLIOU'S, INC. FRANK EDWARDS CO. GULF COAST ENGINE, INC. Arizona, California, Hawaii, Nevada Colorado, Idaho Arkansas New Mexico, Oklahoma, Texas, BROWN & WISER, INC. Mexico Montana WISCONSIN MAGNETO Utah, Wyoming Alaska, Idaho GARDNER, INC.
