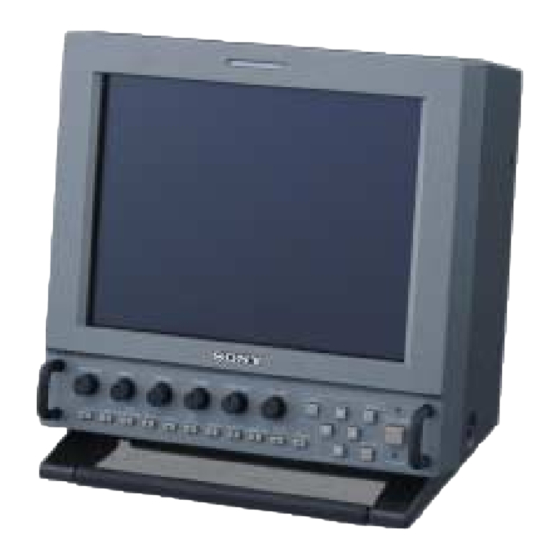

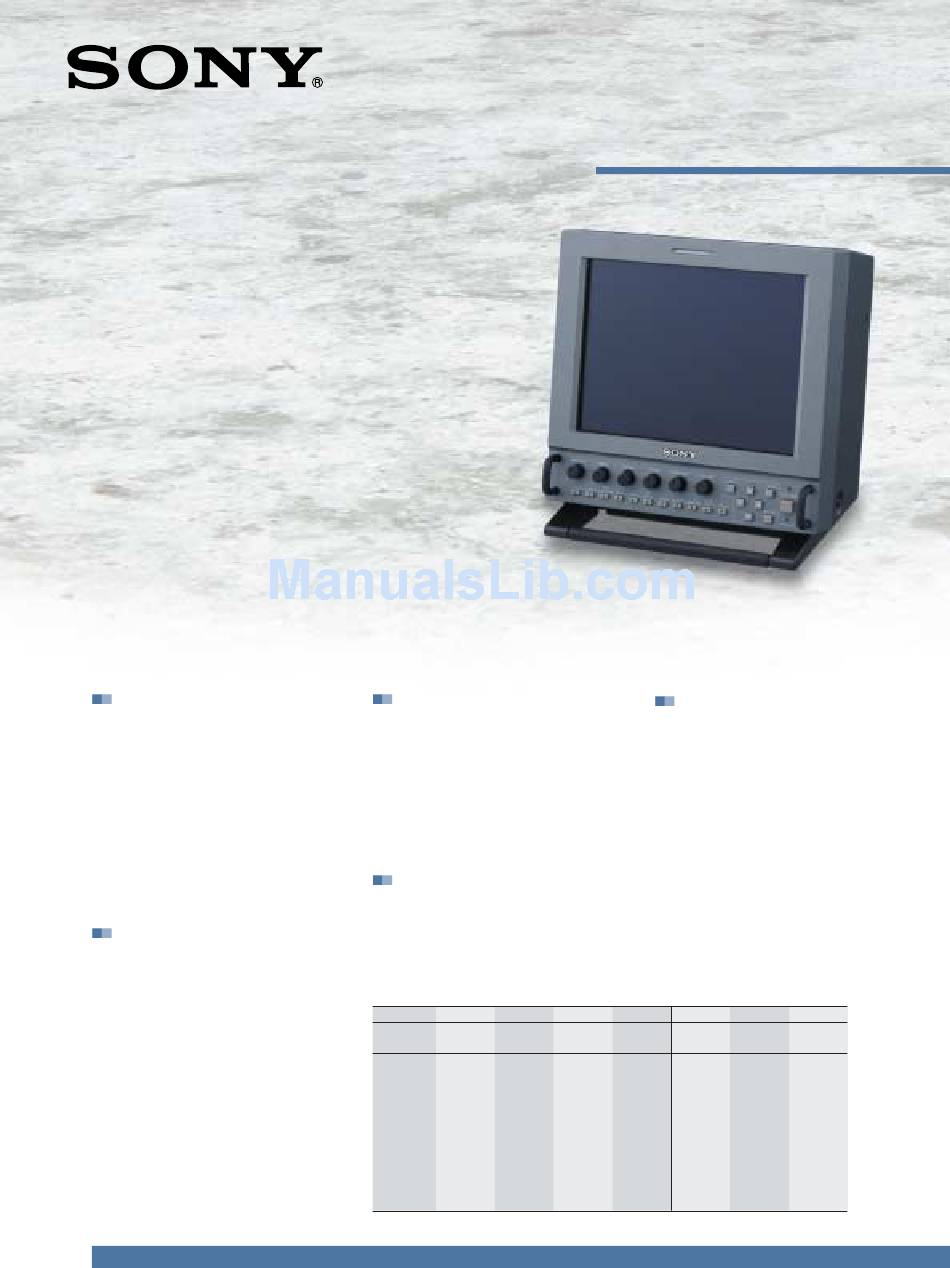

Sony LMD-9030 Features & Specifications

The LMD-9030 is a new addition to the 8.4-inch*
handheld-type LUMA Professional LCD Monitors.
Including SD-SDI capability as standard, the LMD-9030
offers the performance to replace CRT monitors with
the quality expected from the PVM-9L3 range.
The LCD panel of the LMD-9030 offers high resolution
and excellent color reproduction, combined with high
contrast and high brightness. This monitor also has a
wide viewing angle, plus a high level of robustness
thanks to its AR-coated protection panel.
The LMD-9030 can be AC, DC, or battery powered.
And, with its slim design and half-rack size width, the
LMD-9030 can be conveniently used on a lap, desktop,
or mounted in a rack for ENG and EFP operations, as
well as in mobile applications and studios. The
LMD-9030 also offers the familiar operational features
inherited from the Sony PVM Series of CRT monitors.
The combination of all these features allows the
LMD-9030 to offer exceptional value for mobile
monitoring in a variety of broadcast and production
applications.
* Viewable area, measured diagonally
Features
Input Versatility
In addition to a variety of analog inputs, the
LMD-9030 offers an SD-SDI interface* as
standard. For typical analog SD video
monitoring, composite (NTSC/PAL),
component/RGB (525/60i and 625/50i), and
Y/C (S-Video) signals are accepted. The
LMD-9030 also accepts a variety of analog
progressive SD and HD formats, including
480/60P and 576/50P, and high-definition
1080/60i, 1080/50i, 720/50P and 720/60P. It
can also accept 1080/24PsF.
* 575/50i, 480/60i, and 480/59.94i only
High Picture Quality –
High Purity Panel
The LMD-9030 uses a VGA (640 x 480)
resolution LCD panel, with high purity color
filters. The result is high-brightness and
high-contrast images with precise color
reproduction. Also, the LMD-9030 provides
a wide 170-degree viewing angle, both
vertically and horizontally.
In addition, its robust AR-coated protection
layer minimizes the chance of the panel
being scratched during transportation – an
extremely important criteria for use in the
field or in any mobile application.
ENG KIT
The LMD-9030 is a strategic choice for use
in ENG and EFP field operations. When
compared to CRT displays, the picture
contrast of these monitors is much less
affected by ambient light, allowing clear
images to be viewed even under strong
sunlight. For further protection, the optional
VF-509 ENG kit provides a viewing hood,
carrying handle, and connector protector.
Convenient Installation
The LMD-9030 is 5U high and half-rack
wide. Using the optional MB-525 Mounting
Bracket with a nine-step tilt capability, two
units can be installed side-by-side in a 19-
inch EIA standard rack.
Input Signals
Input Signal
Total
System
Lines
575/50i 625
*
480/60i 525
480/60P 525
576/50P 625
1080/24PsF 1125
LMD-9030
1080/50i 1125
*
1035/60i 1125
*
1080/60i 1125
720/50P 750
720/60P 750
* Also accepts 59.94Hz field rate.

LCD Monitor

LMD-9030
Other Features
• 4:3/16:9 Switchable Display
• Selectable Scan Size
• Advanced Marker Settings
• Color Temperature/Gamma Selection
• Three-color Tally
• Parallel Remote Control
• Monaural Audio Monitoring
• Protected Controls
• Setup Level for Analog Component and
NTSC signal
• Sub Control on Contrast, Chroma, Phase,
and Brightness
• Blue-only mode
• Monochrome mode
• Power-saving Function
• 4:3 Zoom
Standard Interface
Composite
Active Line Aspect Ratio
Component (x 1)
Y/C (x 1)
575 16:9/4:3 O
483 16:9/4:3 O
483 16:9/4:3 —
576 16:9/4:3 —
1080 16:9 —
1080 16:9 —
1035 16:9 —
1080 16:9 —
720 16.9 —
720 16:9 —
RGB
SD-SDI
O O
O O
O —
O —
O —
O —
O —
O —
O —
O —
