SECTION I
PRELIMINARY INFORMATION
-4o
t
1
11
Fi.
.k'r
)r't 14 '
L'
.1I
1. TakeUp
2. Pressure Control
3. Top Thread Guides
4. Needle Position/
Stitch Width/Button
hole Control
5. Stitch Pattern
Selection Table
6. Stitch Pattern
Selec tot
7. Stretch Stitch
Control
8. Bobbin Winder
9. Hand Wheel
10. Stitch Length
Control
11. Reverse Button
12. Feed Dog Height
Control
13. Needle Plate
14. Presser Foot
15. Feed Dog
16. Access Cover
17. Thumb Screw
18. Needle Clamp
19. Check Spring
20. Tension Dial
21. Face Plate
22. Spool Pins
23, Bobbin Winder
Tension Disc
24, Light Switch
25. Presser Foot Lever
26. Thread Cutter
27. Extension Plate
28. Clutch-nut
Always at its highest position when beginning or ending sewing.
For regulating the pressure on fabric.
For leading thread to tension control for sewing.
For selecting needle position, setting stitch width and button
hole steps.
Fo('reference of selected stitch pattern.
For selecting the stitch pattern.
For changing ordinary stitch to triple reinforced stitch (stretch
stitch).
For winding thread on bobbin.
For the control of the up
and
down movement of the needle.
For selecting stitch length between no feeding and about 8
stitches per inch.
For easy backtacking to lock thread ends by pushing the
button.
For regulating feed dog height for various materials and types
of sewing.
With guide lines for sewing accuracy.
For holding fabric when sewing.
Diamond point to move fabric accurately.
For opening an access to bobbin and bobbin case.
For tightening presser foot in place on presser bar.
For holding needle in place in the slot of needle bar.
For automatic precise flow of upper thread.
For regulating the amount of tension on upper thread.
Hinge type for replacement of light bulb and oiling.
For holding spools, preventing over -spin of spools.
For providing proper tension on thread when bobbin winding.
For turning on or off the light inside face cover.
For lifting or lowering presser bar and presser foot.
For cutting both upper and lower threads after sewing.
For changing to flat sewing surface.
For stopping movement of the needle bar in order to wind
bobbin.

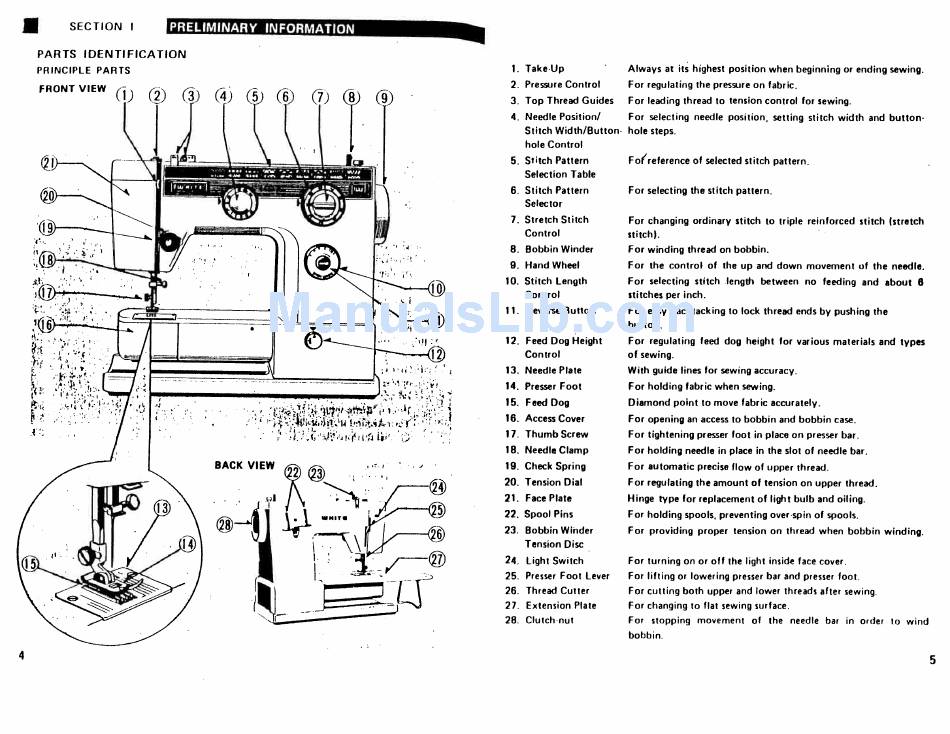

PARTS IDENTIFICATION
PRINCIPLE PARTS
FRONT VIEW
