Sony DWT-B01 Brochure & Specs

Digital wireless microphone system.
Hide thumbs

Advertisement

DWT-B01
DWR-S01D
DWA-01D
Digital Wireless Microphone System

Advertisement

Table of Contents

   Related Manuals for Sony DWT-B01

   Summary of Contents for Sony DWT-B01

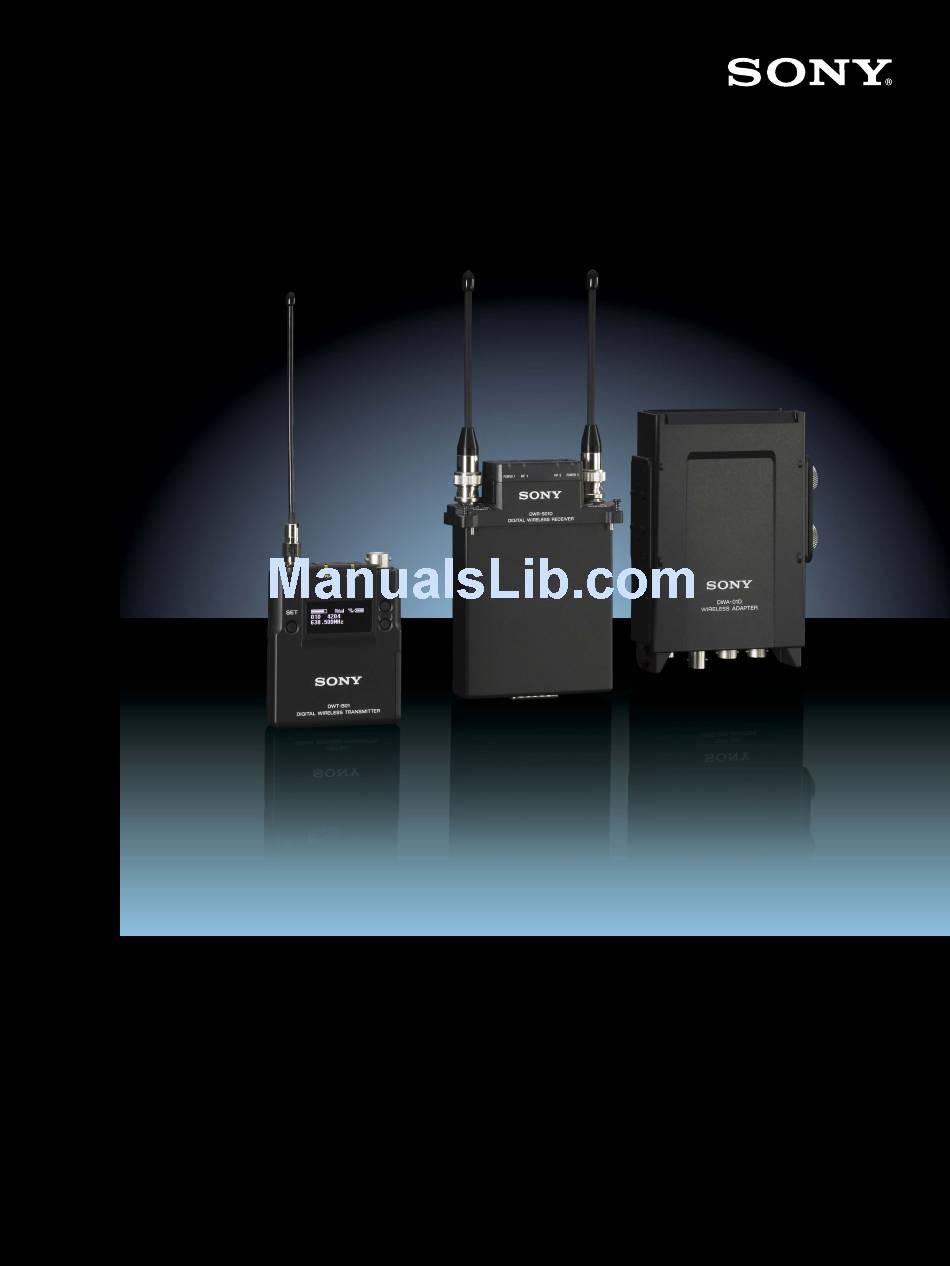

  • Page 1 DWT-B01 DWR-S01D DWA-01D Digital Wireless Microphone System...
  • Page 2 Breakthrough for a New Level of Sound Quality and Operational Convenience Since their first introduction in 1974, Sony has been continuously developing a rich range of wireless microphone systems to offer superb audio performance, highly stable transmission, and flexible simultaneous multi- channel operation.
  • Page 3 When using the DWR-S01D receiver in either the 590.125 to 607.875 MHz (TV 34 to 36 channels), 614.125 to 637.875 MHz (TV 38 to 41 channels) or 662.125 to 697.875 MHz (TV 46 to 51 channels) frequency range, please contact your nearest Sony office or authorized dealer.
  • Page 4 Metadata Audio input peak level transmission technology has made possible. Battery remaining capacity A variety of DWT-B01 transmitter settings – such Low-cut filter frequency Attenuator level as power on/sleep, attenuator level, low-cut Transmitter name filter frequency, and RF power output level –...
  • Page 5 Easy-to-see, Full Dot-matrix OLED (Organic Light-Emitting Diode) Display The DWT-B01 transmitter and DWR-S01D receiver come equipped with an easy-to-see OLED display, providing a variety of information such as operating channel/frequency, AF input level, RF output level, and battery status. The quick response...
  • Page 6 Switchable Mic or Line Input Level and Adjustable Attenuator The audio input level of the DWT-B01 transmitter is selectable from either MIC or LINE. When MIC is selected, the attenuator can be adjusted in 3-dB steps from 0 dB to 48 dB. The reference input level of the MIC and...
  • Page 7 Power Sleep Mode The DWT-B01 transmitter is equipped with a power sleep/wake up mode that can be wirelessly controlled from the DWR-S01D receiver. Wherever the transmitter is attached – for example, inside an actor’s costume – the operator can remotely control the transmitter’s power on and sleep...
  • Page 8 ENG and EFP applications. Despite its dual-channel receiver capability, the DWR-S01D receiver is small enough to be mounted directly in the slot of the Sony PDW-700 XDCAM HD camcorder, maintaining the well-balanced design and compactness of the camcorder.
  • Page 9 Wireless Remote Control The wireless remote control is an extremely efficient feature that enables the DWR-S01D receiver to control various settings of the DWT-B01 transmitter such as power on/sleep, attenuator level, low-cut filter frequency, and RF power output level.
  • Page 10 In addition to the camcorder mount operation, the DWR-S01D receiver with DWA-01D adapter can also work as a stand-alone wireless receiver.* This, in combination with a digital audio mixer such as the Sony DMX-P01, allows users to establish a compact, handy, and digital wireless microphone system.
  • Page 11: Optional Accessories

    Wide Array of Interfaces The DWA-01D adapter comes equipped with a wide range of interfaces optimized for diverse operational needs: •SMC9-4S (Sony 4-pin) (x 2): Outputs either AES/EBU or analog audio signals. •Word Sync input: Allows the digital wireless microphone system to synchronize with an external word sync signal.
  • Page 12: Specifications

    614.125 to 637.875 MHz (TV 38 to 41 channels) or 662.125 to 697.875 MHz (TV 46 to Operating instructions (x1) 51 channels) frequency range, please contact your nearest Sony office or authorized dealer. ©2007 Sony Corporation. All rights reserved. Distributed by Reproduction in whole or in part without written permission is prohibited.

This manual is also suitable for:

Dwa-01dDwr-s01d
