The cornerstone of Roland's Audio and Visual Solution
Digital Audio Transfer & Mixing System
48 channels / 18 buses / 56-bit processing
Live Mixing Console
M-400
Multi Channel Digital Audio Transfer System
www.rolandsystemsgroup.net
Copyright 2007 Roland Corporation. All rights reserved.
All specifications and appearances are subject to change without notice.
Oct. 2007 RAM-7009 GEN
Advertisement
Related Manuals for Roland V-Mixer M-400
Summary of Contents for Roland V-Mixer M-400

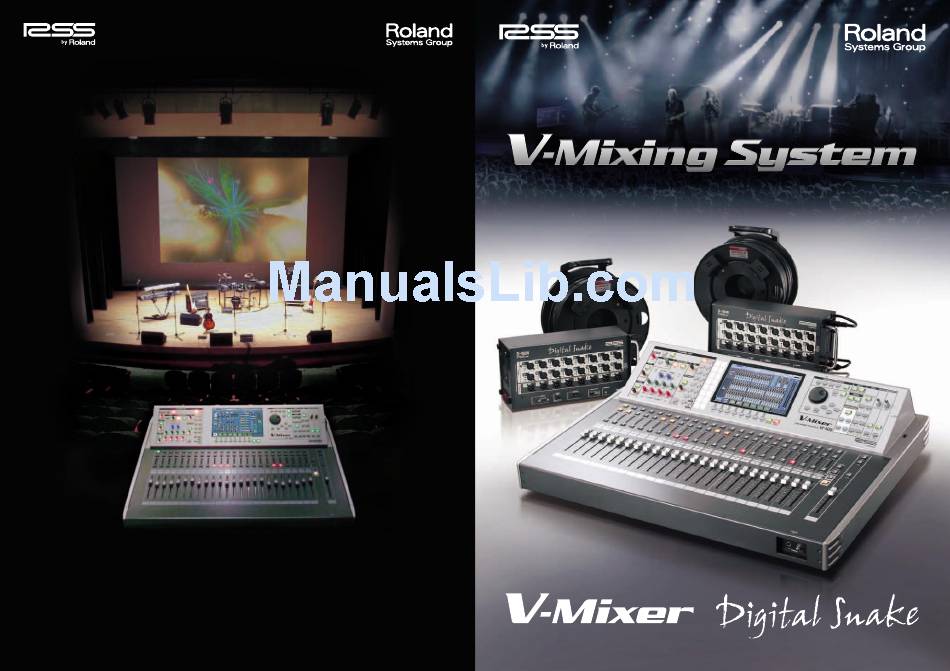

- Page 1 The cornerstone of Roland's Audio and Visual Solution Digital Audio Transfer & Mixing System 48 channels / 18 buses / 56-bit processing Live Mixing Console M-400 Multi Channel Digital Audio Transfer System www.rolandsystemsgroup.net Copyright 2007 Roland Corporation. All rights reserved.
- Page 2 Following Scene Recall with Head Amp Gain these leading edge products, Roland is now launching a total mixing solution based its powerful REAC technology. From digital snakes on stage, to Cat5e audio distribution, to the intuitive M-400 control surface and mixing processor with built in linear recording, to digital splits for direct multi-channel PC recording;...
- Page 3 Cat5e cable from the REAC Split port on the M-400 V-Mixer to a gigabit network port on your PC running Cakewalk’s SONAR software. By using Roland’s V-LINK protocol you can connect the V-Mixing System to the Edirol V-440HD Multi format Video Mixer for a completely integrated audio and video performance solution.
- Page 4 The compact/lightweight M-400 provides 48 channels and 16 AUX buses plus Main The M-400 Mixer provides intuitive and easy operation for all L/R outputs. This is an all-in-one design featuring Digital Effects processors, channel Live Mixing Console M - 4 0 0 and bus DSP and stereo linear file recording/playback function using a USB Memory V-Mixing system functions.
-
Page 5: Channel Edit
The high contrast color LCD makes it easy to make precise edits and change parameters for all The large, bright 800 x 480 color LCD gives a very clear view of of the M-400’s functions. Dedicated, accessible buttons call up large displays for editing all important console processing, routing and other functions. - Page 6 To integrate the video system to the audio system in a live recording shoot, use the Edirol VC-300HD Multi-format very common. Roland provides an integrated, Audio & Visual solution. Video Converter to precisely adjust audio and video sync before outputing to HD and SD video recording devices.
- Page 7 RSS Digital Snakes are an integral part of the V-Mixing System. Compact and portable, they Simple and flexible digital snake stage units provide Superb offer many flexible configurations for any installation. The high quality 24-bit remote-controlled mic pre-amps enable digital conversion of the audio signal very close to the sources, providing Sound Quality.
- Page 8 200 microseconds. * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice. V-Mixer M-400/Digital Snake S- 1 608 Dimensions V-Mixer M-400...
