JBL AM5212/66-WH Technical Manual

Technical Manual
JBL AM5212/66-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 Ohms
• Transducer Power LF: 400W (1600W peak), 2 hrs
Rating (AES): 300W (1200W peak), 100 hrs
HF: 40W (160W peak), 2 hrs
• Long-Term Power Passive mode: 300W (1200W peak),
Rating (IEC): 100 hrs
• Frequency Response: 43 Hz - 20 kHz (±3 dB)
• Frequency Range: 37 Hz - 20 kHz (-10 dB)
• Maximum SPL:
Bi-amp mode: LF: 122 dB-SPL cont avg (128 dB peak)
HF: 130 dB-SPL cont avg (136 dB peak)
Passive mode: 121 dB-SPL cont avg (127 dB peak)
• System Sensitivity: Passive mode: 96 dB SPL
1 watt @ 1 meter
• Crossover Frequency: 2 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not For Sale)
• Grille: 338163-007, 338163-107 (WH)
PACKAGE
Warranty
59660
Installation Sheet
339390-060
Sticker, Logo
339397-001
Bag
21784
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
SYSTEM COMPONENTS:
• Low Frequency Driver:
Transducer:
• DC Resistance:
• High Frequency
Transducer::
• DC Resistance:
• Crossover Network:
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test:
B. L.F. Aural Sweep Test:
C. H.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
• Net Weight:
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.

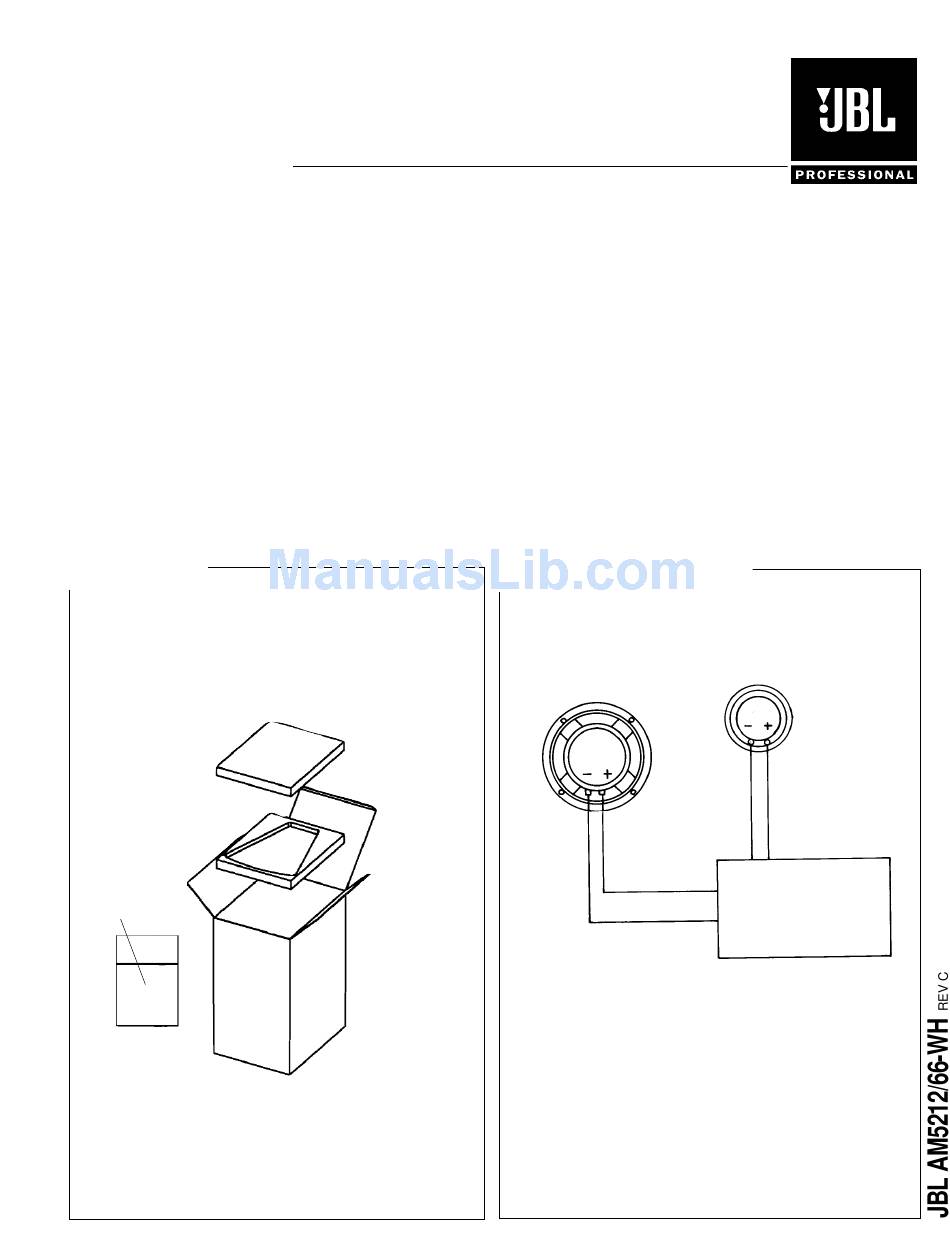

WIRING DIAGRAM

Driver, Low Freq.
262H-1
(363916-003X)
Cone Repl
C8R262
GRN/BLK
Carton
352188-001
Filler (2)
352187-001
PKG,Microfoam (4)
49790P
20" x 18" Sheets
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
(CONT'D)
262H-1, 300 mm (12 in) driver
with 50.8 mm (2 in) dual voice coil
5.5 ohm +/- 10%
2408H-1, 38 mm (1.5 in) exit
compression driver,38 mm (1.5 in)
voice coil
4.80 ohm +/- 0.2 ohm
443547-001
7.0V Input, 20 Hz to 20 kHz
7.0V Input,10 Hz to 1 kHz
0.75V Input, 200 Hz to 1.5 kHz
713 x 371 x 458 mm D
(28.06 x 14.6 x 18.1in.D.)
45 lb (20.2 kg.)
Driver, High Freq
2408H-1
(365011-001X)
Diaph Repl
D8R2408-1
YEL/BLK
GRN
Network Assembly
443547-001
SEE NETWORK SCHEMATIC PAGE
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
YEL
01-10
