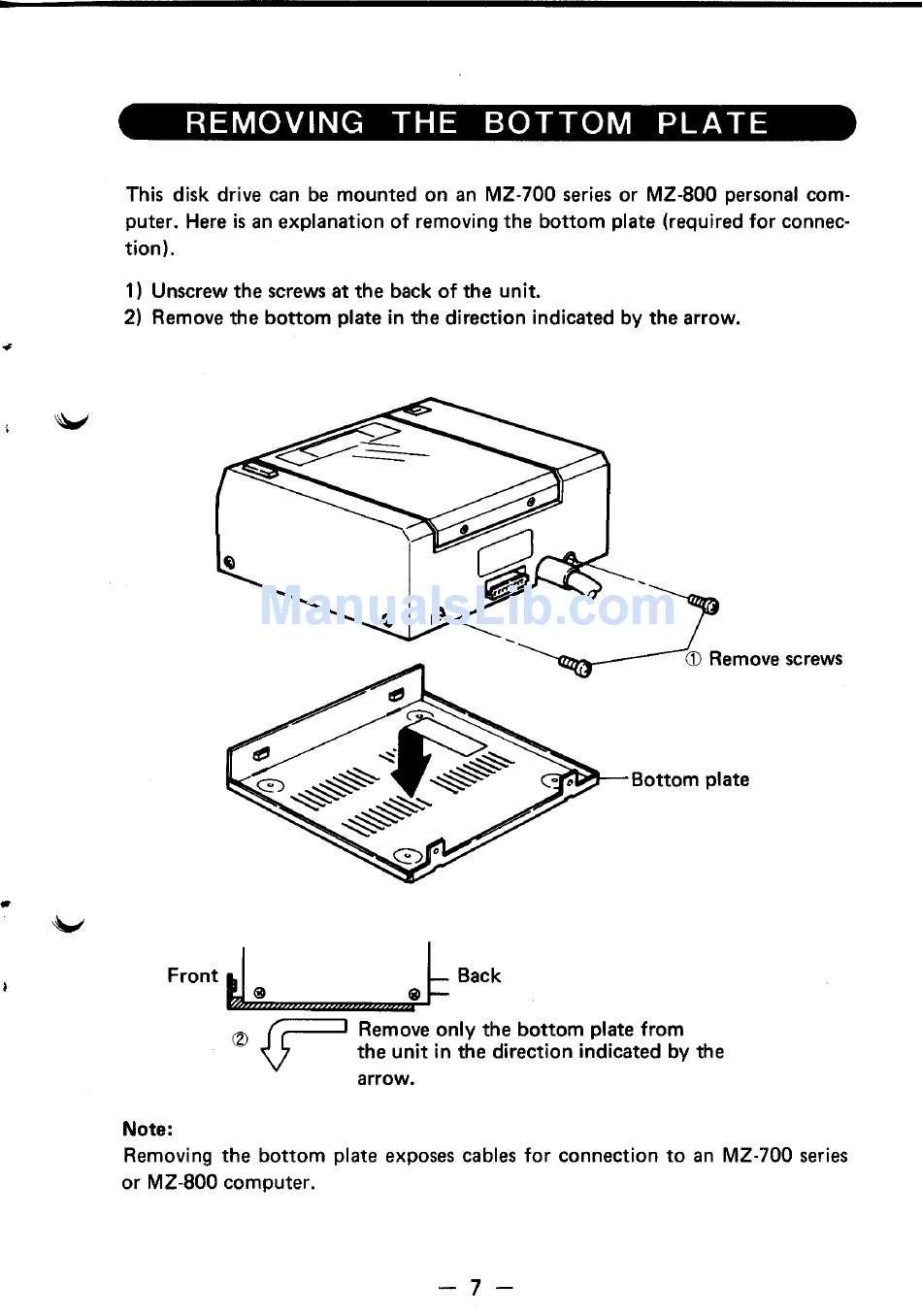

REMOVING THE BOTTOM PLATE
This disk drive can be mounted on an MZ-700 series or MZ-800 personal com-
puter. Here is an explanation of removing the bottom plate (required for connec-
tion).
1) Unscrew the screws at the back of the unit.
2) Remove the bottom plate in the direction indicated by the arrow.
Bottom plate
Front
1!il~=~======®:...Jb
Back
Note:
((===J
Remove only the bottom plate from
C2l
V
the unit in the direction indicated by the
arrow.
Removing the bottom plate exposes cables for connection to an MZ-700 series
or MZ-800 computer.
- 7 -
