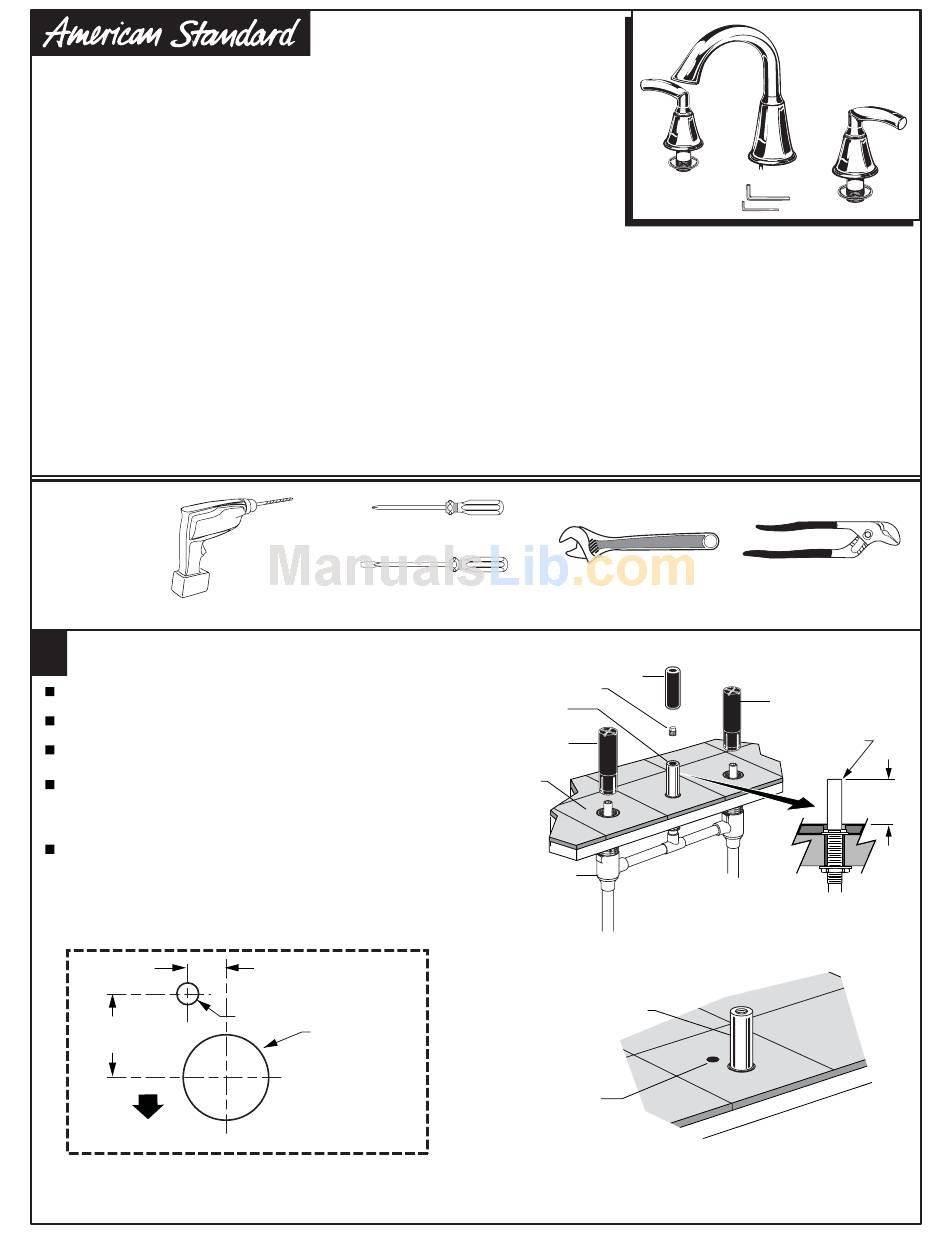

American Standard Tropic Deck Kit T038.900 Installation Instructions

DECK MOUNT
TUB SYSTEMS
TROPIC TRIM KIT
with
EverClean™ Finish
Congratulations on purchasing your American Standard
faucet with EverClean finish found only on American
Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Required Tools
1
SPOUT INSTALLATION
Complete FINISHED DECK before trim installation.
Turn off the water supplies.
Remove the GUARDS (1) from the VALVE BODIES (2). Remove the
GUARD (3) and 1/4" PLUG (4) from the SPOUT SHANK (5).
The SPOUT SHANK (5) height should be 1" to 2" above the FINISHED
DECK. Cut the SPOUT SHANK (5) if necessary. Remove all burrs
and bevel the end of the shank. Failure to do so may damage
the SPOUT O-ring during installation and cause water leakage.
Drill a 3/16" hole in the finished deckfor spout locking pin. See
TEMPLATE for location.
19.8mm
(23/32")
FRONT
Instructions
Phillips Screwdriver
Flat Blade Screwdriver
Drill with 3/16" bit
8.4mm
(21/64")
3/16" DIA. HOLE
18.6mm DIA.
(47/64")
SPOUT SHANK
TEMPLATE FOR
SPOUT ROLL
PIN LOCATION
Installation
T038.900
4
5
1
FINISHED
DECK
2
3/16" DRILLED
HOLE
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
Adjustable Wrench
Channel Locks
3
1
5
M 9 6 8 8 9 6
REMOVE ALL
BURRS AND
BEVEL
1"- 2"
