American Standard Bath/Shower Trim Kit T331.000 Installation Instructions

Contemporary
BATH/SHOWER TRIM KIT
with
EverClean™ Finish
Congratulations on purchasing your American Standard
faucet with EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

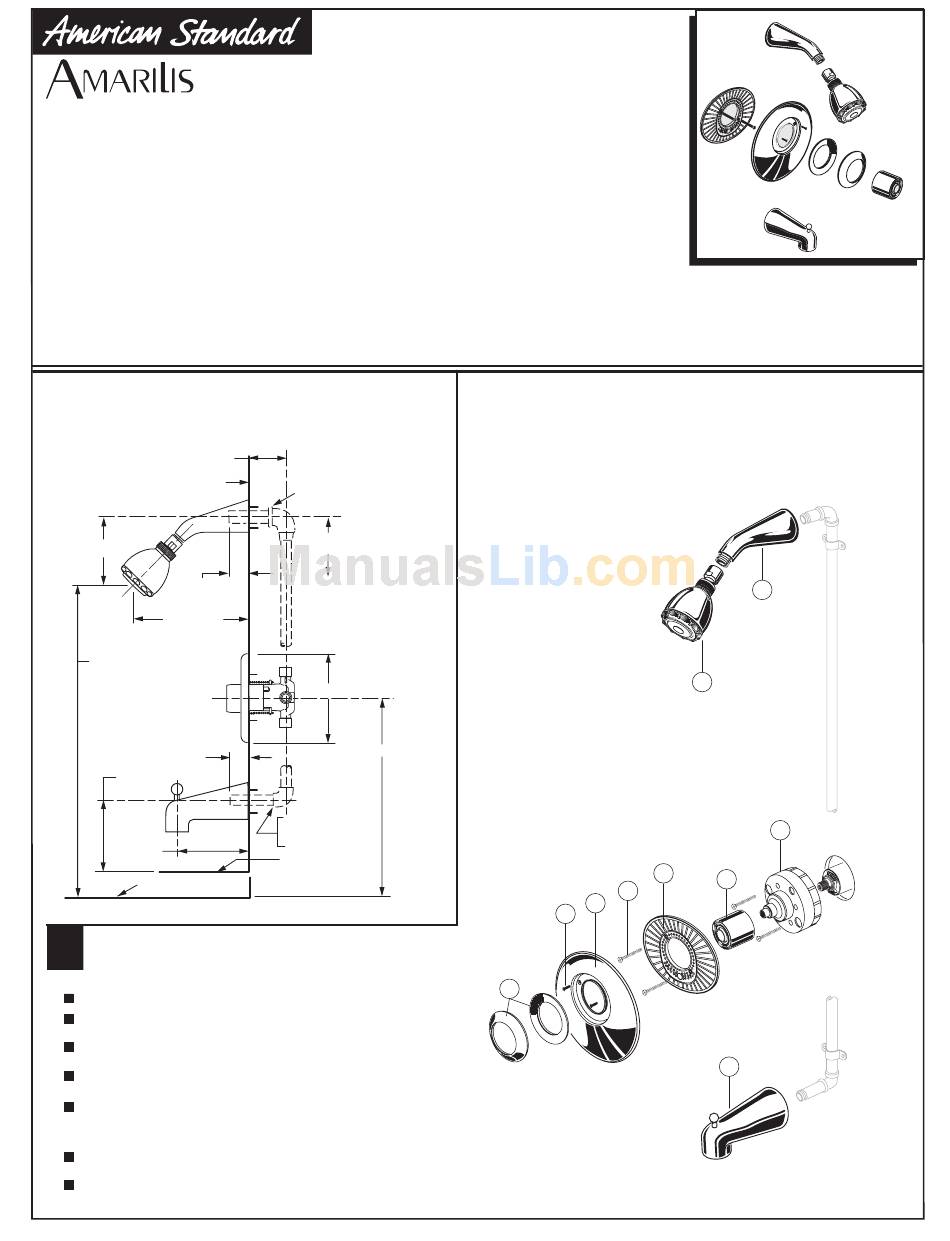

ROUGHING-IN DIMENSIONS
To assure proper positioning in relation
to wall, note roughing-in dimensions.
1-5/8"" TO 3-1/4"
FINISHED WALL
7"
1-1/2" REF.
5-1/2" REF.
74" FOR HEAD CLEARANCE
1/2" REF.
4"
5" REF.
BOTTOM OF TUB
1
INSTALL TRIM
Remove PLASTER GUARD (1).
Push CAP (2) on valve, place ESCUTCHEON HOLDER
(3) and attach with LONG SCREWS (4).
Place ESCUTCHEON (5) and attach with SHORT
SCREWS (6).
Choose one of the DECORATIVE RINGS (7)
and push it onto CAP (2).
Install HANDLE. See separate
"Instruction Sheet"for assembly
of handle.
Install SHOWER ARM (8), SHOWER
HEAD (9) and DIVERTER SPOUT (10).
Check proper operation of HANDLE
and DIVERTER SPOUT (10).
1/2" NPT
OPTIONAL TO FINISHED
FLOOR USUALLY 65" TO 78"
6"
48"
1/2" NPT
TOP OF TUB RIM
Installation
Instructions
T335.000
T332.000
T331.000
3
4
5
6
7
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
M968384 R e v. 1 . 1
8
9
1
2
10
