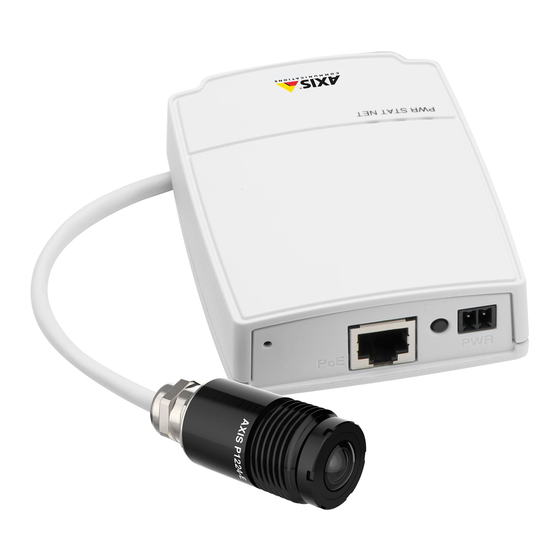

AXIS P1224–E Network Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1224–E and is the answer not in the manual?

Questions and answers

Related Manuals for Axis P1224–E

Summary of Contents for Axis P1224–E

  • Page 1: User Manual

    AXIS P1224–E Network Camera User Manual...
  • Page 2 Axis Communications AB. See Contact Information on page 3 . may also be beneficial, for developing shell scripts and applications. Later versions of this document will be posted to the Axis website, Electromagnetic Compatibility (EMC) as required. See also the product’s online help, available via the This equipment has been designed and tested to fulfill applicable web-based interface.
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff (selected countries only) •...

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    AXIS P1224–E Network Camera Hardware Overview Hardware Overview Power indicator LED Status indicator LED Network indicator LED SD card slot (microSD card) Camera connector I/O connector Main unit Network connector (PoE) Control button 10 Power connector 11 Mounting rail 12 Sensor unit...

  • Page 6: Connectors And Buttons

    AXIS P1224–E Network Camera Hardware Overview NOTICE TICE TICE Make sure that the wires stay in the correct order and that the cable shield makes good contact with the connector shield. 6. Use a crimping tool to fasten the connector to the cable.

  • Page 7: Led Indicators

    Resetting the product to factory default settings. See page 43. • Connecting to an AXIS Video Hosting System service. See page 36. To connect, press and hold the button for about 1 second until the Status LED flashes green. •...

  • Page 8: Accessing The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 9: The Live View Page

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 43) or by resetting the product to factory default.
  • Page 10 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 11 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS P1224–E Network Camera Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 13 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime adds latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Setting Up The Product

    Setting Up the Product Setting Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video

    Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • The Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image The default image settings can be configured under Video>...

  • Page 16: Stream Profiles

    To create a new profile or modify an existing profile, go to Setup > Video > Stream Profiles. To select a default stream profile for the Live View page, go to Setup > Live View Config. Camera Settings The Video > Camera Settings page provides access to advanced image settings for the Axis product.

  • Page 17: Overlay

    White Balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Page 18: Privacy Mask

    To set up a dynamic mask, which will always mask the specified part of monitored area, see Privacy Mask on page 18. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors.
  • Page 19 AXIS P1224–E Network Camera Video You can add a new mask, re-size the mask with the mouse, choose a color for the mask, and give the mask a name. For more information, see the online help Important Adding many privacy masks may affect the product’s performance.

  • Page 20: Live View Config

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 21 Defining the link as a web link will open the link in a new window. Output Buttons External I/O devices connected to the Axis product’s output ports can be controlled directly from the Live View page. To display output buttons in the Live View page: 1.

  • Page 22: Detectors

    Motion Detection Parameters on page 23. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Setting Up an Action Rule on page 28.

  • Page 23: Motion Detection Parameters

    AXIS P1224–E Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.
  • Page 24 AXIS P1224–E Network Camera Detectors Note • To trigger on small objects or movements, use several small motion detection windows rather than one large window and select a low object size. • To avoid triggering on small objects, select a high object size.

  • Page 25: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 26 AXIS P1224–E Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 27: Events

    Events The Axis product can be configured to perform actions when different events occur, for example, start a recording when motion is detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.

  • Page 28: Setting Up An Action Rule

    AXIS P1224–E Network Camera Events Setting Up an Action Rule An action rule defines the conditions that must be met for the product to perform an action, for example record video or send an email notification. If multiple conditions are defined, all of them must be met to trigger the action.

  • Page 29: Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 33.

  • Page 30: Recurrences

    AXIS P1224–E Network Camera Events To set up a recurrence: 1. Go to Events > Recurrences and click Add. 2. Enter a descriptive name and recurrence pattern. 3. Click OK. To use the recurrence in an action rule, first select Time from the Trigger drop-down list in the Action Rule Setup page and then select the recurrence from the second drop-down list.

  • Page 31: Recording List

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. See Storage on page 39 for more information about storage devices. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 32: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 33 Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 34: Date & Time

    To include date and time in the overlay text, go to Video and select Include date and Include time. Network Basic TCP/IP Settings The Axis product supports IP version 4 and IP version 6. Both versions can be enabled simultaneously, and at least one version must always be enabled.
  • Page 35 System Options IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 36 To make manual settings, select Use the following DNS server address and specify the following: Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separated by semicolons. The host name is always the first part of a fully qualified domain name, for example, myserver is the host name in the fully qualified domain name myserver.mycompany.com where mycompany.com is the domain name.
  • Page 37 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 38 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Page 39: Storage

    To use SNMP v3, HTTPS must be enabled, see HTTPS on page 32. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings on page 43. UPnP The Axis product includes support for UPnP .

  • Page 40: Network Share

    6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools. To avoid filling the share, it is recommended to remove recordings continuously. Under Recording Settings, select Remove recordings older than and select the number of days or weeks.

  • Page 41: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 42: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the...

  • Page 43: Reset To Factory Default Settings

    System Options Plain Config Plain Config is for advanced users with experience of Axis product configuration. Most parameters can be set and modified from this page. To open Plain Config, go to System Options > Advanced > Plain Config. Axis Support does not provide assistance.

  • Page 44: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s web pages.

  • Page 45: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 46 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 47 AXIS P1224–E Network Camera Troubleshooting Storage and disk management problems Storage disruption A storage disruption alarm is sent if a storage device is unavailable, removed, full, locked or if other read or write problems occur. To identify the source of the problem, check the System Log under System Options >...

  • Page 48: Technical Specifications

    AXIS Video Hosting System (AVHS) with One-Click Camera Connection. ONVIF Profile S; specification at www.onvif.org AXIS Media Control SDK (available at www.axis.com), event trigger data in video stream Quality of Service (QoS) layer 3, DiffServ Model Embedded Linux operating system...
  • Page 49 Mounting kit, Installation Guide, AVHS Authentication key, Installation and Management accessories Software CD, Windows decoder 1-user license Video AXIS Camera Companion (software included on CD) - basic surveillance for small management businesses, where video is recorded to edge storage software (sold...

  • Page 50: Connectors

    AXIS P1224–E Network Camera Technical Specifications Item Specifications Function/group Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty Connectors I/O Connector 4-pin terminal block for: • Auxiliary power (DC output) • Digital Input • Digital Output • 0 V DC (-)

  • Page 51: Performance Considerations

    AXIS P1224–E Network Camera Technical Specifications Power Connector 2-pin terminal block for power input. DC power input Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A.
  • Page 52 User Manual Ver. M3.2 AXIS P1224–E Network Camera Date: May 2014 © Axis Communications AB, 2014 Part No. 57828...
