Quick Start Guide

Sound Card Connection

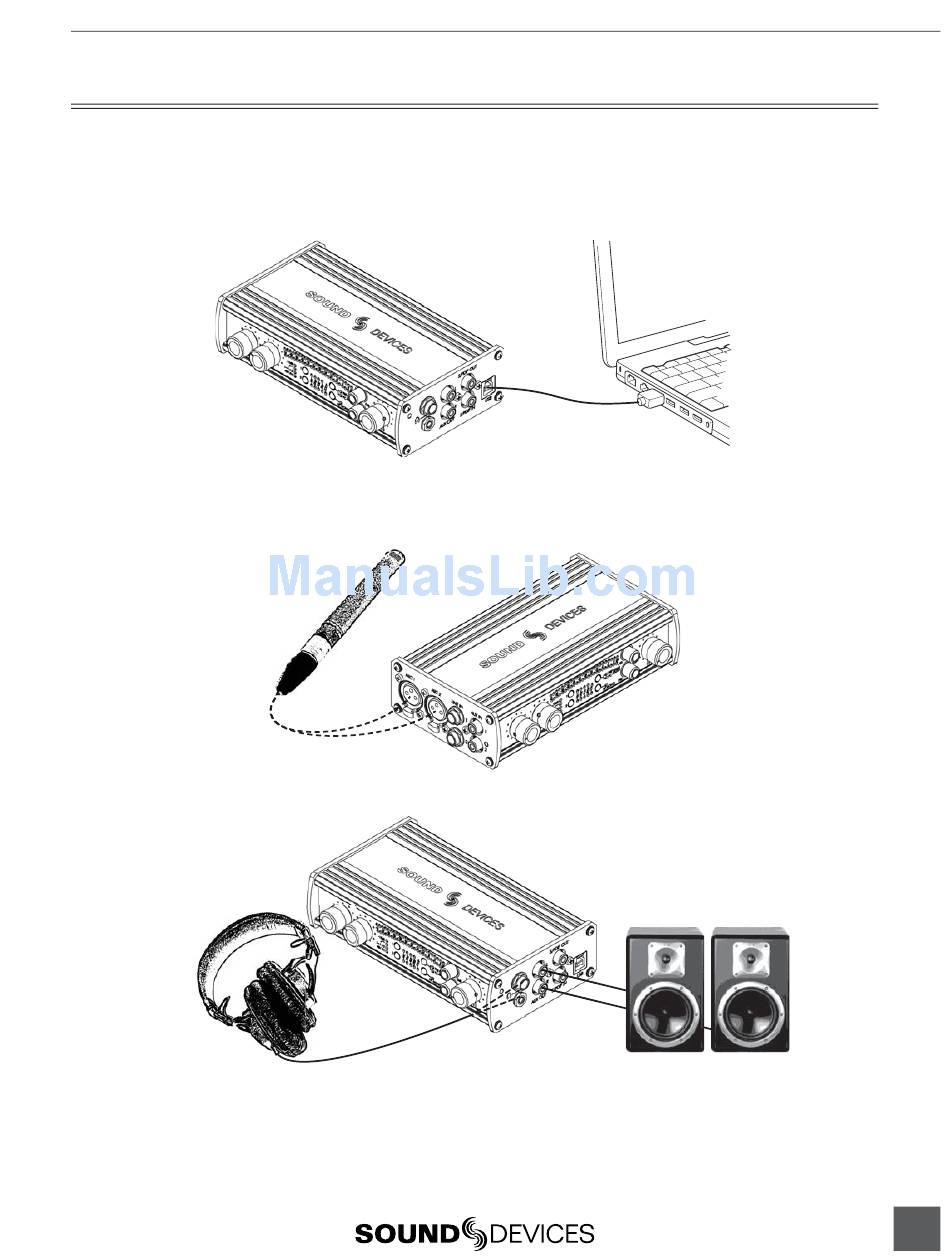

1. Attach the "A" plug of the (supplied) USB cable into an available "A" socket on the computer. Attach
the "B" plug of the USB cable into the "B" socket on the USBPre 2. The USBPre 2's meter LED's will il-
luminate sequentially, indicating the USBPre 2 is connected and booting up properly.
2. Check to see that the operating system has recognized the USBPre 2 and designated the USBPre 2 as the
default sound card.
3. Connect an audio source.
4. Connect headphones or other monitoring equipment.
Headphones
Powered monitors with balanced analog inputs can also be attached to
the XLR outputs on the back panel of the USBPre 2.
5. Press the Input Select button repeatedly until the proper Input Source LED is illuminated for the input
you will be recording.
See Installation and Connection.
See Inputs.
USBPre 2 User Guide and Technical Information
Powered Monitors
