2. Select the USBPre 2 from the
and bit depth as desired from the dropdown menus in the Audio Input section and the Audio Output
section.

Windows Installation and Connection

The USBPre 2 is an Audio Device Class USB standard peripheral. No proprietary drivers are re-
quired to operate the USBPre 2 under Windows. The fi rst time the USBPre 2 is plugged in, Windows
will install standard USB Audio Device Class drivers automatically.
Before connecting the USBPre 2, quit all open applications that use audio. An application that is
running when the USBPre 2 is connected may not recognize the USBPre 2 until the application is
restarted.

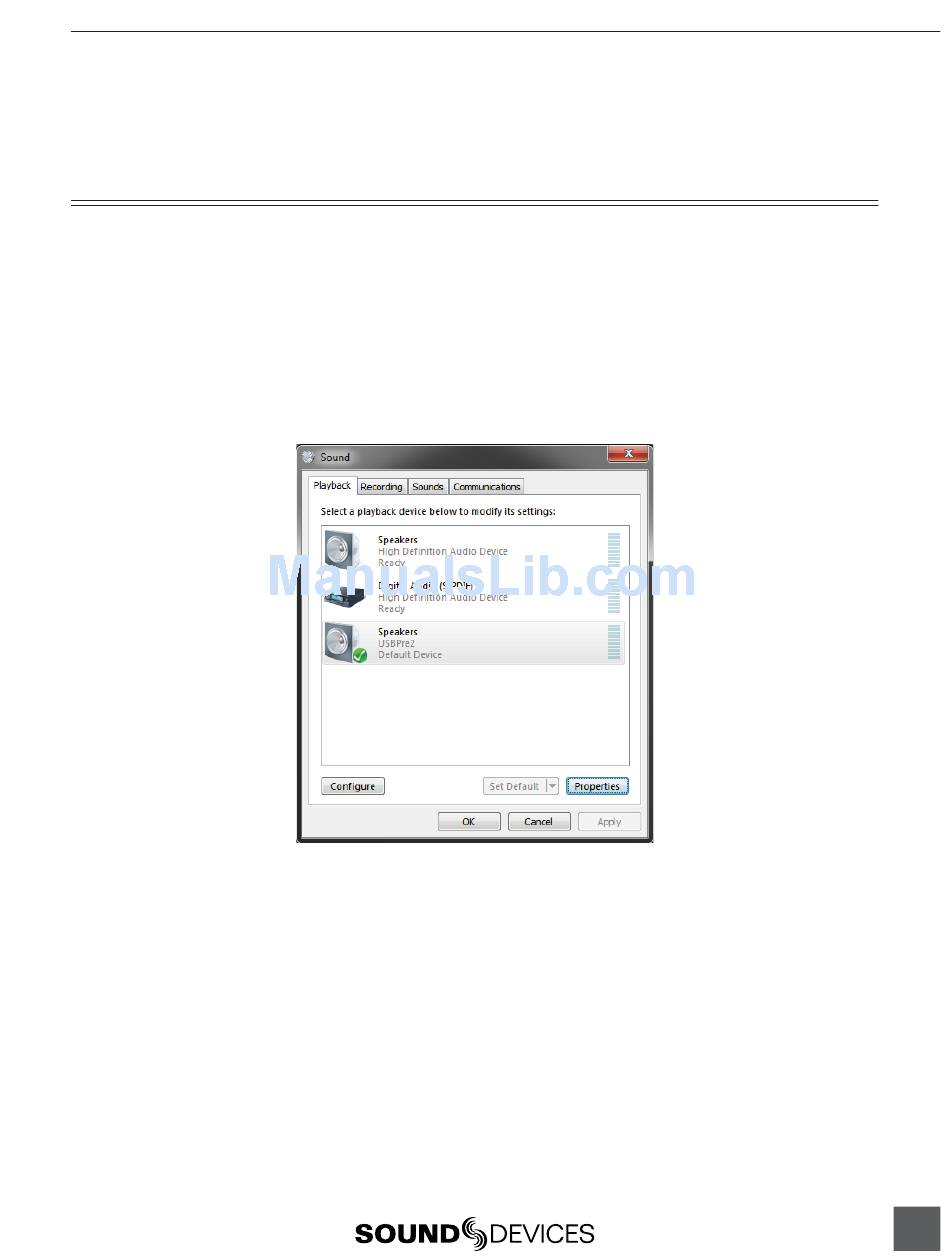

Windows 7 and Vista Sound Control Panel

1. Follow
Start> Control Panel> Sound.
2. Click the Playback tab.
3. Click to select the item labeled "USBPre2" in the list of devices.
4. Click the Set Default button. A green check mark icon will appear next the the USBPre 2 entry and the
phrase "Default Device" will appear below the entry, indicating that the USBPre 2 is now the default
playback device.
5. Click the Recording tab and repeat and repeat steps 3 and 4 to make the USBPre 2 the default recording
device.
USBPre 2 User Guide and Technical Information
Properties For dropdown menu, then set the sample rate, channel count,
