Mitsubishi Electric MXZ-3b30NA Submittal Data

subMIttAL DAtA: MXZ-3b30NA
Job Name:
Purchaser:
Submitted to:
Unit Designation:
GENERAL FEAtuREs

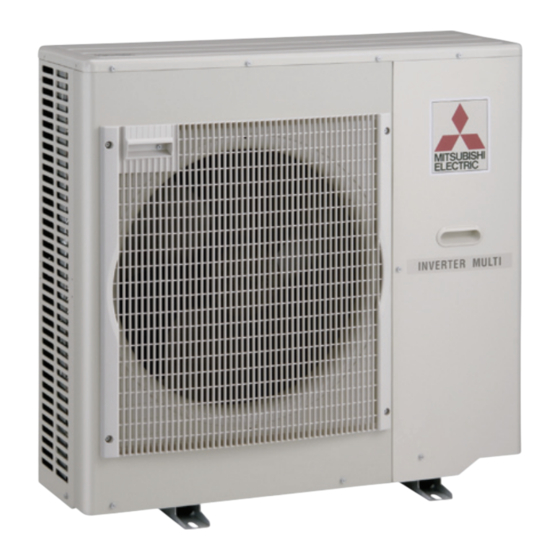

• Compact side discharge outdoor
unit
• Wireless or wired remote controller,
depending on the indoor units used
• Quiet operation—both indoor and
outdoor units
• Automatic fan speed control
• Auto restart following power outage
• Self-check function—integrated
diagnostics
• Advanced microprocessor control
• Limited warranty: five years on parts and
defects and seven years on compressors
OPtIONAL OutDOOR uNIt AccEssORIEs
• Air Outlet Guide (MAC-856SG)
• 3/8" x 1/2" Port Adapter (MAC-A454JP-E)
• 1/2" x 3/8" Port Adapter (MAC-A455JP-E)
• 1/2" x 5/8" Port Adapter (MAC-A456JP-E)
• 1/4" x 3/8" Port Adapter (PAC-493PI)
• 3/8" x 5/8" Port Adapter (PAC-SG76RJ-E)
cooling*
Rated Capacity (Non-ducted/Ducted) . . . 28,400 Btu/h / 27,400 Btu/h
Minimum Capacity (Non-ducted/Ducted) . . 12,600 Btu/h / 12,600 Btu/h
Total Input (Non-ducted/Ducted) . . . . . . . . . . . . . . 3,120 W / 3,330 W
Heating at 47°F*
Rated Capacity (Non-ducted/Ducted) . . . 28,600 Btu/h / 27,600 Btu/h
Minimum Capacity (Non-ducted/Ducted). . 11,400 Btu/h / 11,400 Btu/h
Total Input (Non-ducted/Ducted) . . . . . . . . . . . . . . 2,150 W / 2,220 W
Heating at 17°F*
Rated Capacity (Non-ducted/Ducted) ...16,000 Btu/h / 15,100 Btu/h
Total Input (Non-ducted/Ducted). . . . . . . . . . . . . 2,120 W / 2,190 W
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB / 67ºF (19ºC) WB. Outdoor: 95ºF (35ºC)
DB / 75ºF (24ºC) WB.
(Heating) - Indoor: 70ºF (21ºC) DB / 60ºF (16ºC) WB. Outdoor: 47ºF (8ºC) DB / 43ºF (6ºC) WB.
(Heating at 17ºF) - Indoor: 70ºF (21ºC) DB / 60ºF (16ºC) WB. Outdoor: 17ºF (-8ºC) DB / 15ºF
(-9ºC) WB.
(For data on specific indoor units [all ducted, all non-ducted, and both ducted
and non-ducted] combinations, see the technical and service Manuals.)
cOMPAtIbLE INDOOR uNIts AND AssOcIAtED REMOtE cONtROLLERs
Horizontal-ducted Indoor units: sEZ-KD09,12,15,18NA, & PEAD-A24AA
Wall-mounted Indoor units: MsZ-GE06,09,12,15,18NA, MsZ-GA24NA
Wall-mounted Indoor units:
MsZ-FE09,12NA
Refer to the separate submittal forms for the sEZ, PEAD, MsZ, MFZ, PcA, and PLA Indoor units.
Outdoor Unit: MXZ-3B30NA
Remote Controller PAR-21MAA -
Packaged with SEZ and PEAD
Wireless Remote Controller -
Packaged with MSZ-GE, -GA,
-FE, and MFZ-KA (Optional Wired
PAR-21MAA Remote Controller)
Floor-standing Indoor units:
MFZ-KA09,12,18NA
MuLtI-INDOOR INVERtER HEAt-PuMP sYstEM
Location:
Engineer:
For Reference Approval
Schedule No.:
Electrical Requirements
Power Supply . . . . . . . . . . . . . . . . . . . . 208 / 230V, 1-Phase, 60 Hz
Recommended Fuse/Breaker Size. . . . . . . . . . . . . . . . . . . . . . .20 A
MCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 A
Voltage
Indoor - Outdoor S1-S2 . . . . . . . . . . . . . . . . . . . . . . AC 208 / 230V
Indoor - Outdoor S2-S3 . . . . . . . . . . . . . . . . . . . . . . . . DC 12 - 24V
OPERAtING RANGE
Indoor Intake Air Temp.
Maximum 95ºF (35ºC) DB, 71ºF (22ºC) WB 115ºF (46ºC) DB
Cooling
Minimum 67ºF (19ºC) DB, 57ºF (14ºC) WB 14ºF (-10ºC) DB
Maximum 80ºF (27ºC) DB, 67ºF (19ºC) WB 75ºF (24ºC) DB, 65ºF (18ºC) WB
Heating
Minimum 70ºF (21ºC) DB, 60ºF (16ºC) WB 6ºF (-14ºC) DB, 5ºF (-15ºC) WB
Compressor . . . . . . . . . . . . . . . . . . DC Inverter-driven Twin Rotary
Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.93 F.L.A.
Sound Pressure Level
Cooling (Non-ducted/Ducted) . . . . . . . . . . . . . . . . . . . . . . . 49 dB(A)
Heating (Non-ducted/Ducted). . . . . . . . . . . . . . . . . . . . . . . 49 dB(A)
DIMENsIONs
W
D
H
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 lbs. / 68 kg
External Finish . . . . . . . . . . . . . . . . . . . . . .Munsell No. 3Y 7.8 / 1.1
Refrigerant Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R410A
Refrigerant Pipe Size O.D. ― Three Ports
Gas Side. . . . . . . . . . . . . . . A: 1/2" / 12.7mm; B,C: 3/8" / 9.52 mm
Liquid Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" / 6.35 mm
Max. Refrigerant Pipe Length. . . . . . . . . . . . . . . . . . . . . 230' / 70 m
Max. Piping Length for Each Indoor Unit . . . . . . . . . . . . . 82' / 25 m
Max. Refrigerant Pipe Height Difference
If Indoor Unit is Above Outdoor Unit . . . . . . . . . . . . . . . . 49' / 15 m
If Indoor Unit is Below Outdoor Unit . . . . . . . . . . . . . . . . 33' / 10 m
Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flared
MXZ-3b30NA ENERGY EFFIcIENcIEs
Indoor unit
sEER
type
Non-ducted
17.5
(06 + 06 + 09)
Ducted and
16
Non-ducted
Ducted
14.5
(09 + 09 + 09)
ceiling-suspended Indoor units:
PcA-A24KA
Remote Controller PAR-21MAA -
Packaged with PCA-A24KA and PLA-A18,24BA
Date:
Construction
Outdoor Intake Air Temp.
INcHEs / MM
35-7/16 / 900
12-5/8 / 321
35-7/16 / 900
cOP @ cOP @
EER HsPF
47°F 17°F
9.1 10.5 3.9 2.77
8.7 10.0 3.8 2.775
8.2 9.5 3.64 2.78
ceiling-cassette Indoor units:
PLA-A18,24bA
