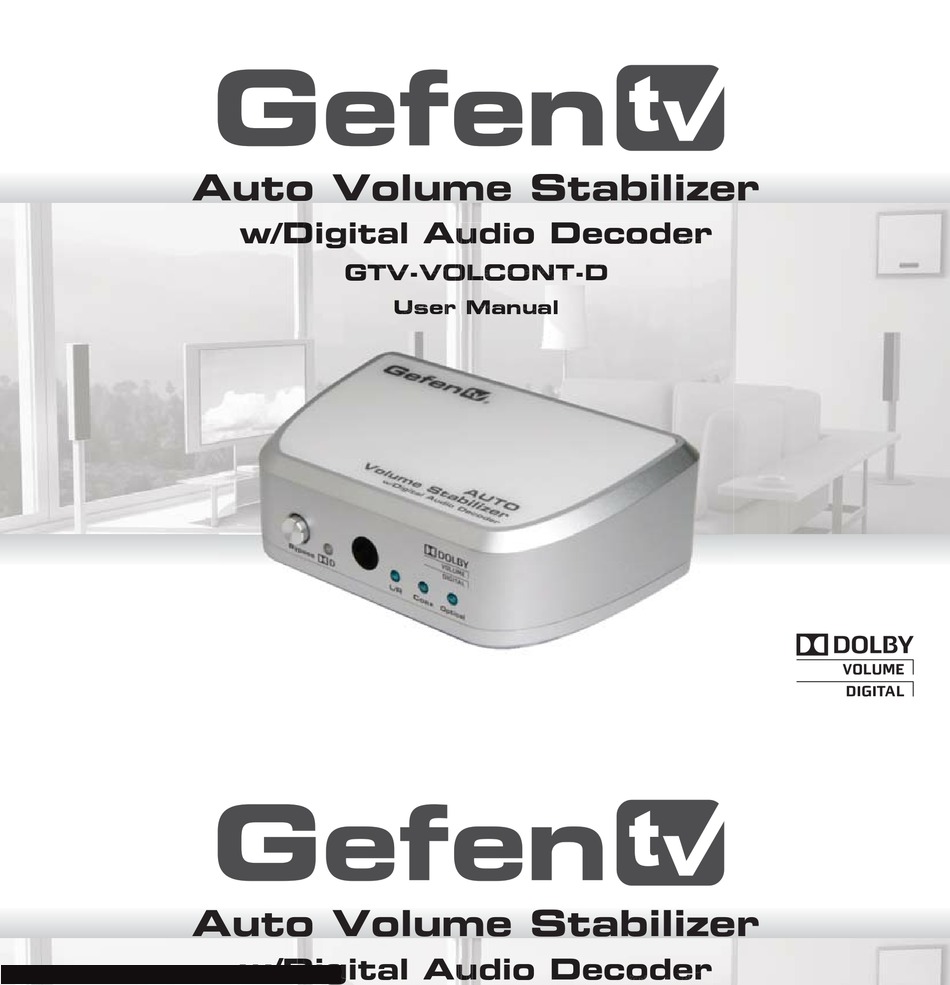

- Page 1 Auto Volume Stabilizer w/Di tal Au d io User M anua...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. GefenTV Auto Volume Stabilizer w/Digital Audio Decoder is a trademark of Gefen LLC Manufactured under license from Dolby Laboratories.
-
Page 3: Table Of Contents
CONTENTS Introduction............................... 1 Operation Notes ............................2 Features..............................3 Panel Layout ............................. 4 Panel Descriptions ........................... 5 Connecting And Operating The Auto Volume Stabilizer............... Switching Operational Modes ......................... 7 Auto Volume Stabilizer Remote Description ..................8 Specifi cations ............................9 Warranty .............................. -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Gefen TV Auto Volume Stabilizer. Your complete satisfaction is very impor- tant to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Operation Notes
The Stabilizer can be bypassed in situations where a wide dynamic range is appropriate (such as movies and classical symphony concerts where volume levelling is undesirable). • The IR Remote Control allows operation of the Gefen TV Auto Volume Stabilizer from a comfortable distance. •... -
Page 6: Features
FEATURES Features • Prevent fl uctuations in audio volume using Dolby Volume™ processing technology. • Automatic down-mixing from Dolby Digital 5.1 (AC-3) to two-channel L/R on all outputs ensures compatibility with broadcast formats. • Boosts low and high-frequency content dynamically (20 bands / channel) using an advanced psycho-acoustic modeling engine. -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel Operational Mode *BYPASS LED Color Standby RED ( Input LEDs are not glowing) Dolby Digital, Dolby Volume ON BLUE Dolby Digital , Dolby Volume OFF Purple (RED + BLUE) PCM , Dolby Volume On Blank ( LED is not glowing) PCM , Dolby Volume Off... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS Bypass Button Input Select Button Used to place the unit in Bypass Mode, Used to select between L/R audio, Coax, and allowing the signal to pass through Optical inputs unmodifi ed. Optical (TOSLINK) Input Connect an Optical cable from this port to the Bypass LED Indicated the current operational mode of the Optical output port on the A/V equipment... -
Page 9: Connecting And Operating The Auto Volume Stabilizer
CONNECTING AND OPERATING THE AUTO VOLUME STABILIZER How to Connect the Gefen TV Auto Volume Stabilizer Connect the audio source to the Audio Input section of the GefenTV Auto Volume Stabilizer using the Optical, Coax and / or L/R analog audio cables. -
Page 10: Switching Operational Modes
(ideal for movies and pre-recorded audio). This mode is activated by pressing the BYPASS button on the front panel or the BYPASS button on the remote (Gefen SKU# GTV- VOLC-IR). When the Gefen TV Auto Volume Stabilizer is in Bypass Mode, the Bypass LED will turn RED or PURPLE (depending on the type of input signal;... -
Page 11: Auto Volume Stabilizer Remote Description
AUTO VOLUME STABILIZER REMOTE DESCRIPTION Power On/Off Bypass Select Input NOTE: A battery tab inserted to protect the battery during shipping will need to be Insert Battery (included) underneath removed to allow the unit to work. -
Page 12: Specifi Cations
SPECIFICATIONS Input (analog) ......................1x RCA-type connector Input (digital) ....................1x SPDIF RCA-type connector Input (digital) ....................1x TOSLINK optical connector Output........................1x RCA-type connector Output ..........................1x S/PDIF connector Output ......................1x TOSLINK optical connector Power supply .............................5 V DC Power Consumption (max) ........................5 W Audio Formats ...... -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev A3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
