Summary of Contents for Hoshizaki URC-14F

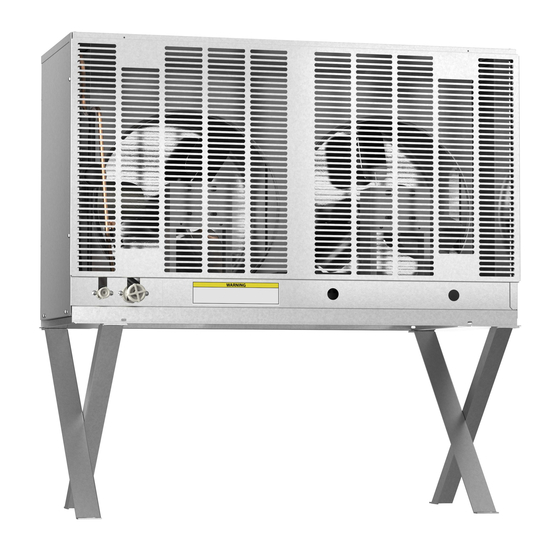

- Page 1 Hoshizaki America, Inc. “A Superior Degree of Reliability” www.hoshizaki.com Condenser Unit Model URC-14F PARTS LIST Number: 71252 Issued: 3-28-2006...
-
Page 2: Table Of Contents
CONTENTS Auxiliary Codes... 3 Note About Ordering Parts ... 3 Material Abbreviations ... 4 A. Condenser Unit ... 5 B. Junction Box ... 8 C. Accessories... 9... -
Page 3: Auxiliary Codes
Auxiliary Codes Q-5 October 2005 R-5 February 2006 Note About Ordering Parts Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately. -
Page 4: Material Abbreviations
Material Abbreviations ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene... -
Page 5: Condenser Unit
A. Condenser Unit URC-14F Q-5, R-5 10 10a... - Page 6 Title: A. Condenser Unit Model: URC-14F Index Description Junction Box Truss Head Screw Unit Base Condenser - Air-Cooled T2 Screw Shroud T2 Screw Fan Motor Hex Nut Split Lock Washer Flat Washer Fan Blade Fan Motor Bracket Hex Head Bolt w/Washer (LF) C.P.
- Page 7 Title: A. Condenser Unit Model: URC-14F Index Description Side Panel (L) T2 Screw Side Panel (R) T2 Screw Top Panel T2 Screw Material or Model Number Part Number 2A1915-01 4×8, SS 7P32-0408 2A1914-01 4×8, SS 7P32-0408 2A0900-01 4×8, SS 7P32-0408...
-
Page 8: Junction Box
B. Junction Box URC-14F Q-5, R-5 Title: B. Junction Box Model: URC-14F Index Description Junction Box (A) Bushing Bushing Capacitor T2 Screw Material or Model Number Part Number 3A3371-01 OCB-875 428394-04 SR-30-1 420472-03 250VAC, 10µf 443192-01 4×10, SS 7P32-0410 Required Number... -
Page 9: Accessories
C. Accessories URC-14F Q-5, R-5 Title: C. Accessories Model: URC-14F Index Description Hex Head Bolt w/Washer Hex Nut T2 Screw Material or Model Number Part Number 3A1704G01 8×16, SS 7B0230816 8, SS 7N12-0800 4×8, SS 7P32-0408 Condenser Unit Required Number...
