Ricatech RC800 User Manual

Portable mp4 player

Advertisement

Quick Links

RICATECH RC800 MP4 PLAYER USER GUIDE
RICATECH RC800 PORTABLE MP4 PLAYER
RC800
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ricatech RC800

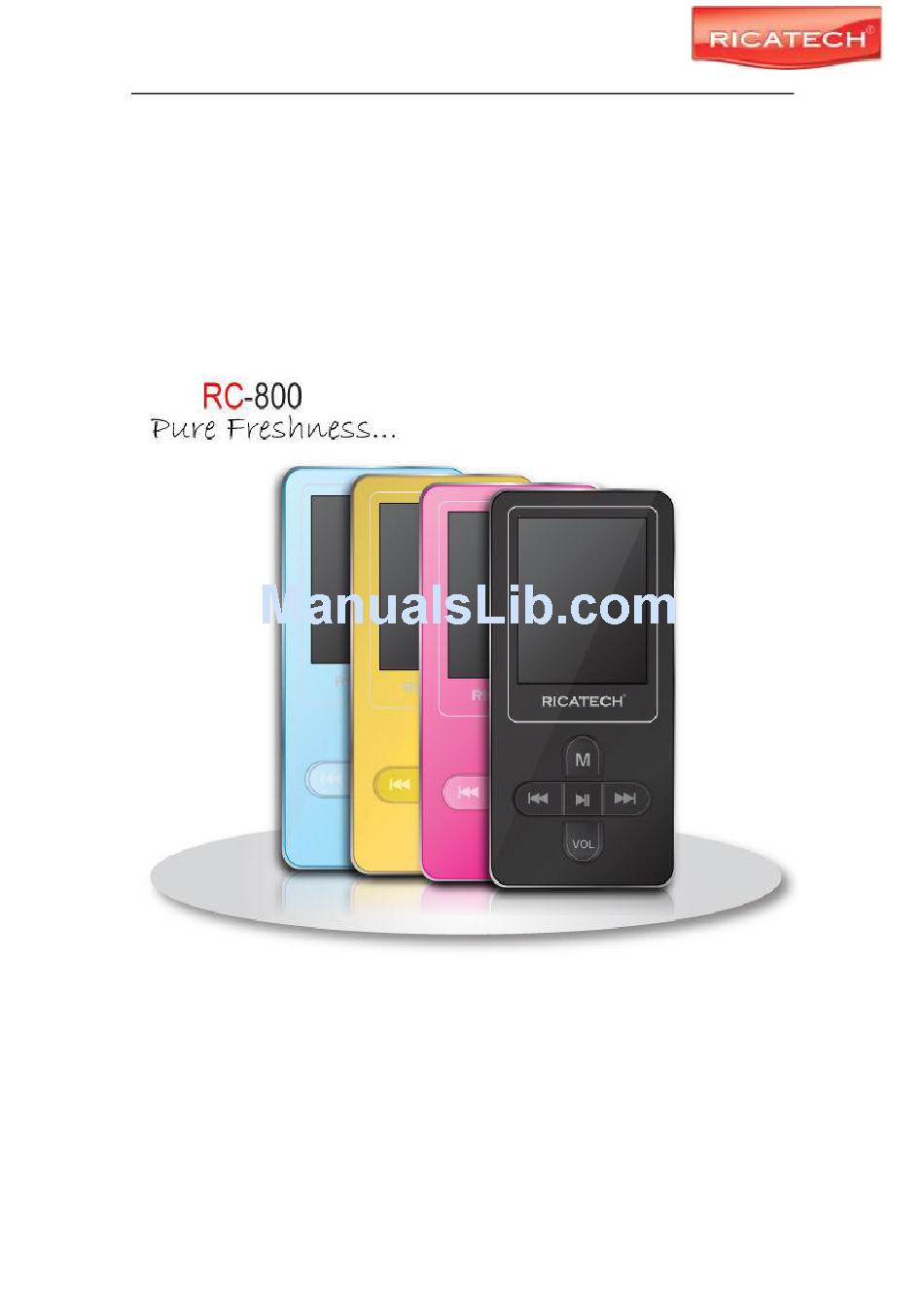

  • Page 1 RICATECH RC800 MP4 PLAYER USER GUIDE RICATECH RC800 PORTABLE MP4 PLAYER RC800 Page 1 of 16...
  • Page 2 -The player will not charge well on a shared USB connection like one on front of an ATX Housing or via an unpowered USB HUB. -Use the USB connection on the back of your computer casing, or an optional Ricatech® power adapter model RCCH03.
  • Page 3: Key Features

    Windows Me, Windows2000/XP Package Content Please check the package for the following items. If any one of them is missing, please contact the Ricatech® helpdesk with the information in the back of this booklet:  1x MP4 Player model: RC800 ...
  • Page 4: Charging The Battery

    RICATECH RC800 MP4 PLAYER USER GUIDE Double click the “My Computer”, icon. You will see a “removable disk” which represents the player. Now you can use the removable disk as a normal local disk drive, copying audio files from or to the removable disk.
  • Page 5: Keys Description

    H. Power Switch: Turn on or turn off the power USB Port: Connect to a computer J. Memory Card Slot: For inserting a Micro SD-card Note: The RC800 supports MicroSD cards up to 4GB. MicroSDHC cards are not supported! Power On/Off To power On: (1) Slide the Power Switch to the right to power on the player.
  • Page 6: Basic Operation

    RICATECH RC800 MP4 PLAYER USER GUIDE Basic operation Function Operation Play/Pause Press the PLAY/PAUSE button to play or pause. Adjust Volume (1) Shortly press the VOL button until you see a red volume icon blinking. (2) Press the PREVIOUS/NEXT button to decrease or increase volume.
  • Page 7: Playing Music

    RICATECH RC800 MP4 PLAYER USER GUIDE Playing music 9.1 Enter the music mode Press and hold the MENU button to display the main menu. Use the PREVIOUS/NEXT button to select “Music” menu, and press the MENU button to confirm selection. Now you are in the MUSIC mode, refer music playing to the basic operations.
  • Page 8: Playing Video Files

    RICATECH RC800 MP4 PLAYER USER GUIDE 10 Playing video files (For advanced users) (1) Press and hold the MENU button to display the main menu. (2) Use the PREVIOUS/NEXT button to select the “Video” menu, and press the MENU button to enter the video player mode.
  • Page 9: Browsing All Files

    RICATECH RC800 MP4 PLAYER USER GUIDE (3) Press the PREVIOUS/NEXT button to select a .txt file, and press the MENU button to open the selected file. (4) Press the PREVIOUS/NEXT button to page up or page down, or press the PLAY/PAUSE button to page up or down automatically (by setting the time interval between 1 and 5 in Settings/Auto Slide show/Text).
  • Page 10: Fm Radio (Optional)

    RICATECH RC800 MP4 PLAYER USER GUIDE (1) In the folder navigation mode, select the file that you want to delete. (2) Press and hold the VOL button until a dialogue box shows up. (3) Use the PREVIOUS/NEXT button to select “YES” and press the MENU button to confirm.
  • Page 11: Playing Game

    RICATECH RC800 MP4 PLAYER USER GUIDE button to continue. (3) Press the PREVIOUS/NEXT button to select the station that you want to delete, and press the PLAY/PASUE button to continue. (4) Press the PREVIOUS/NEXT button to select “YES” or “NO”, and press the PLAY/PAUSE to confirm.
  • Page 12 RICATECH RC800 MP4 PLAYER USER GUIDE Preset EQ Normal, 3D, Rock, Pop, Classical, Bass, Jazz, User EQ User EQ (1) Press the VOL button to switch EQ (User-defined column. equalizer setting) (2) Press the PREVIOUS/NEXT button to adjust value. (3) Repeat pressing the VOL button until...
  • Page 13: Troubleshooting

    RICATECH RC800 MP4 PLAYER USER GUIDE 19 Troubleshooting Problem Possible Cause Solution The LCD displays nothing Battery is too low. Charge the battery. when the device is started. No sound when playing an The volume is too low. Adjust the volume.
  • Page 14: Technical Specifications

    RICATECH RC800 MP4 PLAYER USER GUIDE 20 Technical Specifications Item Specification Capacity 128MB or above Battery Type Rechargeable Lithium Battery Battery Life Approx. 5 Hours LCD Display 1.8-inch TFT screen Earphone Power 5mW+5Mw Video Format AVI (XviD) Audio Format MP3, WMA...
  • Page 15 RICATECH RC800 MP4 PLAYER USER GUIDE ② Select “JPG JPEG JFIF Format” and then click “Options”. ③ Deselect the options circled in red and then press “OK” button to confirm. Page 15 of 16...
  • Page 16 RICATECH RC800 MP4 PLAYER USER GUIDE Warranty: Ricatech BV covers all products (Excl. Acessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty Warranty: All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.
