USER MANUAL
VERSION 7 · 25/07/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GOGOGATE Gate

Summary of Contents for GOGOGATE Gate

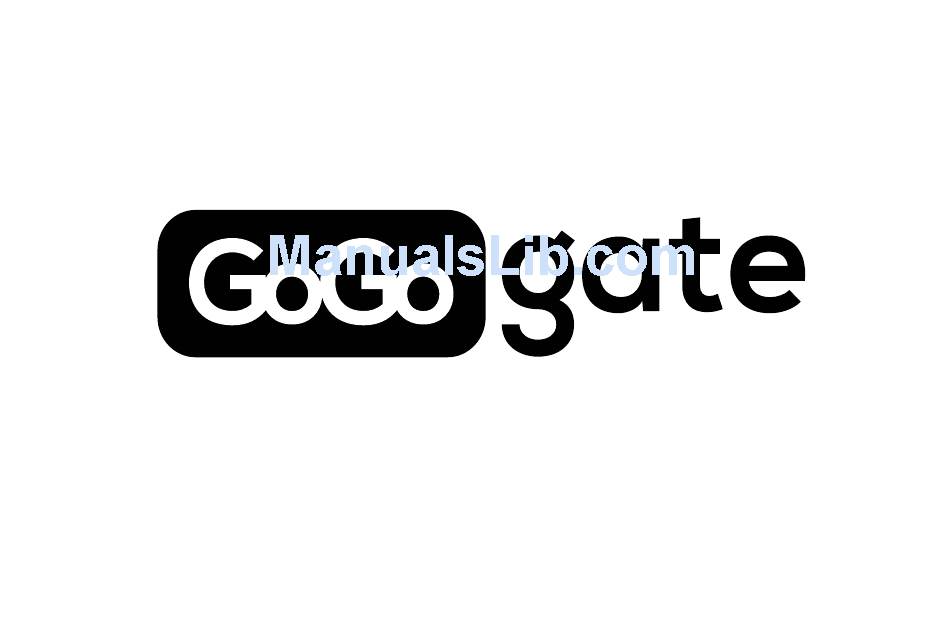

  • Page 1 USER MANUAL VERSION 7 · 25/07/2013...
  • Page 2 1. What’s in the Box: NOTE: The memory card is already inserted in your GOGOGATE Memory Card GOGOGATE DEVICE WIRELESS ADAPTER ONE WIRELES DOOR SENSOR ( 2 parts A +B) POWER SUPPLY CABLES CABLE CONNECTOR NOTE: Cables have been pre-connected to the cable connector for your convenience.
  • Page 3 2. Understanding your GoGoGate: SD Memory card Slot: The card is used to operate your GOGOGATE and also for future Software upgrades. IT SHOULD NOT BE REMOVED while the device is powered on. Cable slot: Connects the 3 pre-assembled garage cables to your garage door wall buttons. WiFi Port: This is where you will insert the Wireless USB adapter supplied with your product.
  • Page 4 · A screw driver 3. What do you need for installation: · The GoGogate app installed on your smartphone. · Your home Network name (also called SSID) and password · About 20m of your time A) Start Your Initial Installation : STEP 1 Steps below are to connect 1 garage door.
  • Page 5 Connect the cable provided in the box to your garage door buttons. (See drawings).You will have to loosen the 2 screws to connect the cables. Although these are low voltage connectors, we always recommend turning off power to wall mounted buttons prior to installation.
  • Page 6 Reconnect your wall mount button to the wall. (show photo) GARAGE OPENER GARAGE OPENER WALL BUTTON EXAMPLE 1 WALL BUTTON EXAMPLE 2...
  • Page 7 Snap the green cable connector (provided) into the GOGOGATE cable slot. GARAGE OPENER GARAGE OPENER WALL BUTTON EXAMPLE 2 WALL BUTTON EXAMPLES 1 YOUR GARAGE DOOR CONTROL GOGOGATE DEVICE GOGOGATE DEVICE MAKE SURE CONNECTOR IS PUSHED IN ALL THE WAY. MAKE SURE CONNECTOR IS PUSHED IN ALL THE WAY.

  • Page 8: Wireless Adapter

    WIRELESS ADAPTER Plug your wireless adapter antenna in your gogogate and then connect your gogogate to the power supply outlet . See drawing. CABLE CONECTOR POWER SUPPLY...

  • Page 9: Front View

    Installation STEP 2: WIRELESS DOOR SENSOR Attach your wireless sensors to your garage door as per drawing below. PLACE THE SENSORS ON THE UPPER PART OF YOUR GARAGE DOOR WALL. PLACE THIS PART PLACE THIS PART ON GARAGE DOOR ON THE WALL FRONT VIEW SIDE VIEW Always install your wireless door sensors...
  • Page 10 CHECK THE OPERATION OF YOUR WIRELESS DOOR SENSOR: Once your wireless sensors are properly positioned on the garage door, open your garage door via your existing pushbutton. Make sure that when the garage door opens the STATUS light of your gogogate is blinking fast during 1-2 seconds. The LED should also blink fast for 2 seconds when you close the garage.
  • Page 11 Download our FREE GOGOGATE app on your smartphone or ipad . You will find our APP at: Apple products: Look for the Apple store Icon on your phone and ipad and search for GOGOGATE On Android: Look for the Google Play Icon on your android device and search for GOGOGATE...
  • Page 12 Installation STEP 3: Program your GOGOGATE in 3 simple steps Double click to open your app Press the settings button Select “BEGIN YOUR INSTALLATION” (buttom right of screen)
  • Page 13 -COMPLETE THE FIELDS BELOW ON YOUR SMARTPHONE: We recomend Standard configuration. Choose a name for your device like “My house”. Choose a password (numers only) up to 8 characters in length. GoGoGate should automatically detect your network/SSID name. If not please input your current network/SSID name. Input your exsiting home network password.
  • Page 14 If any problems occurred during the programming sequence you will hear 1 long beep. In this case start the WARNING: You have 5 seconds to programing sequence again. place your phone on the GOGO- GATE device. This will start your programing sequence.
  • Page 15 You are all done!! It’s time to try it out. Your garage doors should now be displayed in green if they are connected and shaded if they are not connected. (See drawing) You may now press the garage door button on your Phone to open/close the garage.
  • Page 16 ADVANCED INSTALLATION OPTION – Recommended for installers Your GOGOGATE is capable of controlling many others devices such as electric blinds or sprinkler systems. Depending on the devices you are connecting you may need to choose the transmission mode suitable for that application.
  • Page 17 ADD MORE WIRELESS DOOR SENSORS TO YOUR GOGOGATE If you decided later on to buy a few more door sensors, don’t worry. They are easy to configure. Just follow the instructions below. SELECT THE ADD SENSOR MENU PRESS START WHEN DONE Input here the 4 digit code found on the front of your Wireless Sensors Give your garage doors a Name...

  • Page 18: Change App Settings

    CHANGE APP SETTINGS: We know that with time things may change. The Change App Settings menu will give you the flexibility you need. SELECT “CHANGE APP SETTINGS” Change your device or door name. You should use this option if you bought a 2nd GOGOGATE device and installed it in another location (eg beach house).
  • Page 19 GUEST ACCESS APP Give access to your garage to a friend or relative NOTE: To access your garage, your friends will have to: 1) Download the GOGOGATE app on the smartphone 2) They will need to have access to your home network via wifi 3) They will need your GOGOGATE name and password.
  • Page 20 4) Troubleshooting: Having difficulties with your installation. See if the information below will help. Programming of the gogogate does not work. - make sure your network name and password are correct. (password can be case sensitive) - change the setting from WPA to WEP and restart the installation sequence - Did you hear the 3 beeps after placing your phone on the GOGOGATE device? Moving your phone before the sound is heard will impact the programming.
  • Page 21 5) Limited warranty and return policy The gogogate product comes with a one (1) year warranty against mechanical and electrical defects provided the products have been used in accordance with the documentation provided. The 1 year warranty period begins as of the purchase date by the user of the device. If customer does not have original proof of purchase, REMSOL will determine warranty eligibility via the manufacturing date.

  • Page 22: Safety Information

    Safety information WARNING! ELECTRIC SHOCK HAZARD: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER. Read and follow these instructions, heed all warnings, and keep this document for future reference, · Set up your product in accordance with REMSOL product documentation, and place your product in a stable location so it will not fall and cause product damage or bodily harm.

  • Page 23: Power Supply Warning

    Power supply warning: Caution electric shock/tire hazard! For indoor use only. Do not expose to moisture, Liquid, or heat. Do not use any other power supply with your product. · Install the wires connecting to your garage door wall buttons with all equipment powered off (garage door opener and gogogate). ·...

  • Page 24: Safety Precautions

    Canada I IC Statement: This Class B digital apparatus complies with Canadian ICES-003. (Cet appareil numerique de categorie B est conforme a la norme canadienne ICES-O03.) · This device complies with lndustry Canada licence-exempt RSS standard 2IO. · Operation is subject to the following two conditions: (l) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 25 MORE INFO WWW.GOGOGATE.COM...
