TrueDRY DH90
Ventilating Dehumidification System
DH90 Capacities and Performance
Part Number:
DH90
Blower:
240 CFM @ 0.0 in. WG
220 CFM @ 0.4 in. WG
Supply Voltage:
110–120 Volt; 60 Hz.
Amps:
6.3
Operating Exterior Temp:
56-130ºF (13-54ºC) ducted
56-100ºF (13-38ºC) unducted
Capacity:
97 Pints/Day (80ºF [27ºC], 60% RH)
114 Pints/Day (90ºF [32ºC], 60% RH)
130 Pints/Day (100ºF [38ºC], 60% RH)
Coverage (sq ft):
Up to 3120
Discharge
105ºF (41ºC)
Air Temp:
(80ºF [27ºC], 60% RH intake)
Duct Connections: 6 in. Round Inlet
10 in. Round Inlet
10 in. Round Outlet
Filter Efficiency:
Standard MERV-11
(65% ASHRAE Dust Spot)
Power Cord:
7.5 ft, 115V With Ground
Drain Connection: 3/4 in. Threaded MPT
Dimensions (See Fig. 1):
Width:
15 3/4 in.
Height:
20 7/8 in.
Length:
34 1/2 in. without collars
40 1/2 in. with collars
Weight:
92 lbs
Shipping Specs:
Length:
42 in.
Height:
25 7/8 in.
Width:
20 1/2 in.
Weight:
99 lbs
OPTIONAL PARTS
MERV 11 Filter:
50018994-001
Motorized Damper:
EARD6
10-in. Backdraft
Damper:
50018995-001
Blower Assembly:
50027976-001
24VAC Transformer: 50027977-001
SPDT 15A Relay:
50027978-001
SPST 30A Relay:
50027979-001
Compressor:
50027980-001
Leveling Feet (4):
50027981-001
ETL listed. Conforms to UL Std 1995.
The TrueDRY DH90 performs multiple indoor air quality functions in a
single, compact unit:
High-Capacity Dehumidification
Fresh Air Ventilation
Air Filtration
Dehumidification
The TrueDRY DH90 dehumidifier utilizes refrigeration and internal air cir-
culation to cool the incoming air stream below its dew point. This cooled
and drier air is used to pre-cool the incoming air stream resulting in a
significant increase in overall efficiency.
After helping to cool the incoming air, the processed air is reheated by
passing through the condenser coil. The heat removed by the evapora-
tor coil is returned to the air stream, resulting in an overall temperature
increase to the processed air.
The TrueDRY DH90 is controlled by a variety of 24 volt remote wired con-
trols.
Fresh Air Ventilation
Optional fresh outdoor air may be ducted to the unit via a six-inch round
duct. This provides fresh air to dilute pollutants and maintain a normal
oxygen content in the air. The amount of fresh air ventilation can be
regulated by a variety of dampers and controls.
Air Filtration
The TrueDRY DH90 includes a MERV-11 air filter to keep the DH90's con-
denser coils clean.
Length: 24 in.
Height: 19 15/16 in.
Width: 7 3/4 in.
Weight: 19 lbs
SPECIFICATION DATA
INLET VIEW
SIDE VIEW
6
(152)
10
(254)
34-1/2 (876)
OUTLET VIEW
15-3/4 (400)
10
(254)
20-7/8
(530)

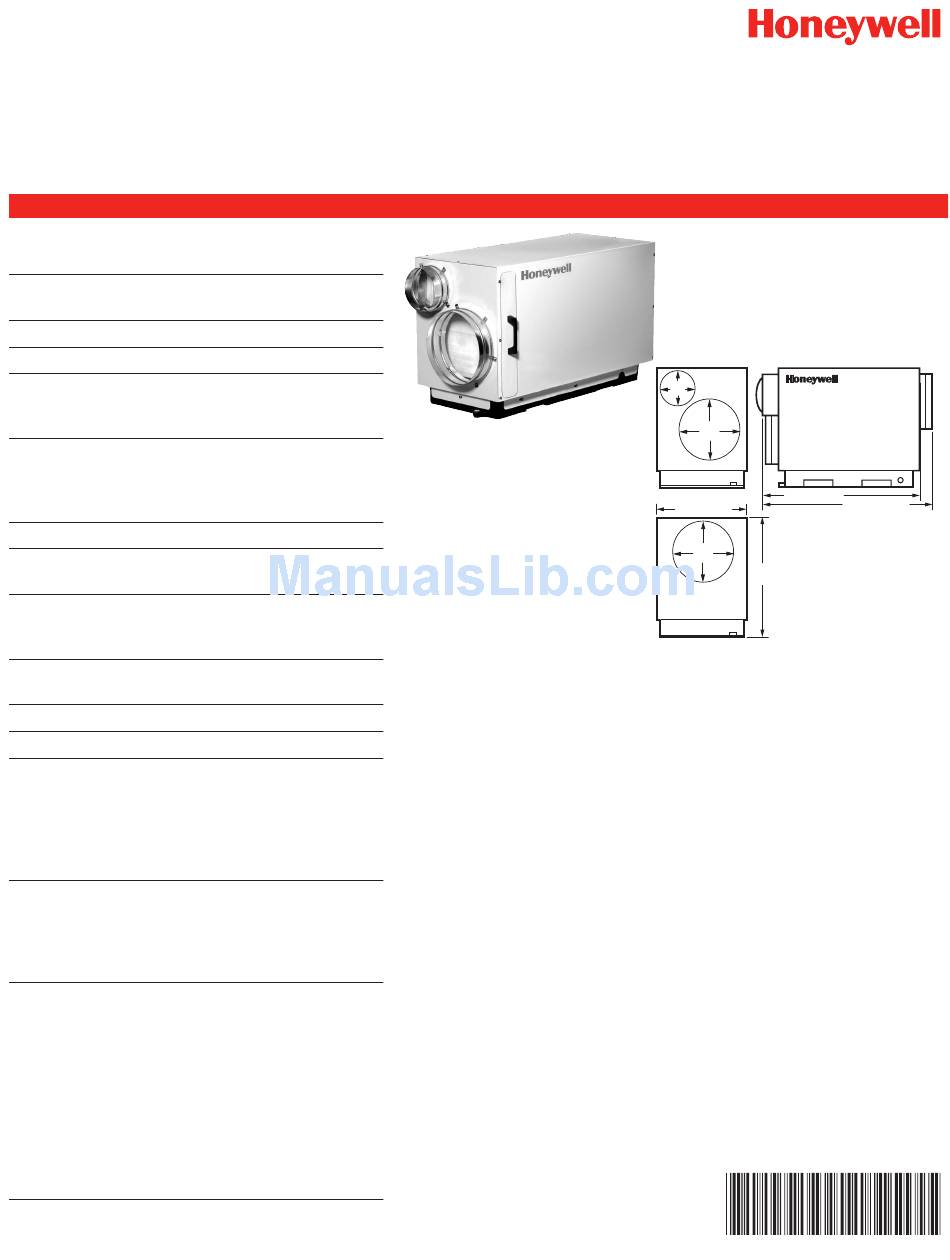

Fig. 1. Dimensions in in. (mm).
43-1/2 (1092)
M27602
69-2146-01
