23-419.fm Page 1 Friday, August 6, 1999 3:20 PM
Cat. No. 23-419
5-Hour Ni-Cd/Ni-MH
Universal Battery Charger

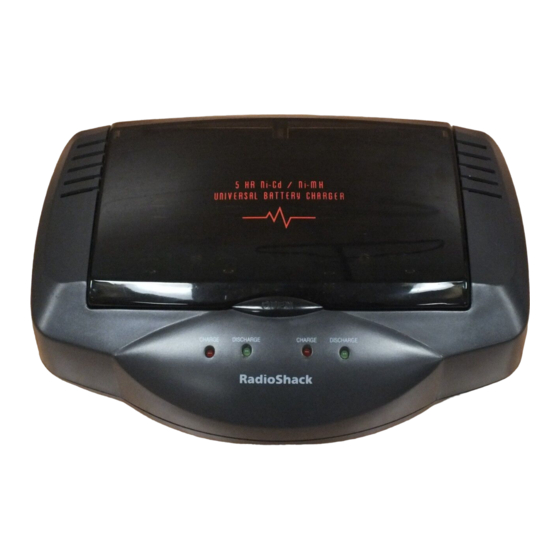

Your RadioShack 5-Hour Ni-Cd/Ni-MH Universal Battery Charg-
er can fully charge up to five different sizes of nickel-cadmium
and nickel-Metal Hydride batteries in only 5 hours. It can charge
AAA, AA, C, D and 9V batteries.
Your charger's features include:
Multiple Charging Circuits — allow you to charge up to four
AAA, AA, C, or D size Nickel-Cadmium or Nickel-Metal Hydride
batteries, and one or two 9-volt batteries.
Automatic Charging Current Selection — selects the best
charging current for each battery size.
Reverse Polarity Protection — protects the charger and batter-
ies against incorrectly installed batteries.
Safety Timer Shut–Off — turns off the charger to prevent over-
charging AAA, AA, C, or D batteries.
Short Circuit Protection — protects the charger and batteries
against shorted batteries.
Battery Conditioner — lets you discharge AAA, AA, C, or D bat-
teries before recharging them, keeping them completely fresh.
Charging/Discharging Indicators — light when the batteries
are charging/discharging.
Overcurrent Protection — keeps the current constant.
©
1998 Tandy Corporation.
All Rights Reserved.
RadioShack is a registered trademark used by Tandy Corporation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ni-Cd and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Radio Shack Ni-Cd

Summary of Contents for Radio Shack Ni-Cd

  • Page 1 Cat. No. 23-419 5-Hour Ni-Cd/Ni-MH Universal Battery Charger Your RadioShack 5-Hour Ni-Cd/Ni-MH Universal Battery Charg- er can fully charge up to five different sizes of nickel-cadmium and nickel-Metal Hydride batteries in only 5 hours. It can charge AAA, AA, C, D and 9V batteries.

  • Page 2: Important Safety Instructions

    23-419.fm Page 2 Friday, August 6, 1999 3:20 PM WARNING: To reduce the risk of fire or shock hazard, do not ex- pose this product to rain or mois- ture. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK.
  • Page 3 23-419.fm Page 3 Friday, August 6, 1999 3:20 PM • Unplug the charger from the AC outlet before attempting any maintenance or cleaning. • Do not disassemble the charger; take it to a qualified service technician when service or repair is required. Improper reas- sembly may result in a risk of electric shock or fire.
  • Page 4 23-419.fm Page 4 Friday, August 6, 1999 3:20 PM • Do not try to charge batteries other than those listed in this manual, or use procedures other than those described in this manual. Discharging/Charging Batteries illus of charger with compartment open and switch/LED markings visible Notes: If the red or green indicator flashes during these steps, at...
  • Page 5 Warning: To prevent damage to your charger and the risk of shock, always unplug the AC adapter from the AC outlet before unplugging it from the charger. Discharging Time Maximum Charging Type Capacity (mAh) Time (Hrs) Ni-Cd 1600 1600 Not Applicable Ni-MH 1800 1800 1100...
  • Page 6 23-419.fm Page 6 Friday, August 6, 1999 3:20 PM Charging Time Maximum Charging Type Capacity (mAh) Time (Hrs) Ni-Cd 1600 1600 Ni-MH 1800 1800 1100...

  • Page 7: Specifications

    23-419.fm Page 7 Friday, August 6, 1999 3:20 PM SPECIFICATIONS Power Transformer: Input ........... 120 VAC, 60 Hz, 10 W Output ............. 12 VAC, 0.6 A Average Charging Current (Ni-MH/Ni-Cd Type): AAA ................126 mA AA ................308 mA C/D ................504 mA 9V ................23 mA Safety Guard Protection Timer ......
  • Page 8 23-419.fm Page 8 Friday, August 6, 1999 3:20 PM Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from Ra- dioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DU-...
