Summary of Contents for Sony Exmor HXC-D70H

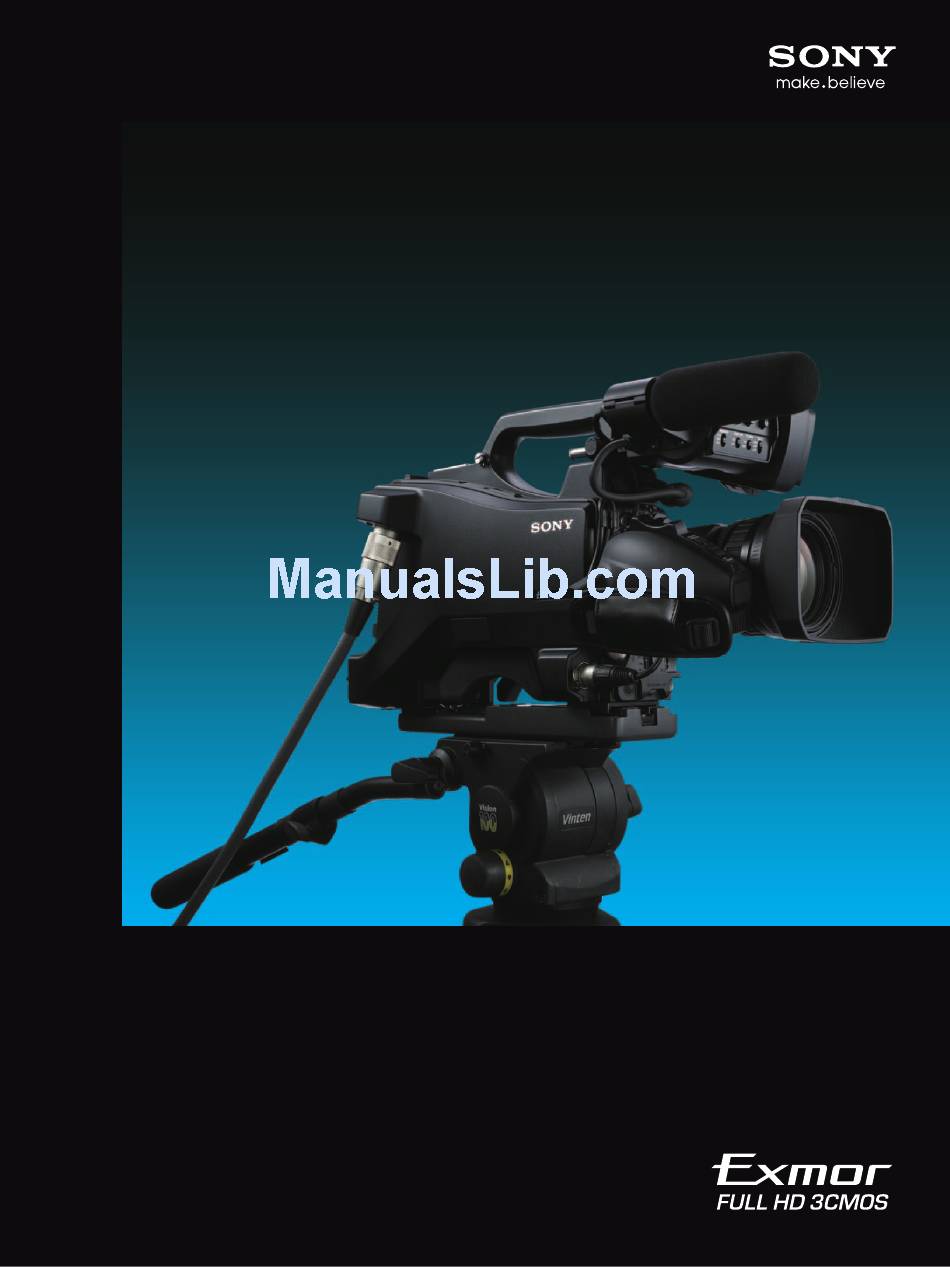

- Page 1 HD/SD System Camera HXC-D70...
- Page 2 Opening a New World of HD Production Sony introduces an ideal solution for HD/SD small studio operations with the HXC-D70 Full HD System Camera, HXCU-D70 Camera Control Unit (CCU), and DXF-C50WA 5-inch Color LCD Viewfinder. The newly developed HXC-D70 is a high-performance camera which inherits field-proven operability from the highly regarded DXC-D Series of system cameras.
-
Page 3: System Versatility
Knee Saturation OFF Knee Saturation ON Simulated images System Versatility Sony's BP-L Series battery can also be directly The HXC-D70 can be remotely controlled from the attached to allow stand-alone operation. HXCU-D70 Camera Control Unit using a standard multi- core cable. - Page 4 HXC-D70 Two types of viewfinder interface Three accessory shoes Various camera accessories can be attached. Interface for the DXF Series such as the DXF-51, DXF-C50WA, and 3.5-inch color LCD viewfinder (supplied with the HXC-D70K and HXC-D70L). Built-in optical ND filter with electrical CC filter Optimum light and color control is easily achieved using an optical Neutral Density (ND) filter wheel and electronic Color...
- Page 5 Wide viewable range in action Sony’s standard shoe fits a battery and other accessories Wide range of right-side vision through this area enables Direct-mounted HD/SD the camera operator to move around with confidence while Stand-alone operation is achieved without a multi-core connector shooting.
- Page 6 Interface of HXC-D70 and HXCU-D70 Digital Multi-core To CCU CCZ-A (26-pin multi-core cable) VF I/F SDI OUTPUT HD / SD w/ Rec-trigger CBK-VF01 HD-SDI INPUT TEST Output Composite Video PROMPTER Composite Video output DXF-C50WA / GENLOCK or Reference signal input DXF type Analog VF I/F REMOTE...
-
Page 7: Optional Accessories
• Microphone • Auto Focus Lens Lens Specifications (Supplied lens for HXC-D70K) Lens mount 2/3-type Sony bayonet Zoom ratio 16x (optical), servo/manual Focal length f = 8 mm to 128 mm (the equivalent of 31.5 mm to 503 mm on a 35 mm lens) Iris F1.9 to F16 and Close, auto/manual selectable... -
Page 8: Specifications
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. “SONY”, “make.believe”, and “Exmor” are trademarks of Sony Corporation. All other trademarks are the property of their respective owners. The HXC-D70 and HXCU-D70 are produced at Sony EMCS Corporation’s Tokai Technology...
