LG LWD3010ST Service Manual

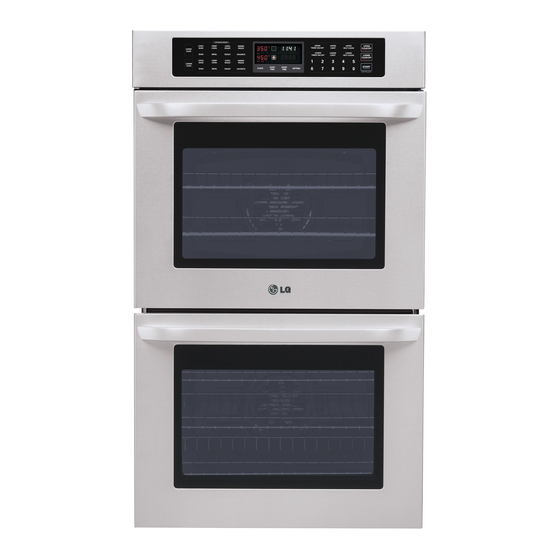

30” electric convection built-in oven
Hide thumbs Also See for LWD3010ST:

Advertisement

Quick Links

x
Download this manual
13
Oven Light (Upper/Lower)
20
Replacing Other Electrical Components
See also: Owner's Manual, Installation Manual
Table of Contents
Internal Use Only
Website http://biz.lgservice.com
30" ELECTRIC CONVECTION
BUILT-IN OVEN
SERVICE MANUAL
MODEL: LWD3010ST
CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
June, 2010
P/NO : MFL37118314
Printed in Korea
1
