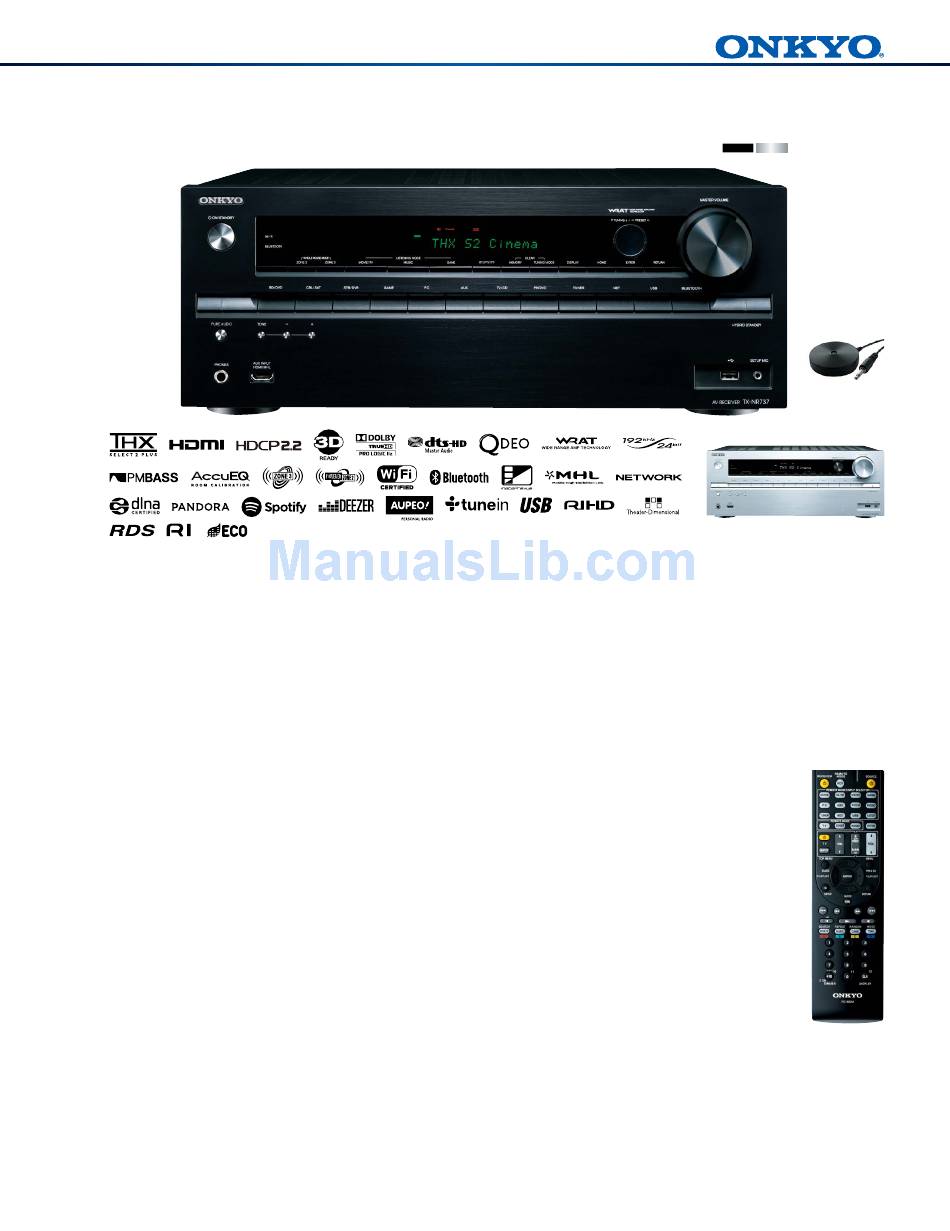

Onkyo TX-NR737 Specifications

2014 NEW PRODUCT RELEASE

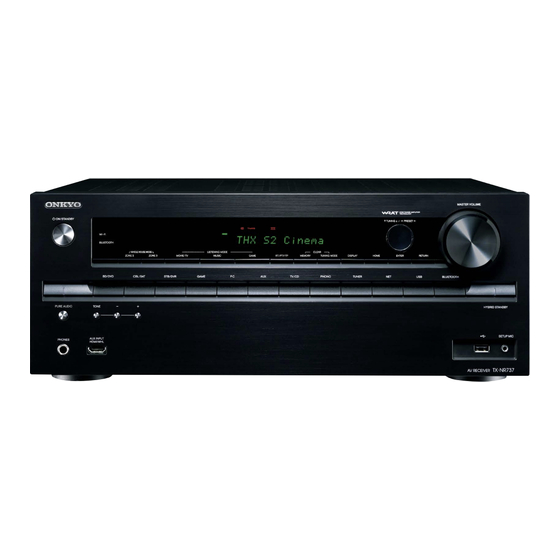

TX-NR737
THX Cinema-Reference Sound Meets Ultra HD Entertainment
®
Step up to THX-certified surround sound with the TX-NR737—the most potent and future-ready A/V receiver in its class. With a high-
current massive transformer, discrete Three-Stage Inverted Darlington Circuitry amplification, and extremely robust construction, this
heavyweight serves up floorshaking cinema-reference sound. There are 4K/60 Hz-capable HDMI
at 60 fps, as well as support for HDCP 2.2. As most Hollywood movie studios are adopting HDCP 2.2 copy protection for future Full
HD and 4K releases (including content streamed via the internet), this is a highly desirable feature. Also included is Qdeo
technology so you can enjoy older DVDs and games in high resolution. Music lovers can choose from a selection of internet music
services and stream almost any 192/24 hi-res, lossless, or compressed file format (including 5.6 MHz DSD) from compatible network-
attached devices using built-in Wi-Fi
sound quality and an easy-to-use GUI, the TX-NR737 delivers powerful studio-master entertainment at an affordable price.
ADVANCED FEATURES
• THX ® Select2 ™ Plus Certified for Cinema Reference Sound
• 4K/60 Hz-Capable HDMI Terminals for Ultra HD
®
Entertainment
*1
• Supports HDCP 2.2 for Future 4K/Full HD Video
Streaming and Broadcast *2
• Built-in Wi-Fi Certified Wireless LAN Capability
®
• Bluetooth Version 2.1 + EDR Capability (Compatible
Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music
Optimizer DSP Technology
• Three-Stage Inverted Darlington Circuitry on All Channels
• HDMI Video Upscaling to 4K with Qdeo
® ™
Processing Technology by Marvell
• Internet Radio and Music Streaming Subscription
Services Included (TuneIn Radio, Pandora , Spotify,
®
AUPEO!, and Deezer)
*3
• Playback Compressed, Lossless, and Hi-res Audio via
Local Network (MP3, WMA, WMA Lossless, FLAC,
WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz,
LPCM , and Dolby TrueHD)
*4 ®
• Proprietary AccuEQ Room Calibration with Mic Included
• Dolby Pro Logic IIz Upmixing for Seven-Channel
® ®
Surround Sound
• Advanced Music Optimizer to Improve Compressed
Digital Audio Quality (Bluetooth Included)
• Control and Stream with Free Onkyo Remote Streaming
Apps for iPod touch/iPhone and Android Devices
*5
• Frontside MHL ™ for 1080p Video and Stills from
Smartphone and Tablet
• Overlaid Input Source Preview with InstaPrevue
™
• PM Bass Boost for Deep Bass and Clear Mid-Range
• Powered Zone 2 and Zone 2/3 Line-Outs for
Distributed Audio Playback
7.2-Channel Network A/V Receiver
and our free remote app. Bluetooth is also standard. Combining these features with class-leading
®
• Whole House Mode for Synchronized Housewide Audio
• Bi-Amping Capability for Front Channels
*1 4K/60 Hz video is supported on HDMI inputs 1/2/3/4, the frontside input,
Main Out, and Sub Out. *2 HDCP 2.2 is supported on HDMI Input 3 and
Main Out only. *3 Availability of services depends on region. Some services may
require a paid subscription and firmware update. Availability of third-party services
advertised here is accurate at the time of publication, but may be subject to
change without notice. *4 LPCM is supported via DLNA only. *5 Compatible with
iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS
4.2 or later. *6 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
• 170 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven,
IEC); 185 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• HDMI for 4K/60 Hz Video, 3D, Audio Return Channel,
DeepColor , x.v.Color , LipSync, Dolby
™ ™
DTS-HD Master Audio , DVD-Audio, Super Audio
™
CD, Multichannel PCM, and CEC
• TI Burr-Brown 192 kHz/24-Bit DAC (8 Channels x 1)
• Dual 32-Bit Digital Signal Processing Engines
*6
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode
Technology
• Pure Audio Mode
• Double Bass Function
• Non-Scaling Configuration
inputs for Ultra HD gaming and video
®
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 7 HDMI Inputs (1 Front/6 Rear) and 2 Outputs
• USB Port (Front)
• Mass Storage Class USB Memory Playback Capability
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)
• 3 Composite Video Inputs and 1 Output
• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
• 6 Analog Audio Inputs
• Phono Input for Turntable Connection
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
OTHER FEATURES
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms in 10 ms Steps at 48 kHz)
• Graphical Overlaid On-Screen Display (OSD) via
HDMI with Quick Set-Up and Home Menu
• Hybrid Standby Function with HDMI Passthrough
TrueHD,
®
• Smart Grid-Ready
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• RDS (PS/RT/PTY/TP) (European Model Only)
• 40 FM/AM Random Presets
• Certified with DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive Over HDMI) for System Control
• Compatible with RI Dock for iPod/iPhone and AirPlay
(DS-A5)
• Preprogrammed RI (Remote Interactive) Remote Control
BLACK SILVER
Microphone for
AccuEQ
4K upscaling
™
