7. GENERAL INFORMATION

7.1 DIAGNOSIS

A

7.1.1 DISASSEMBLY

-
Removing the Case (not shown)
1. Remove the eight screws and then remove the Case.
-

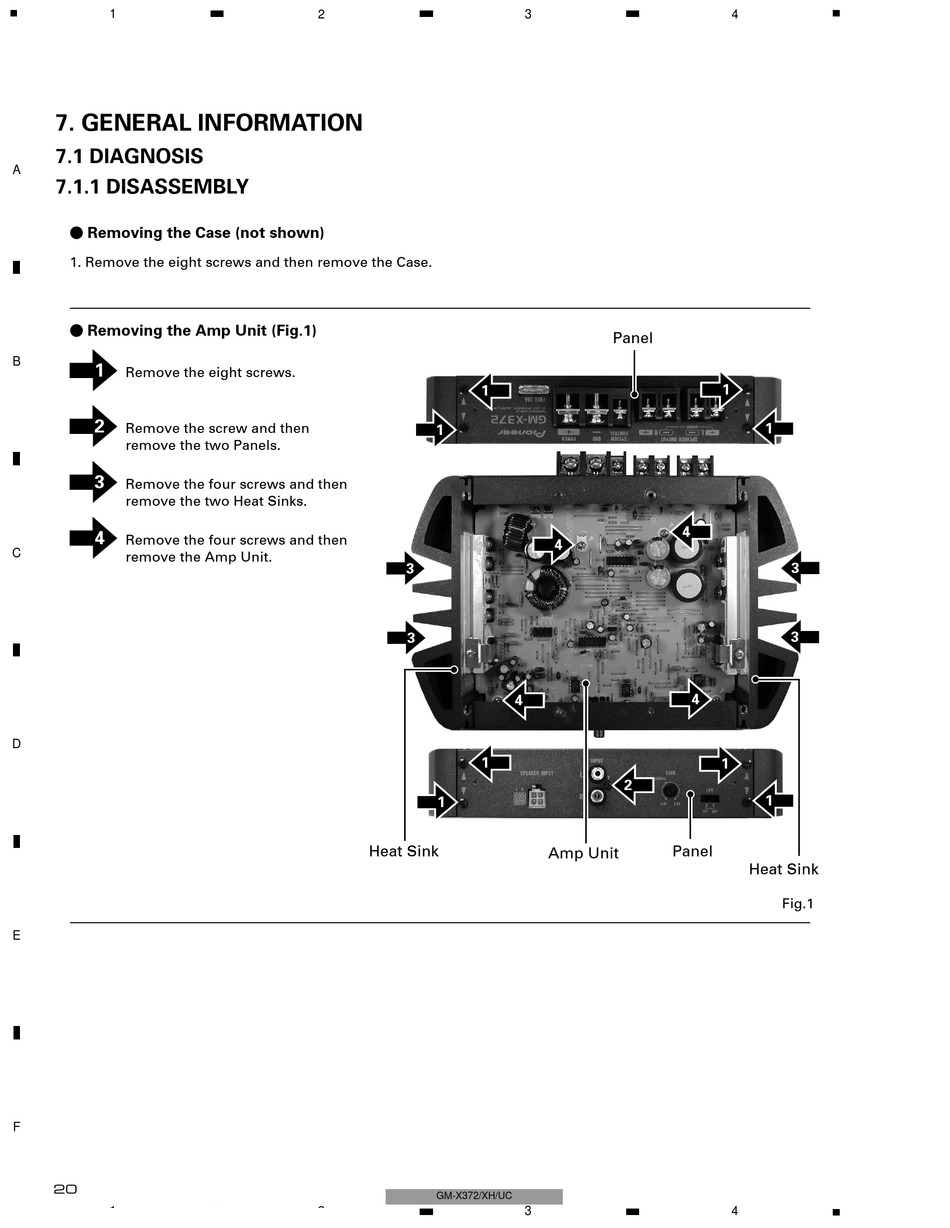

Removing the Amp Unit (Fig.1)
B
1
Remove the eight screws.
2
Remove the screw and then
remove the two Panels.
3
Remove the four screws and then
remove the two Heat Sinks.
4
Remove the four screws and then
C
remove the Amp Unit.
D
E
F
20
1
2
1
1
3
3
1
1
Heat Sink
GM-X372/XH/UC
2
3
Panel
4
4
4
4
2
Panel
Amp Unit
3
4
1
1
3
3
1
1
Heat Sink
Fig.1
