Summary of Contents for Blackrock Microsystems Stim Switch

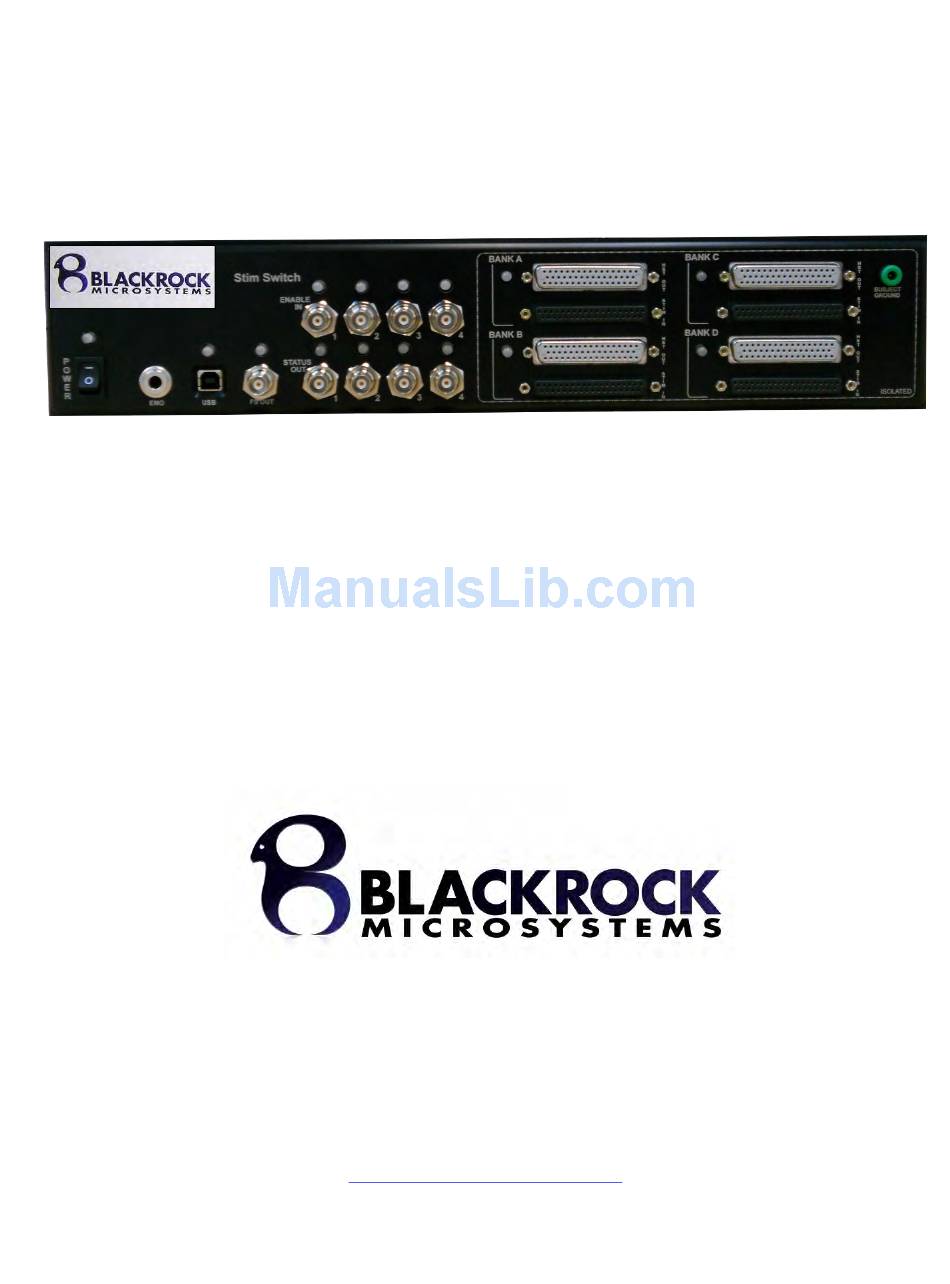

- Page 1 STIM SWITCH U ANUAL 2.00) EVISION ® Blackrock Microsystems, LLC 391 Chipeta Way, Suite G Salt Lake City, UT 84108 Tel: (866) 806-3692 www.blackrockmicro.com...
- Page 2 Stim Switch User Manual © Copyright 2011 Blackrock Micosystems, LLC. All rights reserved. Copying or other reproduction of this document is prohibited without prior written consent of Blackrock Microsystems, LLC Rev. 1.00 ® Page i LB-0357...
- Page 3 Blackrock Microsystems for inspection and recalibration before it can be used again (See Section 6 and 7 of the Stim100 User Manual). • The Stim Switch should not be used with any computer that has not been tested to the IEC 60950 standards. Warnings •...
- Page 4 Do not unplug the power supply to the Stim Switch while the system is in use. • Do not leave the Stim Switch connected to the patient electrodes when the system is not in use. • When connecting the Stim Switch to the Stim100 or patient electrodes, use caution to minimize the likelihood of Electrostatic Discharge (ESD).
-
Page 5: Electromagnetic Compatibility
The following tables document compliance levels and guidance from the IEC 60601-1-2 2007 Standard, for the electromagnetic environment in which the Stim Switch should be used. Medical Electrical Equipment requires special precautions regarding EMC and should be installed and put into service according to the guidelines provided in the tables below. - Page 7 Stim Switch User Manual Mains p ower q uality s hould b e that o f a t ypical c ommercial o r Voltage d ips, s hort ...
- Page 8 Stim S witch s hould b e o bserved t o v erify n ormal o peration. I f a bnormal p erformance i s ...
-
Page 9: System Specifications
Stim Switch User Manual System Specifications Model Name 128-Channel Stim Switch Type of Protection Class I Degree of Protection Type BF Applied Part Stimulation Inputs 4 DB-37 front panel connectors 1.3 kΩ impedance between input and output when stimulation mode is enabled. -
Page 10: Table Of Contents
Connection to the Data Acquisition System ...................7 2.4.4 Connection to the NeuroPort Electrodes ....................7 External Gating of the Stim Switch using the Enable In input ..............8 Software ..........................9 Device Care and Storage ....................11 ... -
Page 11: System Overview
In recording mode, data from the neural signals are recorded and stored by a data acquisition system. The figure below shows an application overview of how a Stim Switch fits into a complete stimulation system. Figure 1-1: Application Overview... -
Page 12: Hardware
USB CMD Port (3): Control of the Stim Switch is accomplished through commands sent via a USB A-B cable connected between the USB Port on the Stim Switch and the USB Port of the PC. A green LED above the port illuminates during activity on the port. If an error occurs, the LED will flash red. -
Page 13: Figure 2-3: Db-37 Stimulator Connection Layout
NeuroPort NSP in order to provide markers in the recording file of stimulation times. Headstage Cable Connectors (7): Each bank on the front panel of the Stim Switch contains a connector for a 50 conductor Headstage Module Cable. These cables provide the interface between the Stim Switch and the Headstage Housing (see section 2.2 below). -
Page 14: Interconnection/Headstage Cables
The Stim100 is a fully programmable current generator with 96 output channels and the capability of producing up to 16 simultaneous stimuli. When the Stim Switch is set to stimulation mode, current generated by the Stim100 passes through the Stim Switch and provides stimulation to a set of selected electrode channels. -
Page 15: Computer Setup
Stim Switch User Manual The NeuroPort Plug that attaches to the bottom of the Headstage Housing provides the interface between the patient electrodes and the Stim Switch System. Connection to the patient electrodes is described in section 2.4.3 below. Each Headstage Module is built around connectors... -
Page 16: Hardware Setup
2.5.1 1. Unpack all components of the Stim Switch. 2. Connect the USB port on the Stim Switch to a USB port on the computer with the USB A-B cable that is included in the packaging. Figure 2-8 Fast Settle modified 3. -
Page 17: Connection To The Data Acquisition System
Stim100. Connect the other end of these cables to the Bank A-D connectors on the Stim Switch labeled ‘STIM IN.’ Secure each connector in place using two thumbscrews. One of the thumbscrews should go through the connector ring attached to the interconnection cables in order to ground the cable shielding to the Stim Switch. -
Page 18: 2.5 External Gating Of The Stim Switch Using The Enable In Input
Neuroport™ Plug. Do not immerse the housing in water or cleaning solution. 7. Screw the NeuroPort plug, attached to the bottom of the Stim Switch Headstage Housing, securely onto the Patient Pedestal 8. The NeuroPort Electrodes are now ready for stimulation/recording. -
Page 19: Software
All 32 electrodes in the bank can be selected or deselected using the ‘Check All’ or ‘Uncheck All’ buttons at the bottom of the panel. Changes are not updated to the Stim Switch until the Set Electrodes button is pressed. - Page 20 Timer Control Panel (3): Periodic switching between Stimulation and Recording modes can be setup using the Timer Control feature. For this feature to be enabled, the ‘Timed’ box in the Stim Control panel must be selected. Period: Enter the period setting in seconds for the selected bank (required).
-
Page 21: Device Care And Storage
(See section 7). • Clean the outside of the Stim Switch using a cloth dampened with water or alcohol when necessary. Do not submerge the device in water or cleaning solutions. •... -
Page 22: Troubleshooting
Stim Switch User Manual Troubleshooting I live in a country with 220 V power, but the back of the Stim Switch Control Module says 110 V. You can change the power supply voltage rating by flipping open the panel above the plug on the back of the module and rotating the wheel so that it says 220 V. - Page 23 Check that the Headstage Module is recognized. The Headstage Module LED for each bank that is in use on the Stim Switch Control Module should be green. If it is red try disconnecting the Stim Switch cable and ensuring that both ends are plugged into the Headstage Module and the Control Module correctly.
-
Page 24: Warranty
Blackrock Microsystems, Inc. warrants that its products are free from defects in materials and manufacturing for a period of one year from the date of shipment. Blackrock will, at its option, repair or replace any product that does not comply with this warranty. This warranty is voided by: 1.
