Components and Controls (cont.)

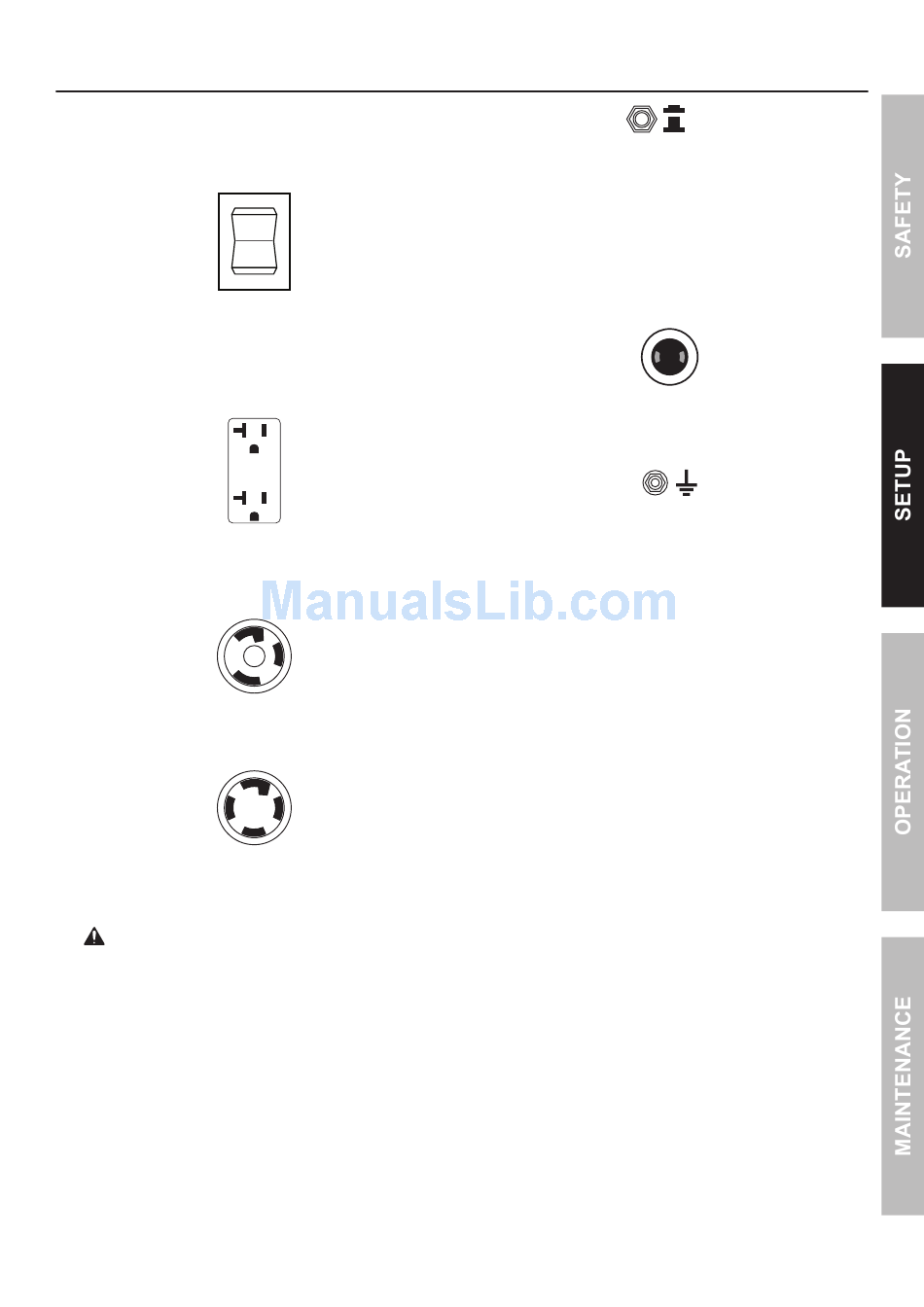

The following are descriptions of the controls
on the power panel. Your generator has
sockets to power your products with circuit
breakers to protect the voltage flow.
1. Engine Switch: Used to start and stop the Engine.
2. AC Receptacles: The Generator contains several
AC Receptacles to power tools and equipment.
a. 3-Prong, duplex
120 volt receptacle
(NEMA #5-15)
b. 3-Prong, twistlock,
120 volt receptacle
(NEMA #L5-20)
c. 4-Prong, twistlock,
120/240 volt receptacle
(NEMA #L14-30)
WARNING! Connect tools and equipment
only to the Receptacle (120 volt or 240 volt)
that is compatible with the electrical
characteristics and rated capacities of the
tools and equipment being used.
Item 68525 / 68530
START
I
O
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
3. Circuit Breakers: The circuit breaker protects the
Generator from overloading. The rating of the breaker
and the load it protects are marked near the breaker.
Should any of the Circuit Breakers trip, the Generator
will stop the electricity output. If this happens, unplug
all loads from the Generator. Allow the Generator to
cool down. Then, press the tripped Circuit Breaker,
restart the Engine, and re-attach loads.
4. 12 VDC Receptacle: 12 VDC Receptacle provides a
power source for 12 volt DC items.
5. Grounding Terminal: Prior to each use, set
up the ground wire (not included) connection
to the Grounding Terminal to properly ground
the Generator. See Set up instructions
to properly ground the Generator.
ON
OFF
