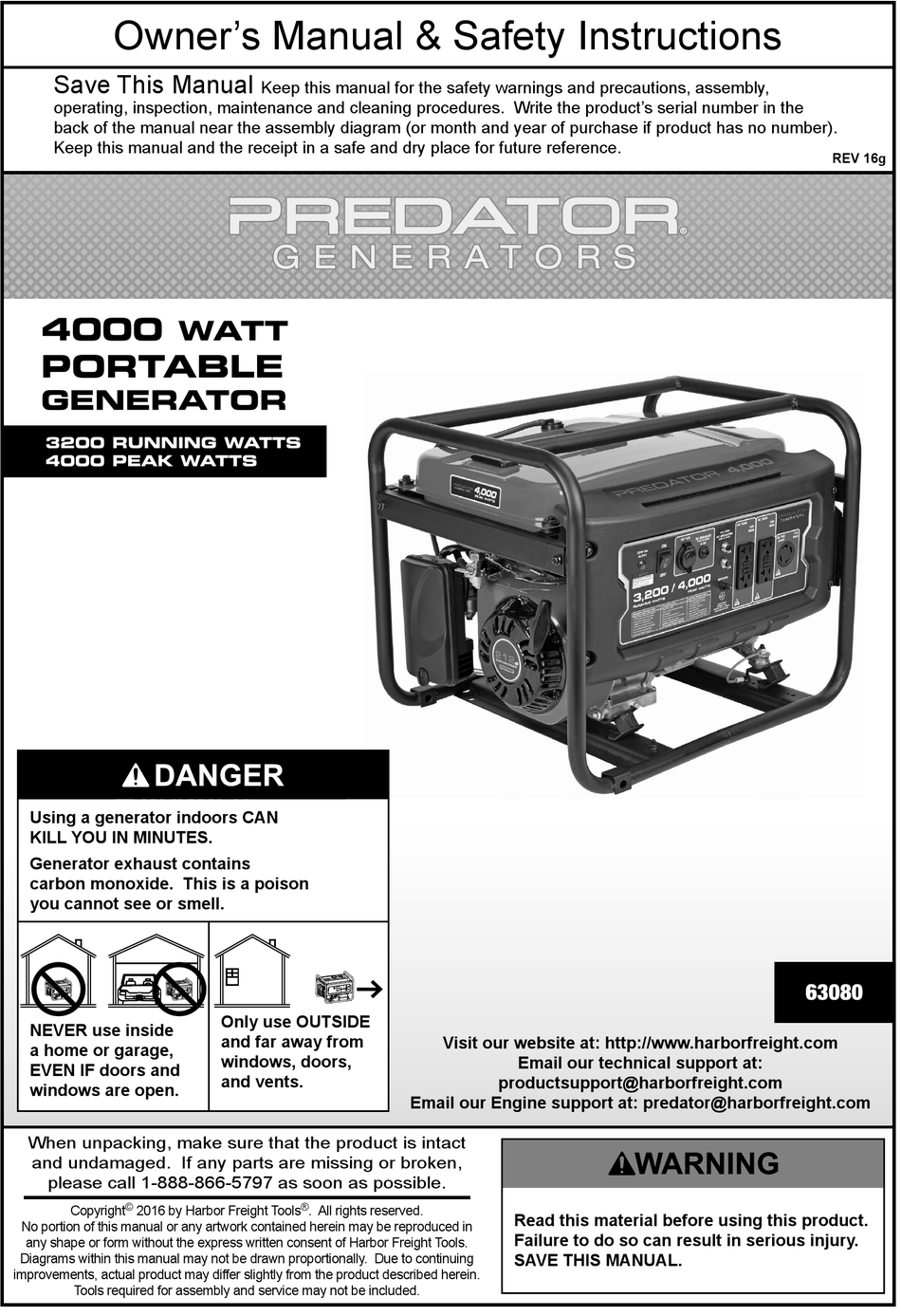

Predator 63080 Owner's Manual & Safety Instructions

Predator 63080 Owner's Manual & Safety Instructions

4000 watt

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Using a generator indoors CAN
Using an engine indoors
KILL YOU IN MINUTES.
CAN KILL YOU IN MINUTES.
Generator exhaust contains
Engine exhaust contains carbon monoxide.
carbon monoxide. This is a poison
This is a poison you cannot see or smell.
you cannot see or smell.
NEVER use inside
a home or garage,
NEVER use inside
EVEN IF doors and
a home or garage,
windows are open.
EVEN IF doors and
windows are open.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2016 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Only use OUTSIDE
and far away from
Only use OUTSIDE
windows, doors,
and far away from
and vents.
windows, doors,
and vents.
®
. All rights reserved.
Visit our website at: http://www.harborfreight.com
Email our technical support at:
productsupport@harborfreight.com
Email our Engine support at: predator@harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 16g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Predator 63080

  • Page 1 EVEN IF doors and and vents. productsupport@harborfreight.com windows are open. Email our Engine support at: predator@harborfreight.com When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.
  • Page 2: Table Of Contents

    7. Connections for standby power to a building electrical system must be made by a qualified electrician. The connection must isolate the Generator power from utility power, and must comply with all applicable laws and electrical codes. Page 2 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 3 (120 volt or 240 volt) that is compatible with the electrical characteristics 7. Do not touch engine during use. and rated capacities of the Generator. Let engine cool down after use. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4: Safety

    29. Keep grounded conductive objects, such as purpose for which it is not intended. tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors. Page 4 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 5: Service Precautions

    9. Store equipment out of the reach of children. 10. Follow scheduled engine and equipment maintenance. SAVE THESE INSTRUCTIONS. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6: Specifications

    Fuel Cap DC Receptacle DC Circuit Breaker Fuel Valve AC Circuit Breakers AC Receptacle Choke GFCI AC Receptacles Air Filter Frame Ground Terminal Power Switch Starter Low Oil Indicator Handle Page 6 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 7 WARNING! Connect tools and equipment only to the Receptacle (120 volt or 240 volt) that is compatible with the electrical characteristics and rated capacities of the tools and equipment being used. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 Sensitive electronic equipment should be operated on approved inverter-type generators or pure sine wave generators. Note: Wheel Kit, item #68531 (sold separately) can be used with this Generator. Page 8 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 9: Initial Set Up/Assembly

    Solenoid Seal High Altitude Kit parts List - A part Description Main Jet 3000-6000 ft. Solenoid Main Jet 6000-8000 ft. Screws Bolt Seal Fuel Cup Seal Solenoid Seal ITEM 63080 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 (The SAE Viscosity Grade chart on page 17 in the Service section shows other viscosities to use in different average temperatures.) 6. Thread the dipstick back in clockwise. Page 10 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 11 SERVICE section. d. Press Reset button in for use. Reset Button RESET TEST Test Button 120 Volt GFCI Receptacle ITEM 63080 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12: Starting The Engine

    Note: Moving the Choke Lever too fast could stall the engine. IMpORTANT: Allow the engine to run at no load for five minutes with no load after each start-up so that the engine can stabilize. Page 12 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 13: Connecting Electrical Loads

    Generator again. 2. Adjust the plugs so the loads are shared across outlet circuits. To achieve rated output from the Generator, distribute loads over outlets. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 13...
  • Page 14 Central AC - 10,000 BTU 1500 1500 For most lights or heaters: Furnace Fan - 1/2 HP 1400 there are no additional start-up watts. Space Heater 1800 Window AC - 10,000 BTU 1200 Page 14 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 15 Stopping the Engine Under Normal Conditions 1. Before turning off the Engine, turn off all electrical loads, RESET then unplug them. TEST 2. Turn the Engine Switch off. 3. Close the Fuel Valve. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16: Maintenance

    4. Clean carbon build-up from combustion chamber Replace fuel line if necessary Service more frequently when used in dusty areas. These items should be serviced by a qualified technician. Page 16 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 17: Engine Oil Change

    In a well-ventilated area away from bystanders, use pressurized air to blow dust out of the air filter. If this does not get the filter clean, replace it. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 17...
  • Page 18: Specifications

    Engine does not start. b. Clean out area around spark plug. Remove spark plug and pour one tablespoon of engine oil into cylinder through spark plug hole. Page 18 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 19: Troubleshooting

    2. Engine mounted on slope, 2. Operate engine on level surface. triggering low oil shutdown. Check engine oil level. Follow all safety precautions whenever diagnosing or servicing the equipment or engine. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 19...
  • Page 20 3. Intake valve stuck or overheated engine. 3. Have qualified technician diagnose and service engine. 4. Incorrect timing. 4. Check engine timing. Follow all safety precautions whenever diagnosing or servicing the equipment or engine. Page 20 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 21 2. Lower the number of items plugged into the Generator to stay within the rated capacity, or use a more powerful generator. Follow all safety precautions whenever diagnosing or servicing the equipment or engine. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 21...
  • Page 22 LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Page 22 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 23 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. ITEM 63080 For technical questions, please call 1-888-866-5797. Page 23...
  • Page 24: Parts List And Diagram

    Cover Guide, Seal Bolt Clamp Tappet, Valve Hose, Fuel Steam Rubber Lifter, Valve Tank, Fuel Clamp Plate Sub, Lifter Stopper Sleeve, Fuel Tank Rubber Clip Bolt, Valve Adjusting Bush Bolt Page 24 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 25: Assembly Diagram

    Assembly Diagram ITEM 63080 For technical questions, please call 1-888-866-5797. Page 25...
  • Page 26 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Page 26 For technical questions, please call 1-888-866-5797. ITEM 63080...
  • Page 27: Warranty

    The nearest Harbor Freight Tools retail store can be found on the internet at http://www.harborfreight.com ITEM 63080 For technical questions, please call 1-888-866-5797. Page 27...
  • Page 28 3491 Mission Oaks Blvd. • pO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797...

Table of Contents
