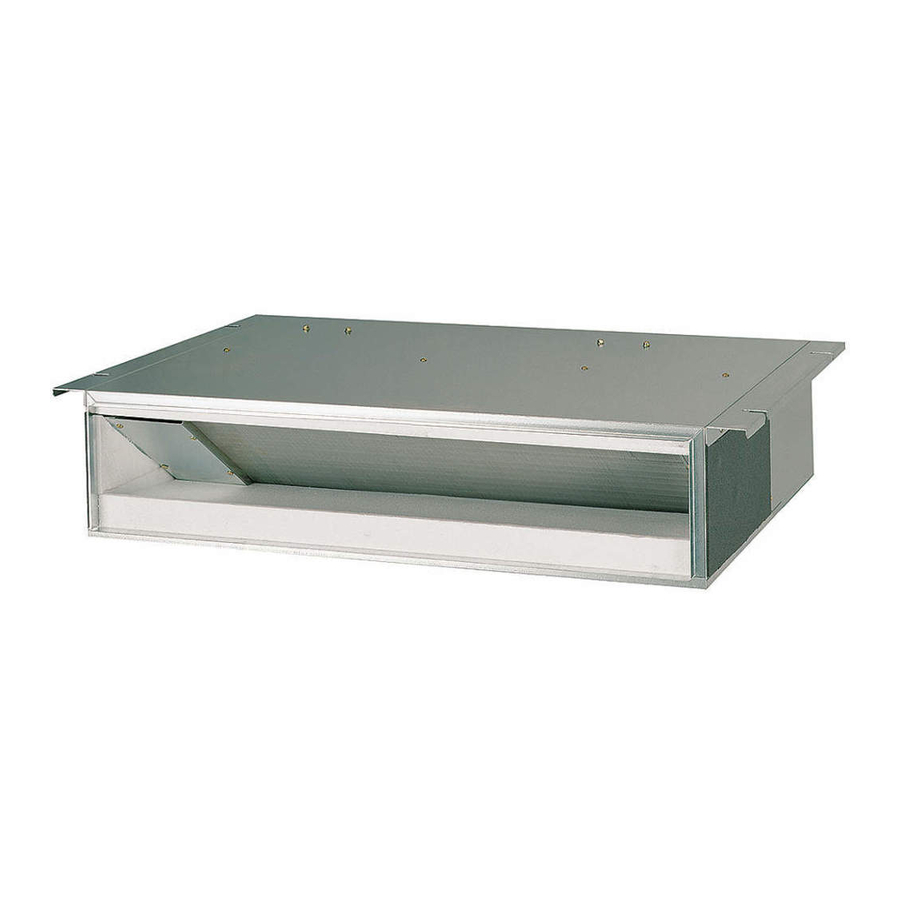

- Page 1 Multi Zone Air Conditioner SVC MANUAL (Exploded View) CAUTION Before Servicing the unit, read the safety precautions in General SVC manual. Only for authorized service personnel. MODEL: MD12Y3JM 960-920-06...
- Page 2 1. Specification Indoor unit type Ceiling Concealed Duct - Low Static Model MD12Y3JM Power Supply Ø / V / Hz 1/ 208~230/ 60 Capacity(*) Btu/h class 12,000 Current Running Current 0.25 Motor Type BLDC Fan Type Sirocco Fan Motor Output(W) x No. of Unit...
- Page 3 2. Function Table Category Function MD12Y3JM Air supply outlet Airflow direction control(left & right) Airflow direction control(up & down) Auto swing(left & right) Air flow Auto swing(up & down) Airflow steps(fan / cool / heat) 03.3.3 Chaos swing Chaos wind(auto wind)
-
Page 4: Piping Diagrams
3. Piping Diagrams Gas pipe connection port Heat Exchanger F l a r e connection Heating Cooling - - 3 - - 1 Sirocco Fan - - 2 Liquid pipe connection port Flare connection LOC. Description PCB Connector Thermistor for suction air temperature CN_ROOM Thermistor for evaporator inlet temperature CN_PIPE... -
Page 5: Wiring Diagrams
4. Wiring Diagrams CN_REMO CN_PIPE/IN CN_POWER CN_PIPE/OUT CN_ROOM CN_D/PUMP CN_CC CN_DISPLAY CN_OPTION CN_FLOAT CN_MOTOR1 CN_MOTOR2 - 5 -... - Page 6 5. Exploded View - 6 -...
- Page 7 Model: MD12Y3JM Friedrich Loc No. Description Part # W4811 Bracket Assembly 67600702 130911 Cabinet Assembly,Indoor 67600808 249951 Case Assembly,Control(Indoor) 67600903 W6640 Connector,Terminal Block 67601407 354210 Evaporator Assembly,First 67602009 359012A Fan Assembly,Blower 67602103 359012B Fan Assembly,Blower 67602104 159830 Filter Assembly,Air Cleaner...
- Page 8 Friedrich Air Conditioning Co. I 10001 Reunion Place, Suite 500 I San Antonio, TX 78216 I 877.599.5665 www.friedrich.com - 8 -...
