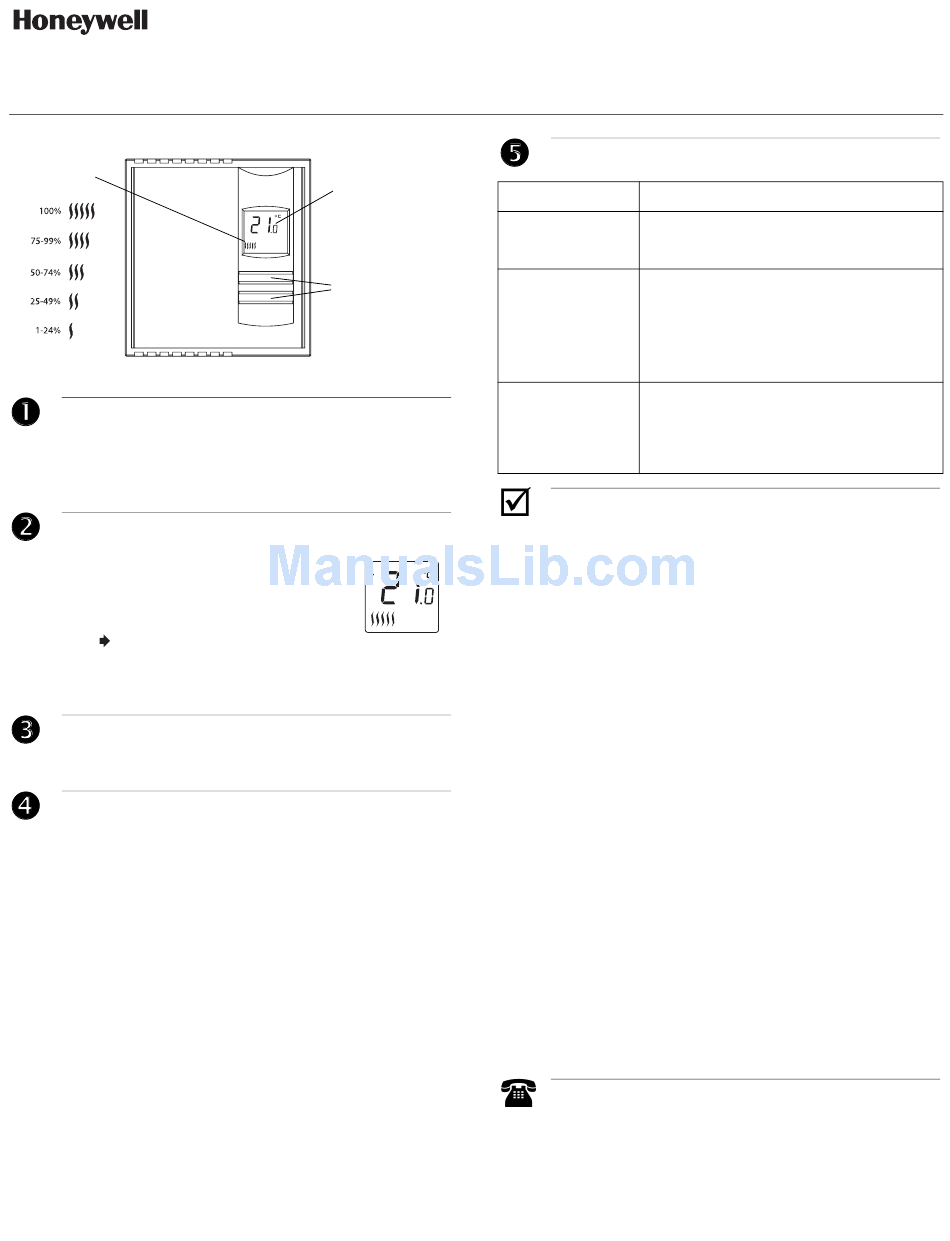

Honeywell TL5110 User Manual

Heating power
indicator
Description
This thermostat can be used to control an electric heating system
such as a baseboard heater, a radiant ceiling, a radiant floor, a con-
vector, etc.

Temperature Display and Setting

The thermostat normally displays the actual (ambi-
ent) temperature.
• To view the setpoint temperature, press once on
either of the temperature adjustment buttons.
The icon appears during the setpoint display.
• To change the setpoint temperature, press the appropriate but-
ton until the desired value is displayed.

Power Outage

During a power outage, the setpoint is stored in memory.

Specifications

- Supply: 120/240 VAC, 50/60 Hz
- Minimum load: 2 A (resistive only)
500 W @ 240 VAC
250 W @ 120 VAC
- Maximum load: 12.5 A (resistive only)
3000 W @ 240 VAC
1500 W @ 120 VAC
- Display range: 0 to 50°C (32 to 122°F)
- Setpoint range: 5 to 30°C (40 to 85°F)
- Storage: -20 to 50°C (-4 to 120°F)
- Approval: c UL us
TL5110
Temperature
display
Thermostat is hot.
Temperature
adjustment
buttons
Displayed tempera-
ture is wrong.
1.
Display disappears
and reappears after
a few minutes.
2.
Honeywell warrants this product, excluding battery, to be free from defects in the
workmanship or materials, under normal use and service, for a period of five (5)
years from the date of purchase by the consumer. If at any time during the warranty
period the product is determined to be defective or malfunctions, Honeywell shall
repair or replace it (at Honeywell's option).
If the product is defective,
(i)
(ii)
3.
This warranty does not cover removal or reinstallation costs. This warranty shall
not apply if it is shown by Honeywell that the defect or malfunction was caused by
damage which occurred while the product was in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product within the
terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR
4.
DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF
ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS
PRODUCT. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES
ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE FIVE-YEAR DURATION
OF THIS WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which
vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Cus-
tomer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-
1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell
Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V4Z9.
If you have any questions about the operation of your thermostat,
please go to http://yourhome.honeywell.com, or call Honeywell
Customer Care toll-free at 1-800-468-1502.
Digital Non-programmable Thermostat

Troubleshooting

PROBLEM
This is normal. Under normal operation, the
thermostat housing can reach a temperature
between 35 °C (95 °F) and 40 °C (104 °F).
Correct if any the following conditions applies:
• The thermostat is exposed to air draft.
• The sticker on the thermostat's screen has
not been removed.
• The thermostat is located near or above a
heat source such as a light dimmer.
The thermal protection device on the heater has
temporarily opened. This can happen if the
heater is obstructed by furniture or curtain and
has overheated, or if the heater's thermal pro-
tection device is too sensitive.

Warranty

return it, with a bill of sale or other dated proof of purchase, to the place from
which you purchased it, or
call Honeywell Customer Care at 1-800-468-1502. Customer Care will make
the determination whether the product should be returned to the following
address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr N,
Golden Valley, MN 55422, or whether a replacement product can be sent to
you.
