SERVICE MANUAL
Ver 1.0 2000.3

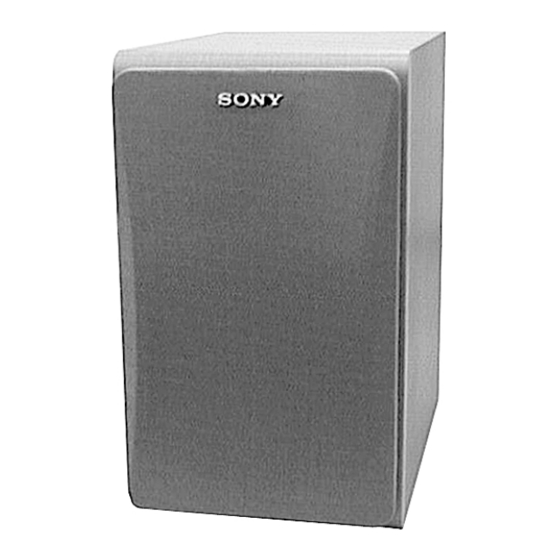

• SS-CCP11 is the speaker system in CMT-CP11/CP11K.
SPECIFICATIONS
Speaker system
2-way, bass-reflex type
Speaker units
Woofer:
12 cm dia. cone type
Tweeter:
2.5 cm dia. cone type
Normal impedance
6 ohms
Dimensions (w/h/d) Approx. 150
projecting parts and controls
Mass
Approx. 2.6kg net per speaker
Design and specifications are subject to change without notice.
SS-CCP11
Canadian Model
Australian Model
252 252 mm incl.
SPEAKER SYSTEM
US Model
AEP Model
UK Morel
E Model
Advertisement
Related Manuals for Sony SS-CCP11
Summary of Contents for Sony SS-CCP11
- Page 1 SERVICE MANUAL US Model Canadian Model Ver 1.0 2000.3 AEP Model UK Morel E Model Australian Model • SS-CCP11 is the speaker system in CMT-CP11/CP11K. SPECIFICATIONS Speaker system 2-way, bass-reflex type Speaker units Woofer: 12 cm dia. cone type Tweeter: 2.5 cm dia.
- Page 2 4-874-614-11 SCREW(4) (3.5X14), TAPPING A-4412-189-A PANEL ASSY, TWEETER 4-218-202-01 CATCHER, NET 1-529-727-11 SPEAKER (12cm) (WOOFER) 4-217-365-01 BOX(L), SPEAKER (L-CH) 1-529-476-11 SPEAKER (2.5cm) (TWEETER) Sony Corporation 9-929-096-11 2000C1685-1 Home Audio Division Company Printed in Japan © 2000.3 Published by Quality Assurance Dept.
