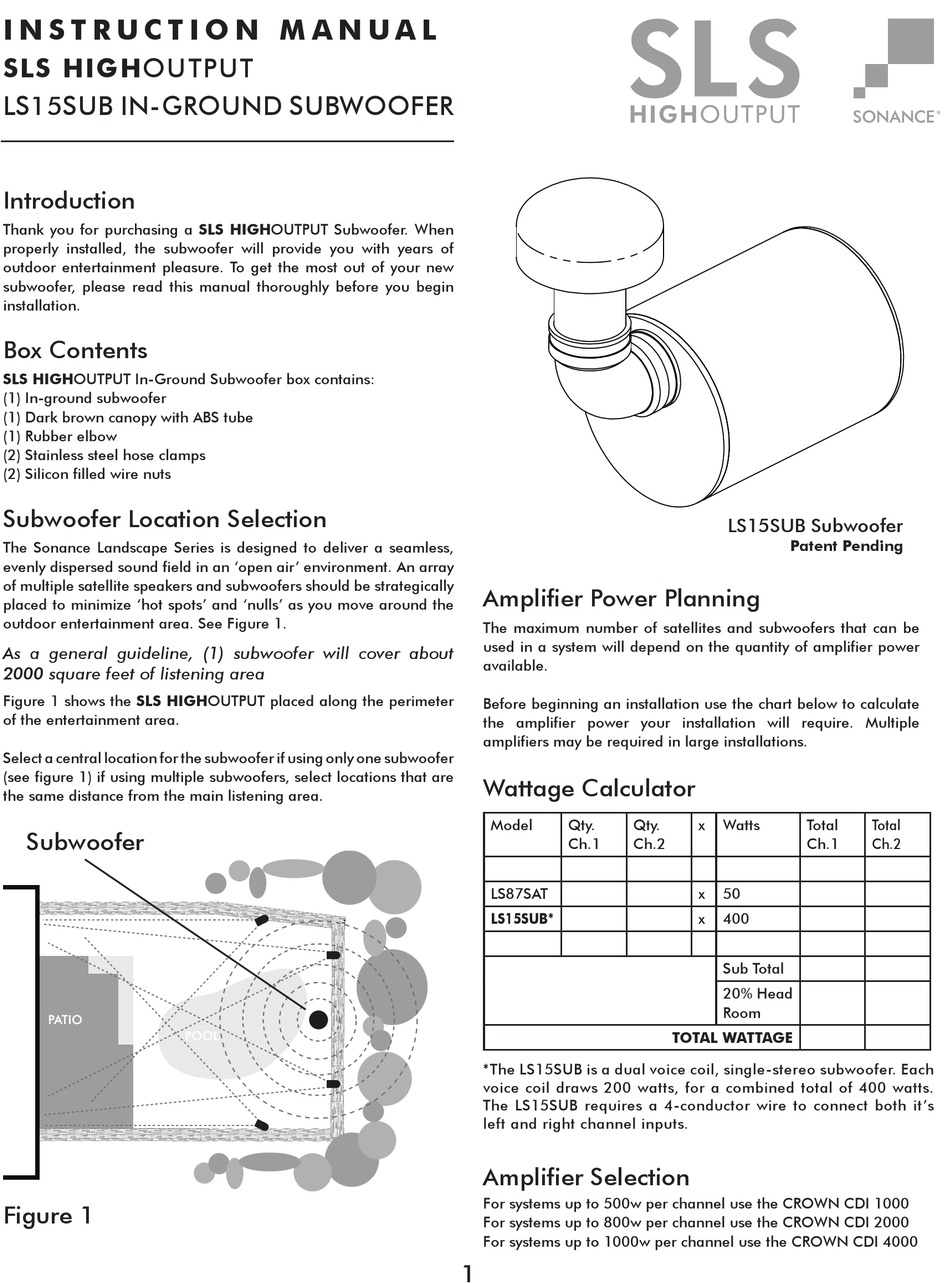

Sonance LS15SUB Instruction Manual

I N S T R U C T I O N M A N U A L 1/2" Thk. (HDPE) Sealed Enclosure
SLS HIGHOUTPUT
Front firing Band-pass Design
LS15SUB IN-GROUND SUBWOOFER
Vertically Mounted 12" Woofer
In-Ground Subwoofer

Introduction

20.00"L x 14.00" Dia.
Thank you for purchasing a SLS HIGHOUTPUT Subwoofer. When
properly installed, the subwoofer will provide you with years of
Non-corrosive 1/2" Thk. (HDPE)
outdoor entertainment pleasure. To get the most out of your new
subwoofer, please read this manual thoroughly before you begin
installation.
12.00" Dia.

Box Contents

40Hz-100Hz
SLS HIGHOUTPUT In-Ground Subwoofer box contains:
2000 sq. ft. omnidirectional

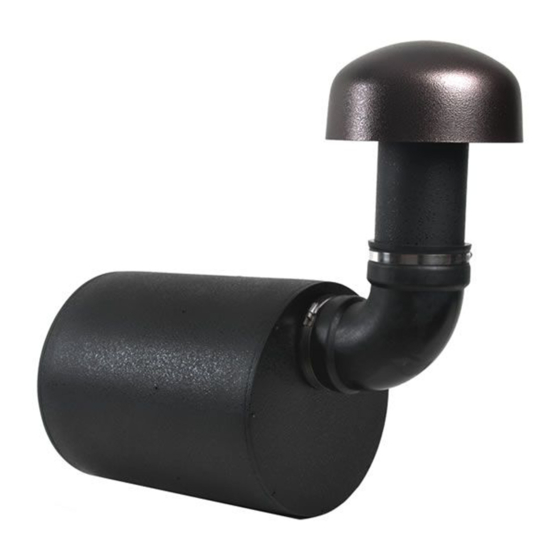

(1) In-ground subwoofer
(1) Dark brown canopy with ABS tube
(1) Rubber elbow
70.7 volt / 20 watt
(2) Stainless steel hose clamps
(2) Silicon filled wire nuts
54 lbs.

Subwoofer Location Selection

The Sonance Landscape Series is designed to deliver a seamless,
evenly dispersed sound field in an 'open air' environment. An array
of multiple satellite speakers and subwoofers should be strategically
placed to minimize 'hot spots' and 'nulls' as you move around the
outdoor entertainment area. See Figure 1.
As a general guideline, (1) subwoofer will cover about
2000 square feet of listening area
Figure 1 shows the SLS HIGHOUTPUT placed along the perimeter
of the entertainment area.
Select a central location for the subwoofer if using only one subwoofer
(see figure 1) if using multiple subwoofers, select locations that are
the same distance from the main listening area.
Subwoofer
Figure 1
Tuned Port / Deep,powerful, tight bass
Copper-Wound 70.7V Transformer
Professional-Grade Electronics

Amplifier Power Planning

The maximum number of satellites and subwoofers that can be
used in a system will depend on the quantity of amplifier power
available.
Before beginning an installation use the chart below to calculate
the amplifier power your installation will require. Multiple
amplifiers may be required in large installations.
Wattage Calculator
Model Qty. Qty.
Ch.1 Ch.2
LS87SAT
LS15SUB*
*The LS15SUB is a dual voice coil, single-stereo subwoofer. Each
voice coil draws 200 watts, for a combined total of 400 watts.
The LS15SUB requires a 4-conductor wire to connect both it's
left and right channel inputs.

Amplifier Selection

For systems up to 500w per channel use the CROWN CDI 1000
For systems up to 800w per channel use the CROWN CDI 2000
For systems up to 1000w per channel use the CROWN CDI 4000
1
LS15SUB Subwoofer
Patent Pending
x Watts Total
Ch.1
x 50
x 400
Sub Total
20% Head
Room
TOTAL WATTAGE
Total
Ch.2
