MULTISELECTOR

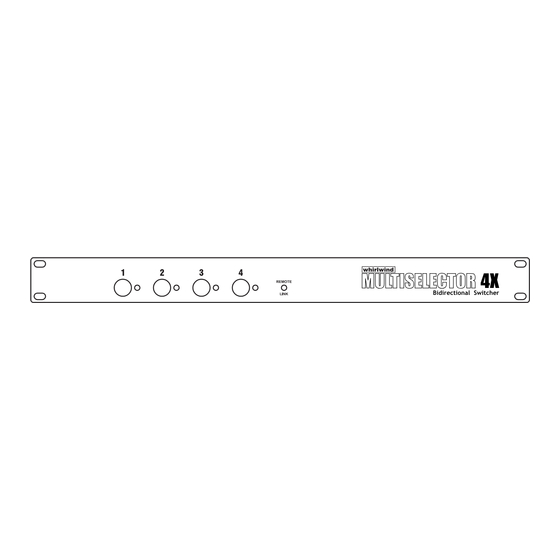

Four momentary switches on the front panel select between channels, with the active channel identified by a red LED. Activating a channel
disconnects the previous selection. A separate, green LED indicates connection of the optional foot controller, the MultiSelector
MLTSELPRO4XR Remote.
The rear panel contains unbalanced ¼" jacks for signal input and output, a
9VDC power jack (center negative) for connecting the included 9VDC linear
power supply (PS9-MSEL) and a female XLR connector for connecting the
optional remote footswitch.
MADE IN USA
99 Ling Road - Rochester, New York 14612
800-733-9473 / 585-663-8820 Fax: 585-865-8930
sales@whirlwindusa.com
whirlwindusa.com
4X
MULTISELECTOR 4X
BIDIRECTIONAL SWITCHER
Model MLTSEL4X
R
C
E
M
9VDC
O
200mA
T
E
MULTISELECTOR
MLTSELPRO4XR - For use with MULTI-SELECTOR PRO and 4X only
The optional MultiSelector MLTSELPRO4XR
Remote "stomp box" style footswitch contains
four switches that remotely control the switching
functions of the rack mount unit using a regular 3-
pin XLR microphone cable. A unique, proprietary
communication protocol ensures reliable
switching with mic cables up to 100 feet long.
Bidirectional Switcher
MULTISELECTOR
Bidirectional Switcher
REMOTE
4X
whirlwindusa.com
Advertisement
Related Manuals for Whirlwind MULTISELECTOR 4X
Summary of Contents for Whirlwind MULTISELECTOR 4X
- Page 1 Four momentary switches on the front panel select between channels, with the active channel identified by a red LED. Activating a channel disconnects the previous selection. A separate, green LED indicates connection of the optional foot controller, the MultiSelector MLTSELPRO4XR Remote. 9VDC MULTISELECTOR 4X 200mA BIDIRECTIONAL SWITCHER Model MLTSEL4X The rear panel contains unbalanced ¼”...
- Page 2 MULTISELECTOR Bidirectional Switcher The MultiSelector 4X (MLTSEL4X) is the newest revision of the classic Whirlwind MultiSelector bidirectional instrument/amplifier switcher. The MultiSelector 4X provides totally noiseless switching between channels using computer-grade digital logic to control optical switches. This single rack space unit features versatile 1-in to 4-out or 4-in to 1-out routing to perform almost any signal-switching task in an instrument or keyboard rig.
