Oven Diagram - Sharp R-1874 Supplemental Service Manual

R-1874
Electrical Requirements
The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE
GROUNDING PIN FROM THE PLUG.
The power supply cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15 Amp. or more branch circuit, using
a grounded receptacle. The receptacle should be located inside the cabinet directly above the Microwave Oven/Hood
system mounting location.
1
6
13
1. Oven door with see-through window.
2. Door hinges.
3. Stirrer cover.
4. Turntable motor shaft.
5. Oven lamp.
It will light when oven is operating or door is open.
6. Door latches.
The oven will not operate unless the door is securely closed.
7. One touch door open button.
Push to open door.
8. Auto-Touch control panel.
9. Ventilation openings.
10. Light Cover.
11. Grease filters.
12. Removable turntable.
The turntable will rotate clockwise or counterclockwise.
Only remove for cleaning.
13. Removable turntable support.
14. Plug

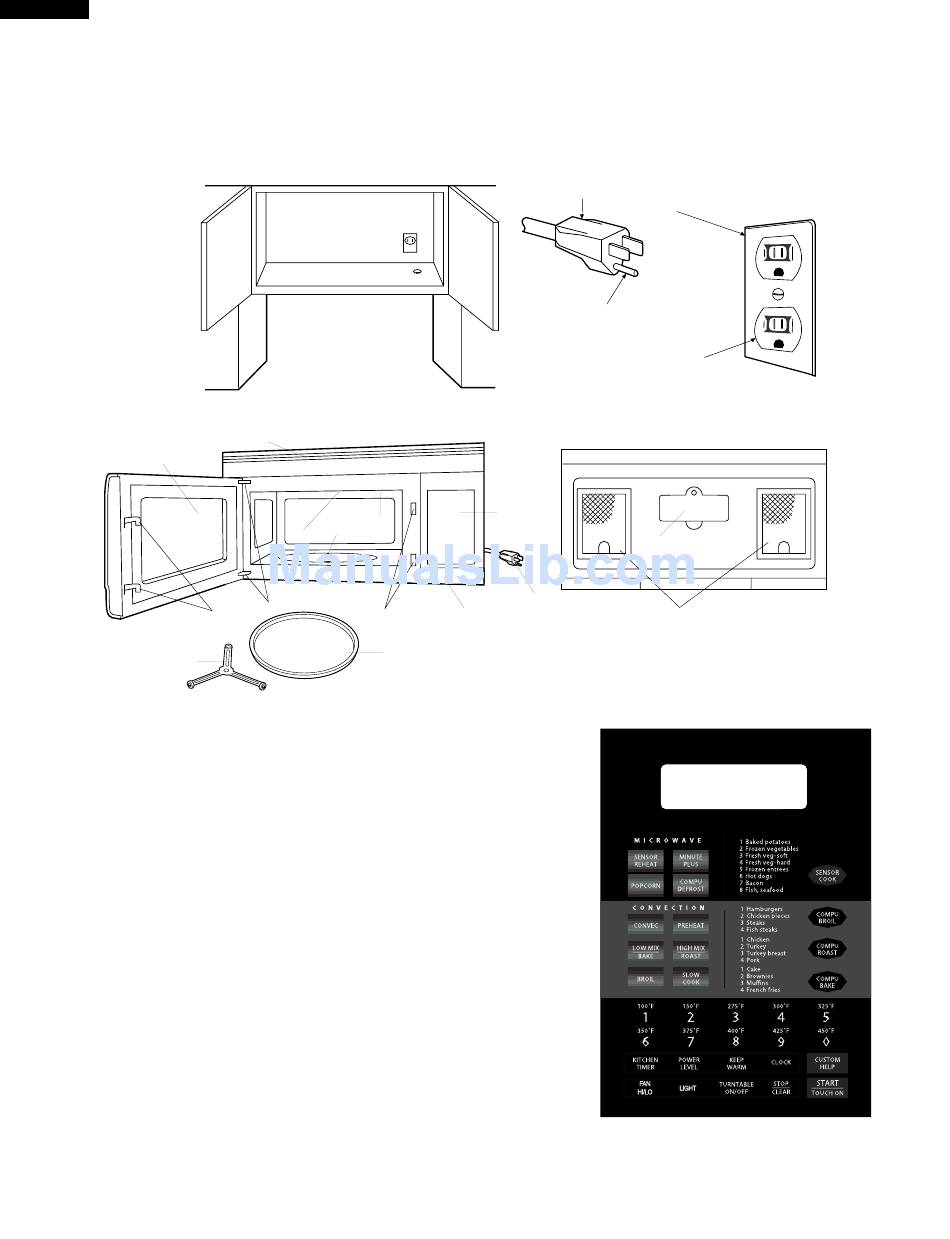

OVEN DIAGRAM

9
5
4
3
2
6
12
3-Pronged Plug
Grounding Pin
3-Pronged Receptacle
8
14
7
NOTE:
Some one-touch cooking features
as "MINUTE PLUS" are disabled af-
ter one minute when the oven is not
used. These features are automati-
cally enabled when the door is
opened and closed or the STOP/
CLEAR pad is pressed.
6
Grounded
Receptacle Box
10
11
