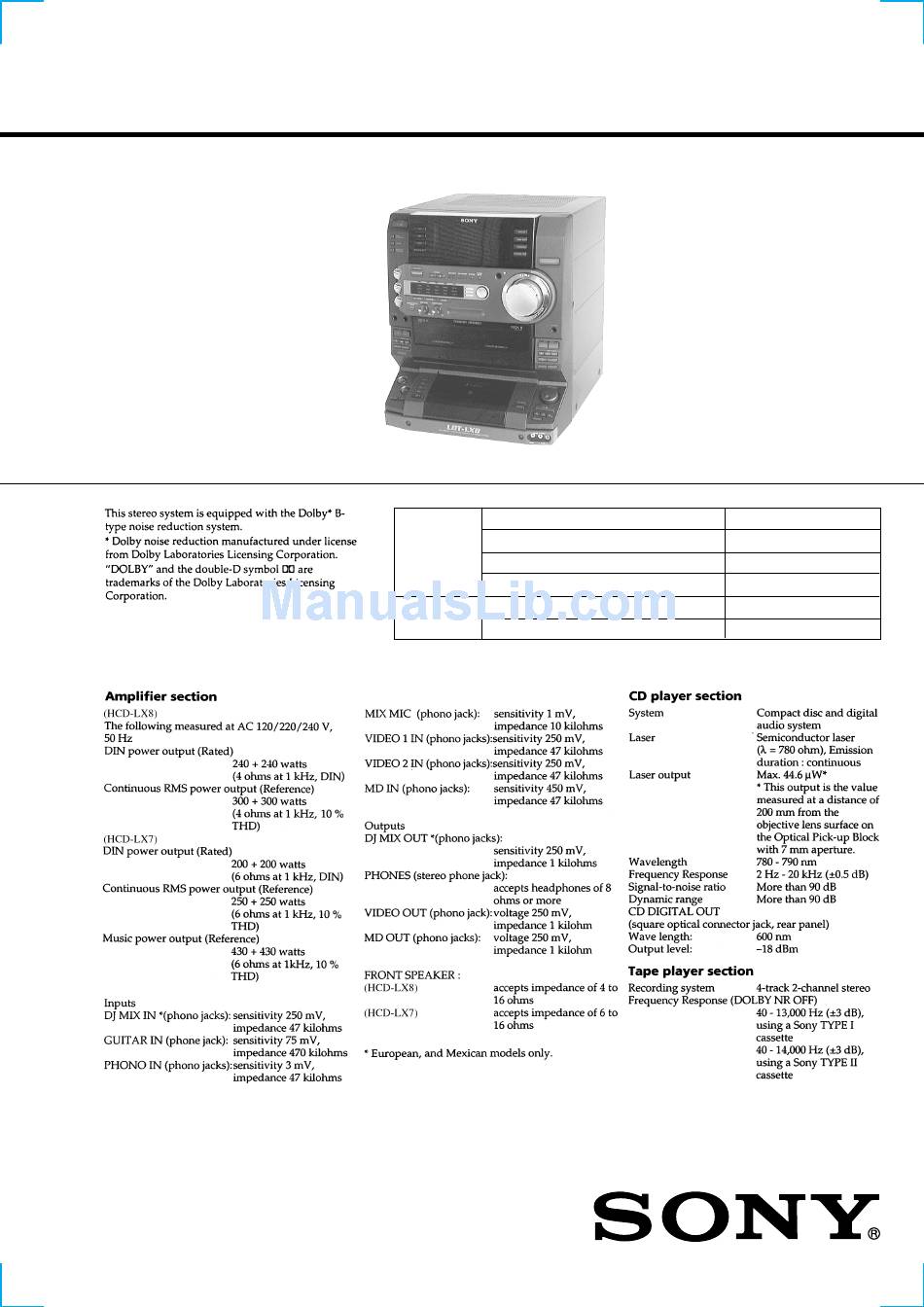

SERVICE MANUAL
HCD-LX7/LX8 is the tuner, deck, CD and
amplifier section in LBT-LX7/LX8.
HCD-LX7/LX8
Photo: HCD-LX8
Model Name Using Similar Mechanism
CD
CD Mechanism Type
SECTION
Base Unit Type
Optical Pick-up Type
Model Name Using Similar Mechanism
TAPE DECK
SECTION
Tape Transport Mechanism Type
SPECIFICATIONS
COMPACT HiFi STEREO SYSTEM
AEP Model
UK Model
HCD-LX7
E Model
Australian Model
HCD-LX8
HCD-DR4/XB500
CDM37M-5BD32L
BU-5BD32L
KSS-213D/Q-NP
HCD-GRX10AV/RX110AV
TCM-230PWR1
— Continued on next page —
