7. Then lift up the control panel assembly and release it
from the oven cavity.
8. Now, the control panel assembly is free.
NOTE: 1. Before attaching a new key unit, remove remaining
adhesive on the control panel frame surfaces
completely with alcohol.
1. Disconnect the power supply cord and remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Remove the control panel assembly from the oven cavity
front flange. Refer to chapter "CONTROL PANEL
ASSEMBLY REMOVAL"
5. Pull the wire leads from the oven lamp socket by
pushing the terminal hole of the oven lamp socket with
the flat type small screw driver.
6. Disconnect the wire leads from the C/T fuse and
magnetron thermal cut-out.
7. Bend the tab of air intake duct holding the oven cavity
flange straight.
8. Remove the one (1) screw holding the air intake duct to
the bending angle of oven cavity.
9. Slide the air intake duct right hand side then release it
POSITIVE LOCK
1. Disconnect the power supply cord, and remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Push the lever of positive lock
5. Pull down on the positive lock
CAUTION: WHEN CONNECTING THE POSITIVE LOCK
CONNECTORS TO THE TERMINALS, CON-
NECT THE POSITIVE LOCK
LEVER FACES YOU.
Removal
1. Disconnect the power supply cord.
2. Remove the turntable and turntable support from the
oven cavity.
3. Turn the oven over.
4. Cut the four (4) bridges holding the turntable motor cover
to the bottom plate with the cutting pliers as shown in
Figure C-3.
CAUTION: DO NOT DROP THE TURNTABLE MOTOR
COVER INTO THE OVEN AFTER CUTTING
THE BRIDGES. BECAUSE IT WILL DAMAGE
THE WIRE LEADS OF THE MOTOR AND IT IS
DIFFICULT TO REMOVE IT OUT OF THE
OVEN.
5. Remove the turntable motor cover from the bottom plate.
6. Disconnect the wire leads from the turntable motor.
OVEN LAMP AND LAMP SOCKET REMOVAL
® CONNECTOR (NO-CASE TYPE) REMOVAL
® connector.
® connector.
®
® SO THAT THE

TURNTABLE MOTOR REMOVAL

2. When attaching the key unit to the control panel
frame, adjust the upper edge and right edge of
the key unit to the correct position of control panel
frame.
3. Stick the key unit firmly to the control panel frame
by rubbing with soft cloth not to scratch.
from the bending angle of oven cavity .
10.Bend the tab of air intake duct holding the oven lamp
socket.
11.Lift up the oven lamp socket.
12.Now, the oven lamp socket is free.
Oven lamp
socket
Terminal
Wire lead
Flate type small
screw driver

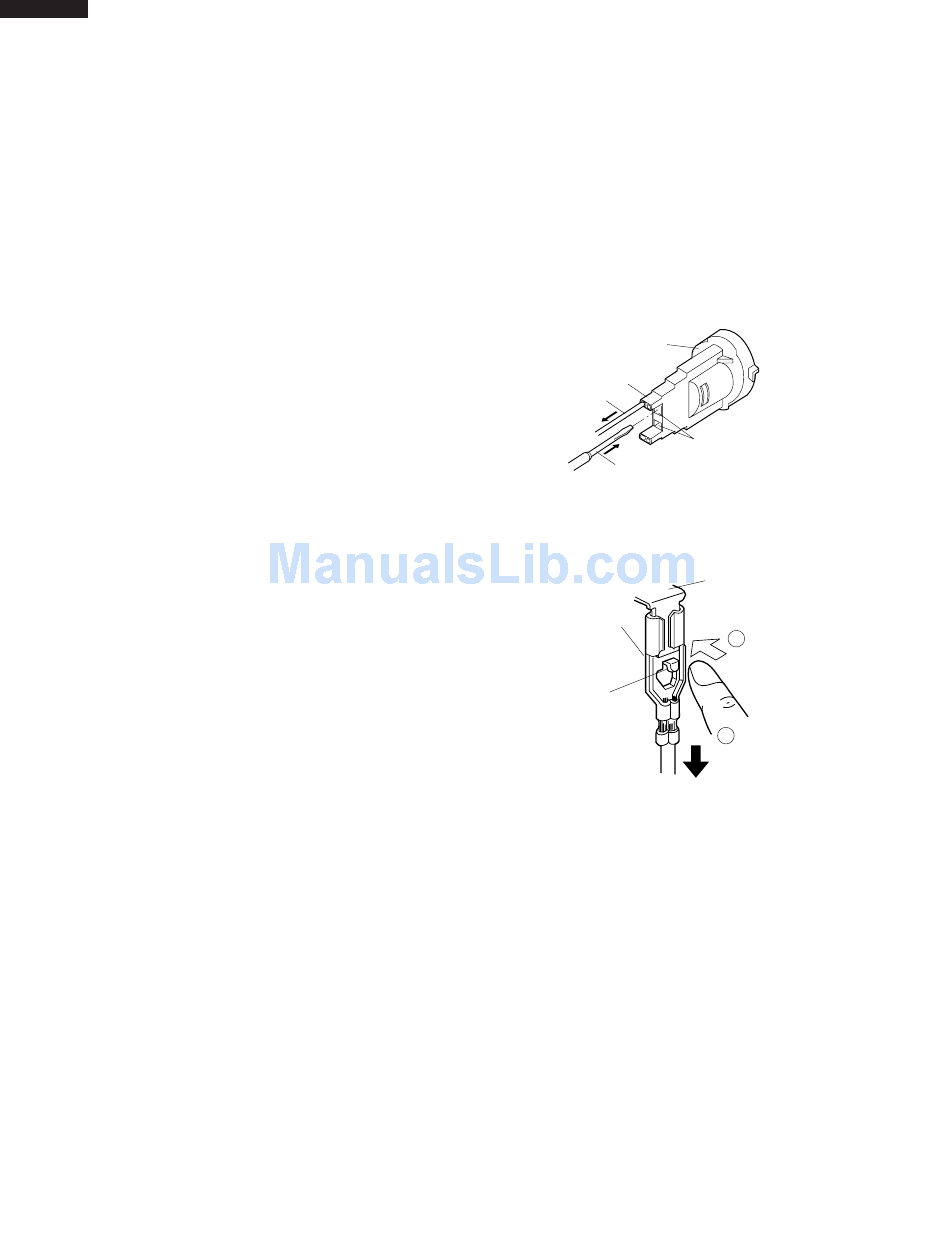

Figure C-1. Oven lamp socket
Positive lock®
connector
Lever
Figure C-2. Positive lock
7. Remove the single (1) screw holding the turntable motor
to the oven cavity.
8. Remove the turntable motor from the oven cavity.
9. Remove the O-ring and washer from the turntable motor.
10.Now, the turntable motor is free.
Reinstallation
1. Remove any sharp edges on the turntable motor cover
and the bottom plate with the cutting pliers.
2. Re-install the O-ring.
3. Apply the grease (Shinetsu silicone grease G-420 of
Sinetsu Chemical Co. Ltd. or Toray Silicone grease SH-
14 of Toray Silicone Co., Ltd.) to the O-ring and the base
of the turntable motor shaft as shown in Figure C-4.
4. Re-install the turntable motor with the O-ring and washer
to the oven cavity with the single (1) screw.
5. Re-connect the wire leads to the turntable motor.
6. Insert the tab of the turntable motor cover into the hole of
22
Terminal hole
Terminal
4
Push
5
Pull down
® connector
