SERVICE MANUAL
Ver 1.0 2003. 12
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 770 - 800 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
+1
20 - 20 000 Hz
dB (measured by JEITA)
–2
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kΩ
Recommended load impedance over 10 kΩ
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 Ω
(Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)*
Optical digital output
(optical output connector)*
Output level: –21 - –15 dBm
Wavelength: 630 - 690 nm at peak level
* European models only
Sony Corporation
9-961-338-01
2003L1678-1
Personal Audio Company
© 2003.12
Published by Sony Engineering Corporation

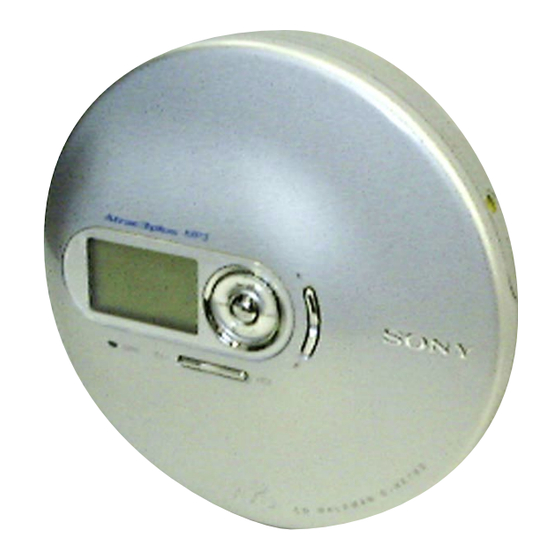

Photo : SILVER
Model Name Using Similar Mechanism D-NE1
CD Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Power requirements
• Two Sony NH-7WMAA rechargeable
batteries: 1.2 V DC × 2
• Two LR6 (size AA) batteries: 1.5 V DC × 2
• AC power adaptor (DC IN 4.5 V jack)
1
Battery life
*
(approx. hours)
When you use the CD player on a flat and stable
surface.
When LIGHT mode and SOUND mode are set to
"OFF."
Playing time varies depending on how the CD
player is used.
When using two NH-7WMAA (charged for about
2
5 hours
*
)
G-PROTECTION
"G-PRO 1"
"G-PRO 2"
Audio CD
25
3
ATRAC CD*
44
4
MP3 CD*
33
D-NE700
Australian Model
Chinese Model
When using two Sony alkaline batteries LR6
(SG) (produced in Japan)
"G-PRO 1"
Audio CD
3
ATRAC CD*
4
MP3 CD*
*1 Measured value by the standard of JEITA (Japan
Electronics and Information Technology
Industries Association)
*2 Charging time varies depending on how the
rechargeable batteries are used.
*3 Recorded at 48 kbps
*4 Recorded at 128 kbps
23
44
33
— Continued on next page —
PORTABLE CD PLAYER
AEP Model
UK Model
E Model
CDM-3325ER2
DAX-25E
G-PROTECTION
"G-PRO 2"
55
50
86
86
70
70

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-NE700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony D-NE700

  • Page 1 CDM-3325ER2 Optical Pick-up Name DAX-25E SPECIFICATIONS System Power requirements When using two Sony alkaline batteries LR6 Compact disc digital audio system • Two Sony NH-7WMAA rechargeable (SG) (produced in Japan) batteries: 1.2 V DC × 2 Laser diode properties • Two LR6 (size AA) batteries: 1.5 V DC × 2...
  • Page 2: Table Of Contents

    D-NE700 TABLE OF CONTENTS Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding 1. SERVICING NOTE ·························································· 4 projecting parts and controls) Approx. 130.3 × 21.0 × 130.3 mm 2. GENERAL × × 5 ·········································································· 6 ⁄ ⁄...
  • Page 3 COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
  • Page 4: Servicing Note

    D-NE700 SECTION 1 SERVICING NOTE BEFORE REPLACING THE OPTICAL PICK-UP BLOCK NOTES ON HANDLING THE OPTICAL PICK-UP Please be sure to check thoroughly the parameters as par the “Optical BLOCK OR BASE UNIT Pick-Up Block Checking Procedures” (Part No.: 9-960-027-11) issued separately before replacing the optical pick-up block.
  • Page 5 D-NE700 SERVICE MODE 2. Operation when the Service Mode is set. When the Service Mode becomes active, following messages are The following confirmation can be performed when the Service displayed onthe remote control LCD. Mode is set. 1. How to set the Service Mode.
  • Page 6: General

    D-NE700 SECTION 2 GENERAL This section is extracted from instruction manual. Locating the controls CD player 1 Display 8 Operation button u: play/pause 2 OPR (operation) lamp .: AMS Color of the lamp changes according to /rewind the type of music source being played.
  • Page 7 D-NE700 Remote control 1 VOL (volume) +/– control 6 Clip 7 HOLD switch Turn to adjust the volume. 2 x (stop) button Slide the switch in the direction of the 3 Jog lever (. u/ENT >) arrow (a yellow mark appears) to disable u (play/pause)/ENT (enter): the buttons on the remote control.
  • Page 8: Disassembly

    D-NE700 SECTION 3 DISASSEMBLY Note : Disassemble the unit in the order as shown below. CABINET (MIDDLE) SECTION UPPER LID ASSY, MAIN BOARD, CD MECHANISM DECK (CDM-3325ER2) SWITCH BOARD TURN TABLE MOTOR ASSY MOTOR ASSY (M902), OPTICAL PICK-UP (DAX-25E) Note : Follow the disassembly procedure in the numerical order given.
  • Page 9: Upper Lid Assy, Main Board, Cd Mechanism Deck (Cdm-3325Er2)

    D-NE700 3-2. UPPER LID ASSY, MAIN BOARD, CD MECHANISM DECK (CDM-3325ER2) three insurators 6 CD mechanism deck (CDM-3325ER2) upper lid assy flexible board (15P) (CN601) MAIN board connector (CN401) connector spacer (CN402) flexible flat cable (20P) (CN2001) spacer 9 Remove the soldering.
  • Page 10: Switch Board

    D-NE700 3-3. SWITCH BOARD six screws lid cover SWITCH board flexible flat cable liquid crystal display panel menu button 6 connector (CN2003) operation button 3-4. TURN TABLE MOTOR ASSY 1 three screws (B1.7 × 4) 2 turn table motor assy...
  • Page 11: Motor Assy (M902)

    D-NE700 3-5. MOTOR ASSY (M902), OPTICAL PICK-UP (DAX-25E) 1 three screws (B1.7 × 4) 2 gear cover 5 feed screw assy 4 gear B 6 sled spring 3 motor assy (sled) (M902) 7 optical pick-up (DAX-25E)
  • Page 12: Electrical Checking

    D-NE700 SECTION 4 ELECTRICAL CHECKING The CD section adjustments are done automatically in this set. RF Level Check In case of operation check, confirm that RF level. Condition: • Hold the set in horizontal state. Precautions for Check Perform check in the order given.
  • Page 13: Diagrams

    D-NE700 SECTION 5 DIAGRAMS NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS • WAVEFORMS IC601 if RFAC IC601 rk XTAO IC801 wk XIN IC403 ef SYNC Note on Printed Wiring Board Note on Schematic Diagram: 100mV/DIV, 400ns/DIV 1V/DIV, 20ns/DIV 1V/DIV, 40ns/DIV 1V/DIV, 2us/DIV •...
  • Page 14: Block Diagram

    D-NE700 5-1. BLOCK DIAGRAM AEP, UK, EE IC601 RF AMP,SERVO,DSP, Q303, 803 D/A CONV,D-RAM CONT J302 VCC3 LINE OUT DOUT (OPTICAL) IC301 OPTICAL PICK-UP HEADPHONE AMP EXCEPT AEP, UK, EE DAX-25E AOUT1 L-IN LOUT J302 DETECTOR RFAC ROUT LINE OUT...
  • Page 15: Printed Wiring Board

    D-NE700 5-2. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – • : Uses unleaded solder. (SIDE A) VDR309 VDR304 EXCEPT AEP, UK, EE IC702 IC603 AEP, UK, EE IC301 • Semiconductor Location IC701 Ref. No. Location D302 D306 D401...
  • Page 16 D-NE700 5-3. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) – • : Uses unleaded solder. (SIDE B) C315 C315 C311 D307 D308 SWITCH BOARD C314 CN2002 (Page 21) R499 IC601 R458 VDR804 • Semiconductor IC403 VDR405 R849 Location R402 C603 Ref.
  • Page 17 D-NE700 5-4. SCHEMATIC DIAGRAMS – MAIN BOARD (1/4) – • See page 25 for IC PIN FUNCTION DESCRIPTIONS. R302 C621 R612 47 6.3V FB601 C602 C604 C619 22 6.3V C627 CN601 X601 R609 TP744 16.934MHz R211 TP745 R606 TP746 L602 C628 0.01...
  • Page 18 D-NE700 5-5. SCHEMATIC DIAGRAMS – MAIN BOARD (2/4) – AEP,UK,EE Q302 Q303 BCR119W-GEG-E6327 DTA143EUA-T106 AEP,UK,EE R304 C313 J302 R318 C310 1 D302 R307 R309 MA2S111-TX R108 C304 AP307 100k 220k C207 TP308 FB301 R202 22k R106 FB102 AP102 C306 6.3V...
  • Page 19 D-NE700 5-6. SCHEMATIC DIAGRAMS – MAIN BOARD (3/4) – (Page 17) (Page 18) R452 D421 220k MA111-TX R415 470k D422 MA111-TX R453 C416 CN401 TP491 C435 L406 L409 R424 L411 6.3V TP492 TP493 C438 TP494 CN402 C403 470p R416 Q408...
  • Page 20 D-NE700 5-7. SCHEMATIC DIAGRAMS – MAIN BOARD (4/4) – • See page 28 for IC PIN FUNCTION DESCRIPTIONS. (Page 18) FB802 S806 FB801 R805 4.7k R802 R869 R942 100k S809 CN2001 R803 2.2k R806 R804 100k R814 1k C897 Q804...
  • Page 21: Main Board (Side A)

    D-NE700 5-8. PRINTED WIRING BOARD – SWITCH BOARD – • : Uses unleaded solder. SWITCH BOARD MAIN BOARD CN2001 (Page 16) LIQUID CRYSTAL DISPLAY /CHG DSPL/MENU 1-860-722- (11)
  • Page 22: Main Board (3/4)

    D-NE700 5-9. SCHEMATIC DIAGRAMS – SWITCH BOARD – SWITCH BOARD LIQUID CRYSTAL DISPLAY MAIN BOARD (4/4) CN2001 (Page 20) DSPL/MENU /CHG...
  • Page 23: Ic Block Diagrams

    D-NE700 • IC BLOCK DIAGRAMS IC301 AN17020B-E1 BEEP MUTE HP/Line...
  • Page 24 D-NE700 IC701 CXR710160-207R 64 63 62 61 60 59 58 57 56 55 52 51 50 49 LRCKI PE3/RxD1 BCKI PE2/TxD1 VDIOCD0 PE1/RxD0 PCMDI PE0/TxD0 DVDD4 TEST8 TEST7 DCDD0 DVSS0 DVIO0 VDIOCD1 PF4/XRDE P13/BCKO P12/LRCKO INTERFACE P10/PCMDO CD-ROM INTERFACE DVDD2...
  • Page 25: Ic Pin Function Descriptions

    D-NE700 5-10. IC PIN FUNCTION DESCRIPTIONS • IC601 CXD3039AR (RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER) Pin No. Pin Name Description XRAS Row address strobe signal output to the D-RAM Data input enable signal output to the D-RAM...
  • Page 26 D-NE700 Pin No. Pin Name Description 53, 54 AVSS1, AVSS2 — Ground terminal (analog system) VREFR R-ch reference voltage output terminal AOUT2 R-ch analog audio signal output AVDD2 — Power supply terminal (analog system) TES1 Input terminal for the test (normally: fixed at “L”) TEST Input terminal for the test (normally: fixed at “L”)
  • Page 27 D-NE700 Pin No. Pin Name Description SFDR Sled servo drive signal (+) output to the IC403 SSTP Disc inner position detection signal input terminal Not used Spindle motor drive signal output to the spindle motor driver Spindle motor servo control signal output to the spindle motor driver C176 176.4 kHz clock output to the power control and spindle motor driver...
  • Page 28 D-NE700 • IC801 TMP91CW28FG-4PNO (SYSTEM CONTROLLER) Pin No. Pin Name Description — Reference voltage terminal (A/D converter) — Ground terminal (A/D converter) VCPU — Power supply terminal (A/D converter) XRST_O Reset signal output to the DSP (IC601) PWM_O Not used (open)
  • Page 29 D-NE700 Pin No. Pin Name Description BAT_VCC_ON_O Battery power switch control signal output DTS_RST_O Not used (open) XKRESET_O Reset signal output to the MP3 decoder (IC701) XCS_O Not used (open) — Ground terminal XNMI_I Not used (fixed at “H”) VCPU —...
  • Page 30: Exploded Views

    D-NE700 SECTION 6 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • Color Indication of Appearance Parts Example: The components identified by mark 0 or have some differences from the original one. KNOB, BALANCE (WHITE) . . . (RED) dotted line with mark 0 are critical for safety.
  • Page 31: Upper Lid Block Section

    D-NE700 6-2. UPPER LID BLOCK SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks LID UPPER SUB ASSY (SILVER) * 59 A-4541-423-A SWITCH BOARD, COMPLETE LID UPPER SUB ASSY (BLUE) 1-805-435-11 DISPLAY PANEL, LIQUID CRYSTAL LID UPPER SUB ASSY (RED)
  • Page 32: Cabinet (Upper) Block Section

    D-NE700 6-3. CABINET (UPPER) BLOCK SECTION not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 3-259-122-11 KNOB, OPEN (SILVER) 3-259-129-01 LEVER (R), LOCK 3-259-122-21 KNOB, OPEN (BLUE) X-3384-223-1 CABINET MIDDLE SUB ASSY (SILVER) 3-259-122-31 KNOB, OPEN (RED)
  • Page 33: Cd Mechanism Deck Section

    D-NE700 6-4. CD MECHANISM DECK SECTION (CDM-3325ER2) M902 M901 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 3-318-203-61 SCREW (B1.7X4), TAPPING 3-221-475-01 SHAFT, STANDARD 3-221-474-01 SPRING, SLED 3-221-473-01 COVER, GEAR 3-221-472-02 CHASSIS 3-221-268-01 GEAR (B) 0 154...
  • Page 34: Electrical Parts List

    D-NE700 SECTION 7 MAIN ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts • COILS • SEMICONDUCTORS list may be different from the parts specified in uH: H In each case, u: , for example: the diagrams or the components used on the set.
  • Page 35 D-NE700 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C623 1-125-837-91 CERAMIC CHIP 6.3V D422 8-719-404-50 DIODE MA111-TX C624 1-115-156-11 CERAMIC CHIP D801 6-500-473-01 DIODE MA4SD0100LS0 C627 1-115-156-11 CERAMIC CHIP C628 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V...
  • Page 36 D-NE700 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Q408 6-550-760-01 TRANSISTOR 2SA1363-T111-1E R438 1-218-965-11 RES-CHIP 1/16W Q601 8-729-054-79 TRANSISTOR 2SB167900LSO R440 1-218-989-11 RES-CHIP 1/16W Q801 8-729-427-72 TRANSISTOR XP4501-TXE R448 1-216-295-91 SHORT CHIP Q803 8-729-929-02 TRANSISTOR...
  • Page 37 D-NE700 MAIN SWITCH Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R722 1-218-945-11 RES-CHIP 1/16W VDR406 1-801-862-11 VARISTOR, CHIP (1608) VDR601 1-801-862-11 VARISTOR, CHIP (1608) R728 1-218-977-11 RES-CHIP 100K 1/16W VDR602 1-801-862-11 VARISTOR, CHIP (1608) R731...
  • Page 38 D-NE700 SWITCH Ref. No. Part No. Description Remarks S2008 1-786-650-21 SWITCH, TACTILE (f) S2009 1-786-650-21 SWITCH, TACTILE (u) S2010 1-786-650-21 SWITCH, TACTILE (x/CHG) S2011 1-786-650-21 SWITCH, TACTILE (.) ************************************************************ MISCELLANEOUS ************** 1-827-812-11 CABLE, FLEXIBLE FLAT (20 CORE) 1-805-435-11 DISPLAY PANEL, LIQUID CRYSTAL...
  • Page 39 D-NE700 MEMO...
  • Page 40 D-NE700 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision...
